This machine works smoothly and continuously, and is suitable for the automatic filling and sealing of various heating powders, powders and powder materials.
Fully automatic production, color mark tracking, and production of various shapes.
The equipment can configure a lowerer according to different types of powders.
Intermittent sealing is better to ensure the aesthetics of the seal and avoid leakage.
The machine is easy to operate, PLC touch screen, according to the packaging materials, product thickness and length to adjust the temperature and speed of packaging.
A servo motor. With light, electrical, and gas control, the fault can self-diagnose and display clearly, and the operating system language can be used in Siban.
Dutch, French, Korean, Russian, Japanese, Arabic and other local languages.
The whole machine is covered with stainless steel, which has good appearance and is easy to clean and durable, and the cost of operation and maintenance is low.
The servo uses a camwheel mode to ensure sealing effect and stability.

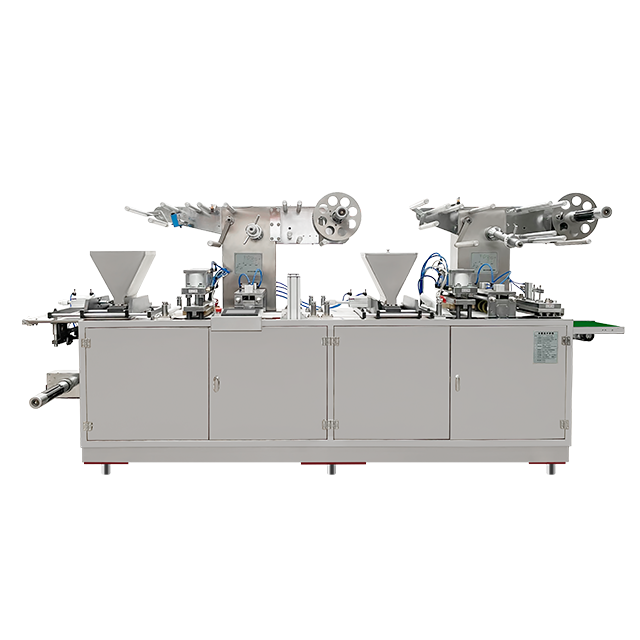

Model specifications | HY-330 A double-additive warm patch machine |
Use the specified packaging materials and specifications. | HY-330S type non-woven fabric adhesive backing tape |
Model specifications | Length: 4200 width: 900 height: 1600 |
Packaging speed | 30punches per minute, with 3 pieces per punch. |
The maximum packaging specification. | 330mm in length and 140mm in width (the molded dimensions and shapes can be customized; this specification is for warmers) |
Minimum material specifications | It is 60 mm long and 60 mm wide (the formed dimensions and shapes can be customized; this specification is for mini stickers). |
Rated voltage V. Power frequency modulation capability | NB330 AC380v. 4. 5KW 0-50Hz |
Compressed air pressure | 0. 5-0. 8 Mpa0 |
Compressed air consumption | >0.36 （m3/h） |
Noise (dB) Machine weight (kg) | Low noise level. 60-70 dB NB330 1500KG |
Ability to automatically control production processes | Measuring, bagging, and sealing materials |
It meets the product standards. | GMP standard, packaging machine enterprise standard, ISO9001: 2000 quality system certification, patent certificate, export to EU CE certification |
