Suitable for thermal shrink packaging in software, food, cosmetics, printing, pharmaceutical, flooring, ceramics, beverages, hardware and other industries.
This machine works smoothly and continuously, and is suitable for various masks, medical supplies, sanitary products, food and other product bags and seals.
Completely automatic bag packing, photoelectric correcting, no margin, faulty forming.
The device can be configured by different types of loaders.
The use of imported Japanese Panasonic PLC, accuracy and accuracy to improve the stability of the equipment.

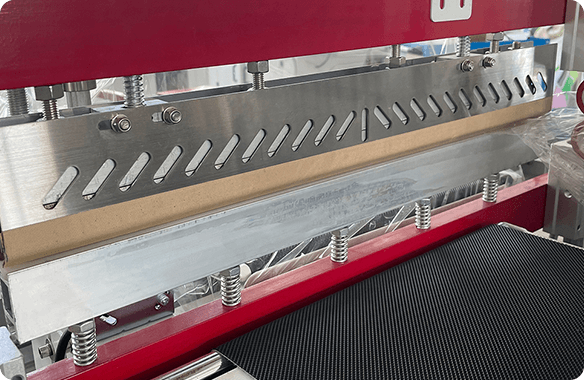

Intermittent sealing is better to ensure the aesthetics of the seal and avoid leakage.
The whole machine is covered with stainless steel, which makes it good looking, easy to clean and durable. Running and maintenance costs are low.

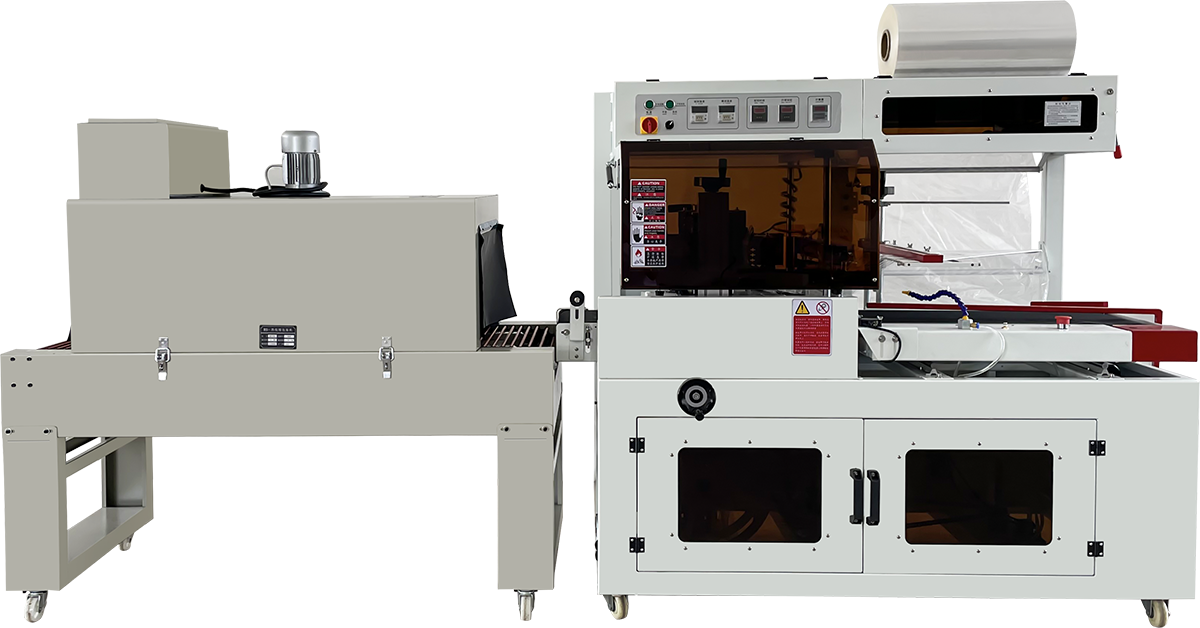

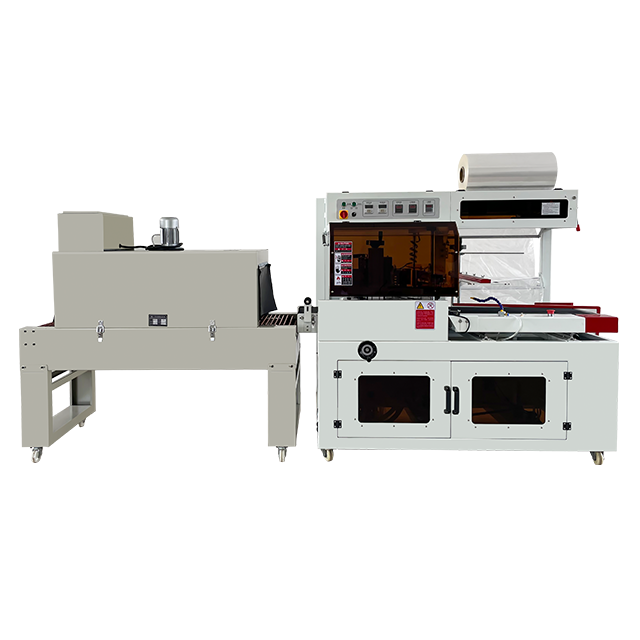

| HY450 Shrink Machine |
Production speed | 0-15 meters per minute |
Type of bag packaging | Thermal shrinkage |
Packaging dimensions | Length (length plus height ≤ 550MM) and Width (width plus height ≤ 450MM) |
Formula for calculating the width of a thin film | The sum of the actual product width and height plus 120mm equals the film width. |
The width of the packaging film | ≤550mm |
The outer diameter of the packaging film | ≤290mm |
Material of the packaging film | POF folded film |
The height of machine operation | 750-850mm |
Total power | 1.5KW |
Type of power source | 220kw50/60HZ |
The weight of the machine | 300kgs |
Machine dimensions | 1620x880x1470mm (length x width x height) |
Model specifications | HY-4522 Shrinkage Furnace |
Production speed | 0-15 meters per minute |
Type of bag packaging | Thermal shrinkage |
Material of the packaging film | POF folded film |
The height of machine operation | 750-850mm |
Total power | 9.6KW |
Type of power source | 380kw, 50/60HZ, three-phase |
The weight of the machine | 200kgs |
Machine dimensions | 1910x680x1330mm (length x width x height), 1480*450*230 for the furnace channel |
Model specifications
