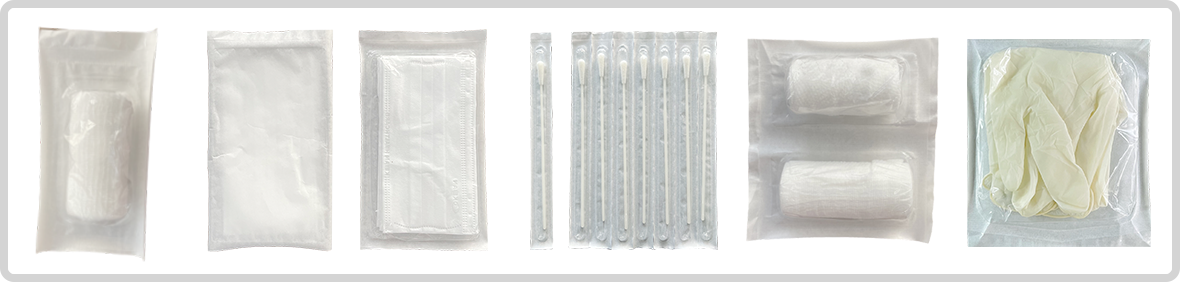

1. This machine operates smoothly and continuously, suitable for various mask medical supplies, hygiene products, food and other product sets Bag sealing.
2. Fully automatic bagging, photoelectric correction, no burrs, fault forming.
3. The equipment can be configured with feeders according to different types.
4. Adopting Panasonic PLC imported from Japan, the accuracy is improved and the equipment stability is high.
5. Intermittent sealing is better to ensure the aesthetic appearance of the seal and avoid leakage.

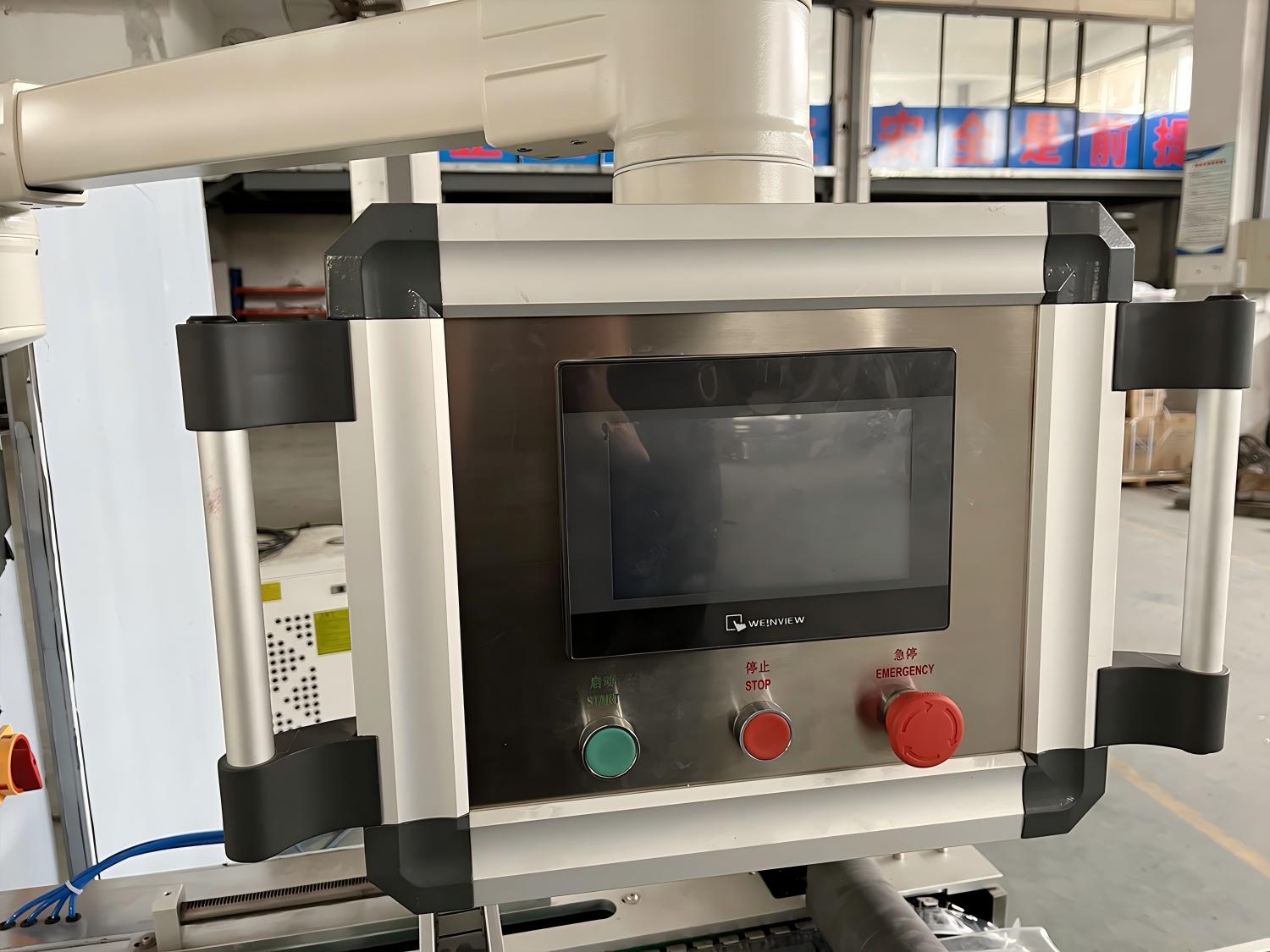

6. This machine is easy to operate, with a PLC touch screen that can adjust the packaging temperature according to the packaging material, product thickness, and length.
7. The whole machine is covered with stainless steel, which has a good appearance and is also easy to clean and durable. Low operation and maintenance costs.
8. Intelligent PLC temperature control.
9. Automatic alarm reminders for the required quantity, automatic batching and stacking of the required quantity.
10. Touch screen can set the langauge you want.
| Quantity: | |
|---|---|
1. This machine operates smoothly and continuously, suitable for various mask medical supplies, hygiene products, food and other product sets Bag sealing.
2. Fully automatic bagging, photoelectric correction, no burrs, fault forming.
3. The equipment can be configured with feeders according to different types.
4. Adopting Panasonic PLC imported from Japan, the accuracy is improved and the equipment stability is high.
5. Intermittent sealing is better to ensure the aesthetic appearance of the seal and avoid leakage.
6. This machine is easy to operate, with a PLC touch screen that can adjust the packaging temperature according to the packaging material, product thickness, and length.
7. The whole machine is covered with stainless steel, which has a good appearance and is also easy to clean and durable. Low operation and maintenance costs.
8. Intelligent PLC temperature control.
9. Automatic alarm reminders for the required quantity, automatic batching and stacking of the required quantity.
10. Touch screen can set the langauge you want
Model specifications | Vacuumize Stretching Film Packaging Machine |
Production speed | 4-7 second/min |
Packing Type | 4 side sealing |
Packing Size | (L)5-400mm(W)5-300mm（H）1-60mm |
Formula for calculating film width | Based on the mold decision |
Formula for calculating film length | Based on the mold decision |
Film Width | ≤435mm |
Film Outer Diameter | ≤400mm |
Film Material | PEPE+PET |
Pressure | 6Mpa |
Machine operation height | 930mm |
Total power | 14.5KW |
Power supply type | 380V50/60HZthree-phase |
Machine Weigh | 2600kg |
Machine Size | 6520x1060x1720mm(LxWxH) |
