With its fully automated operation, this machine integrates filling, sealing, and cutting functions, ensuring smooth and continuous production that meets the demands of small to large-scale manufacturing. Crafted with a stainless steel casing, it not only boasts a sleek appearance but also offers durability, easy maintenance, and cost-effective operation—making it a top choice for pharmaceutical, healthcare, and herbal product manufacturers. Whether handling heat-sensitive powders, medicinal powders, or other fine powder materials, this machine delivers reliable and efficient packaging results.

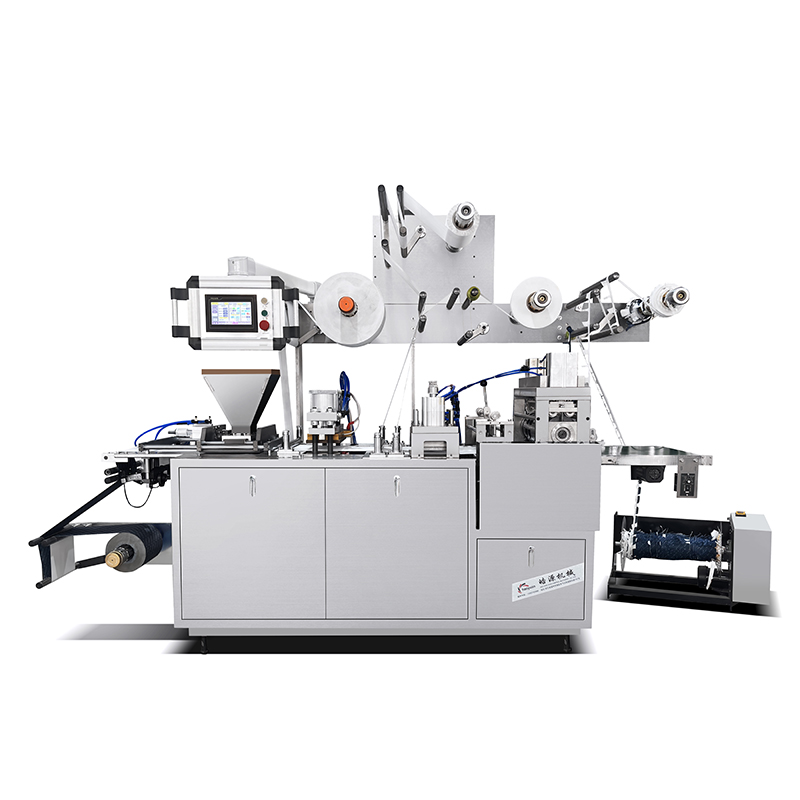

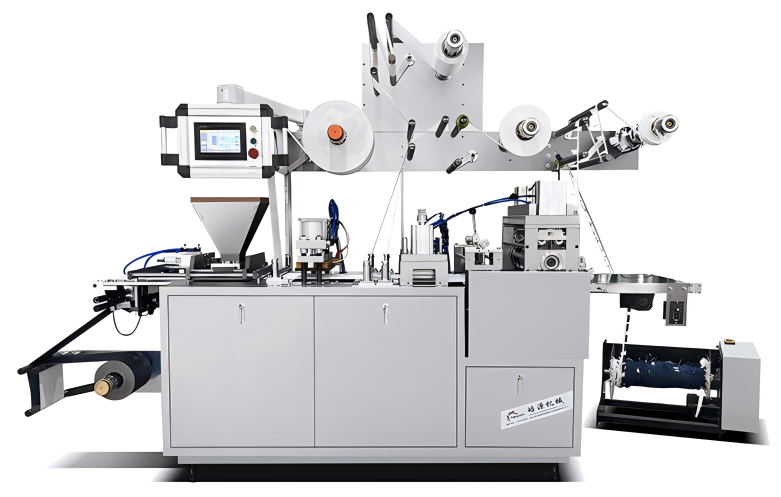

This Automatic Knee Patch Packaging Machine delivers impressive performance with a production speed of 20-35 packages per minute, balancing efficiency and precision. It offers fully customizable packaging sizes—both maximum and minimum dimensions can be tailored to meet specific product requirements. The machine operates with a compressed air supply of 0.5-0.8pa and uses compound materials for packaging, ensuring compatibility with various powder protection needs. Its functional scope includes filling, filling and packaging, bundling, measurement, and other auxiliary tasks. For mold cooling, it requires tap water or circulating water at a rate of 60L/H. The total power consumption is 5.5KW with a voltage of 380V, providing sufficient energy for continuous operation. In terms of physical dimensions, the machine measures 4100mm long × 950mm wide × 2100mm high and weighs approximately 2,000 kilograms, requiring adequate space in production facilities.
Model specifications | Knee-level packaging machine |
Production speed | 20-35 per minute |
Maximum packaging size | custom-made |
Minimum packaging size | custom-made |
compressed air | 0.5-0.8pa |
Packaging | Compound material |
Material type | powder |
function | Filling, filling and packaging, bundling, measurement, other |
Mold cooling | Tap water or circulating water: 60L/H |
Total power of the power source | 5.5KW、380V |
Physical dimensions | 4100mm long x 950mm wide x 2100mm high |
Machine weight | Approximately 2,000 kilograms |
Engineered for stable performance, the machine operates seamlessly without interruptions, enabling non-stop filling, sealing, and cutting of various powder materials. This continuous workflow significantly boosts production efficiency and reduces downtime, perfect for high-volume production needs.
Equipped with advanced color-coded tracking technology, the machine achieves full automation throughout the packaging process. It can also manufacture irregularly shaped packages, providing flexibility to meet diverse product design requirements and stand out in the market.

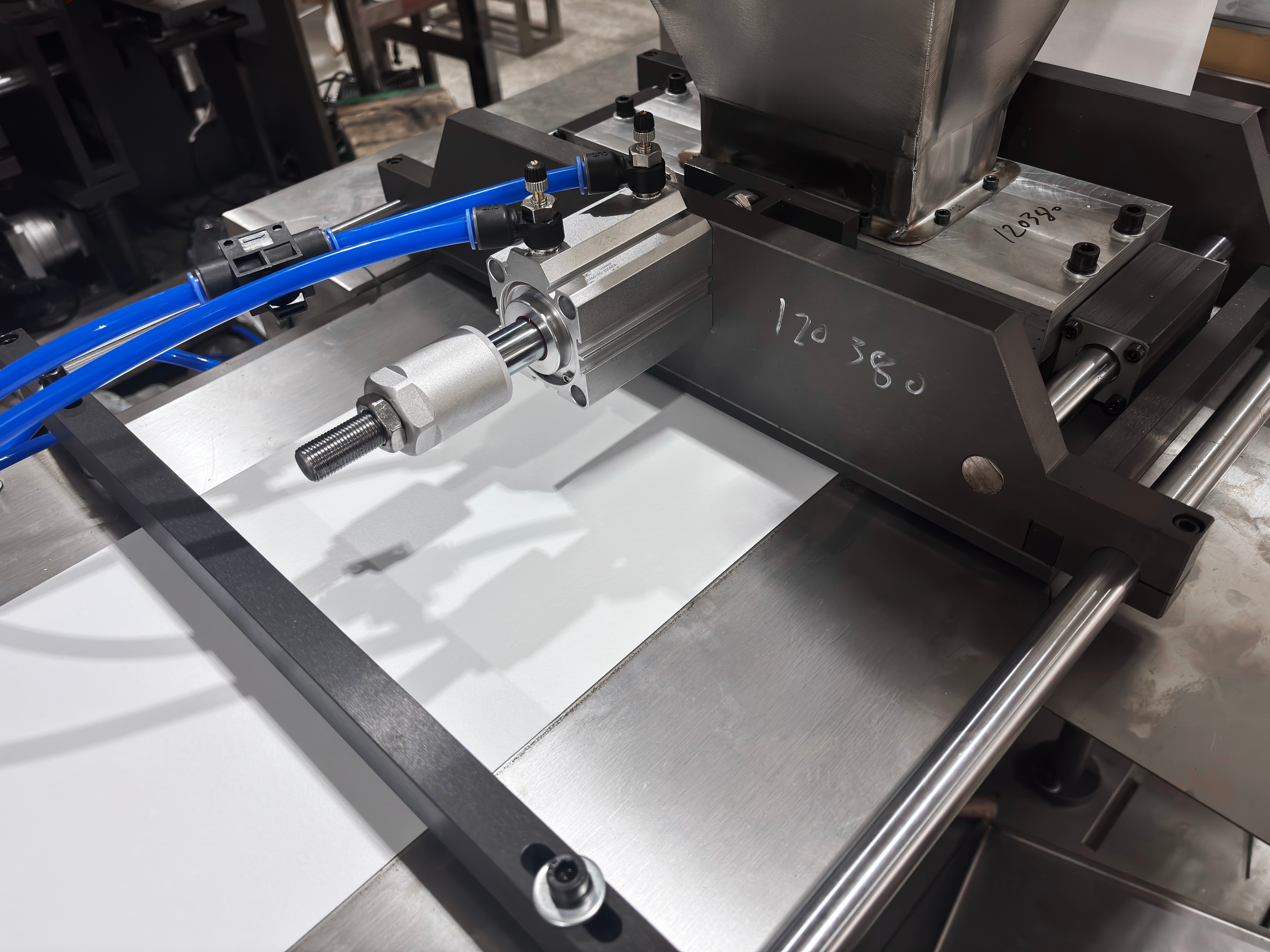

To adapt to different material specifications, the equipment supports configuration with various types of powder feeders. This customization ensures precise feeding and filling for different powder consistencies, from fine medicinal powders to heat-sensitive formulations.

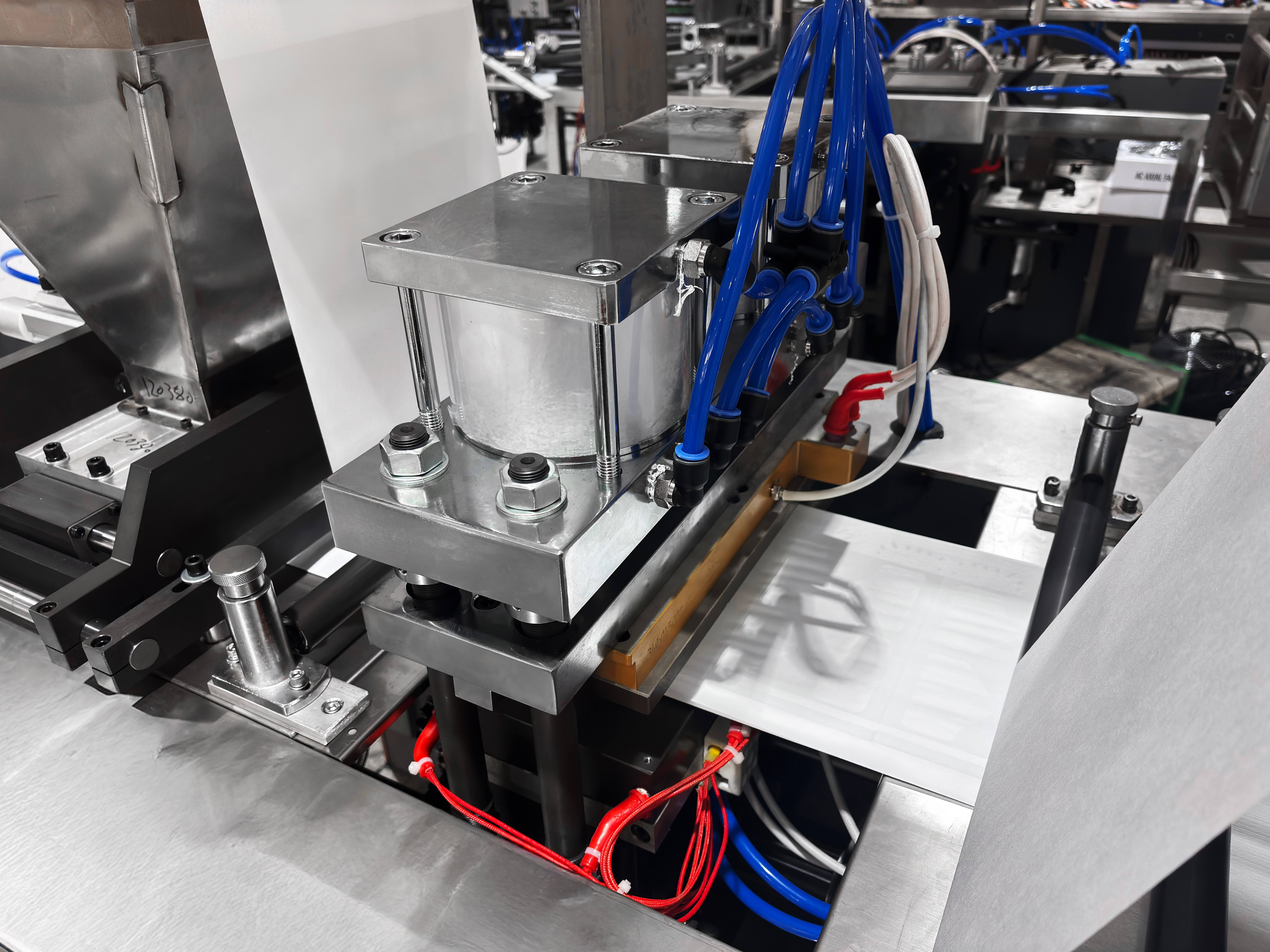

The improved intermittent sealing mechanism guarantees aesthetically pleasing closures while effectively preventing leakage. This not only enhances the product’s visual appeal but also ensures product quality and shelf life by keeping powders intact and protected.

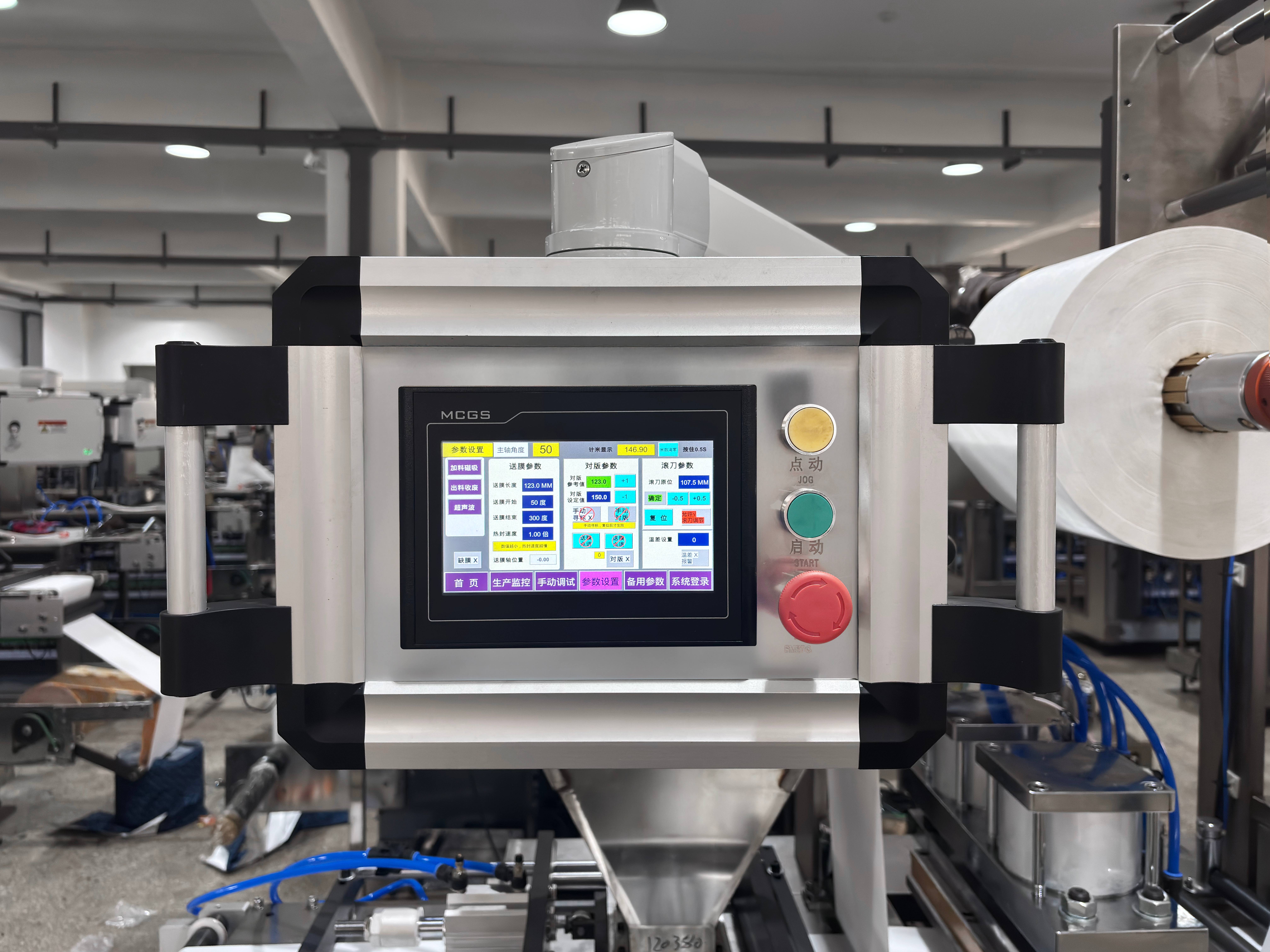

Featuring a PLC touchscreen interface, the machine allows easy adjustment of packaging temperature and speed based on material type, product thickness, and length. Controlled by a servo motor through photoelectric and pneumatic systems, it includes self-diagnostic error detection with clear displays for quick troubleshooting. Additionally, the system supports multiple languages (Spanish, French, Korean, Russian, Japanese, Arabic, etc.), catering to global users.
Constructed with a stainless steel casing, the machine offers corrosion resistance, easy cleaning, and low operational costs. Its robust build ensures long-term reliability, reducing maintenance frequency and associated expenses.
The servo system incorporates a cam mechanism that enhances sealing effectiveness and operational stability. This precision engineering ensures consistent sealing quality across every package, minimizing defects and improving overall production yield.
The Automatic Knee Patch Packaging Machine is highly versatile and widely applicable in industries focused on powder-based knee care products. Key applications include:

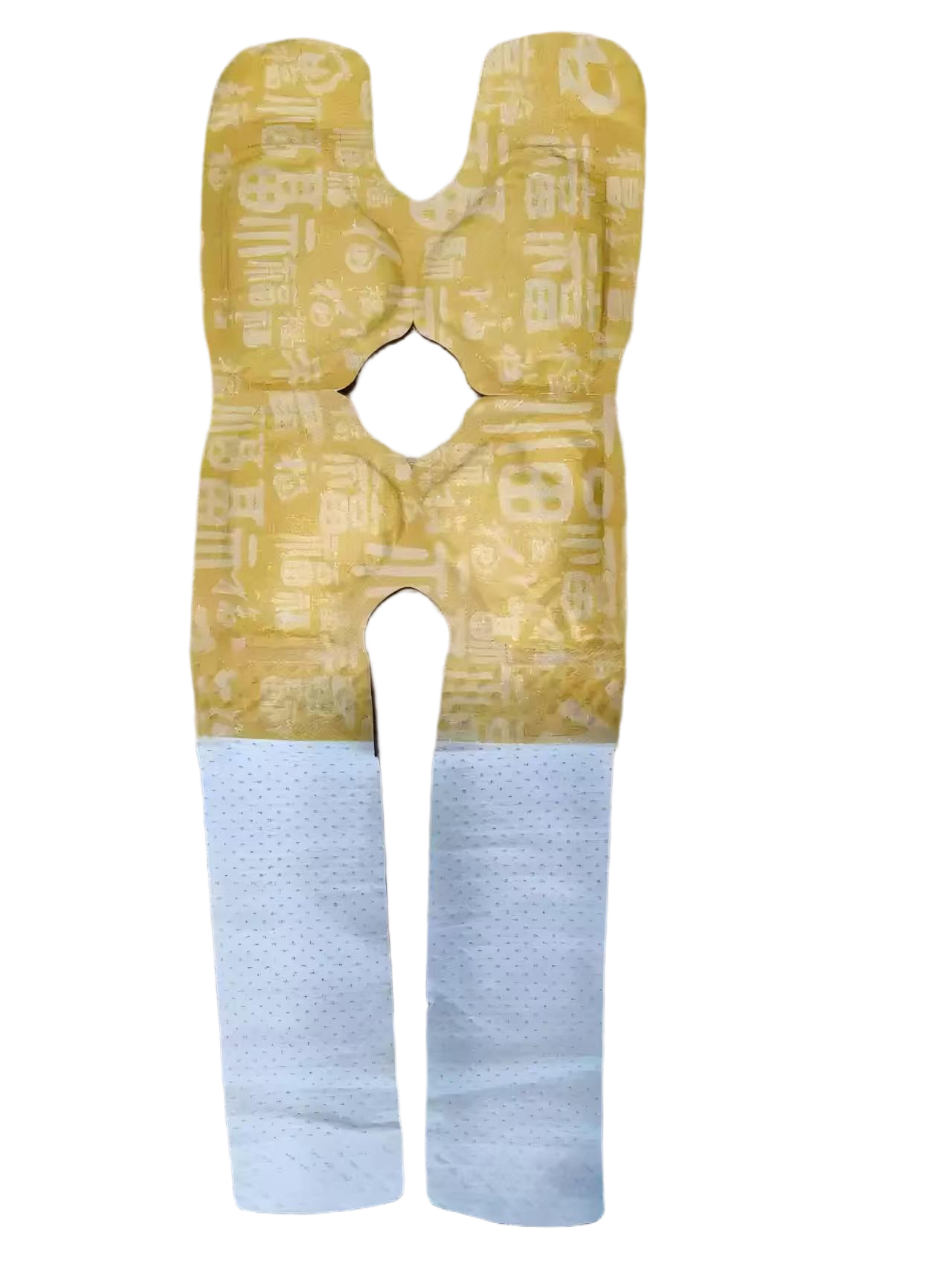

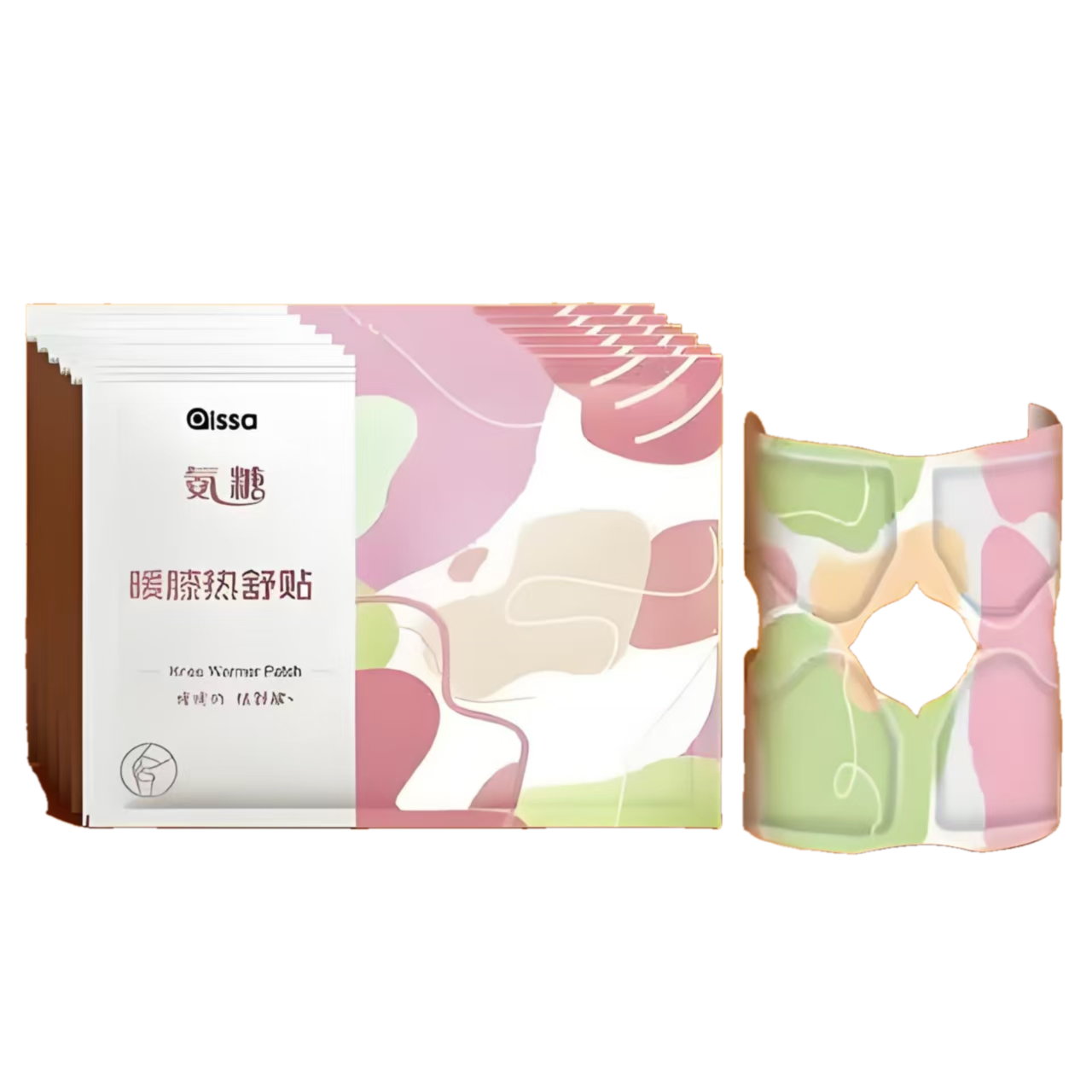

Packaging of medicinal powder knee patches, such as traditional Chinese medicine powder knee pads.

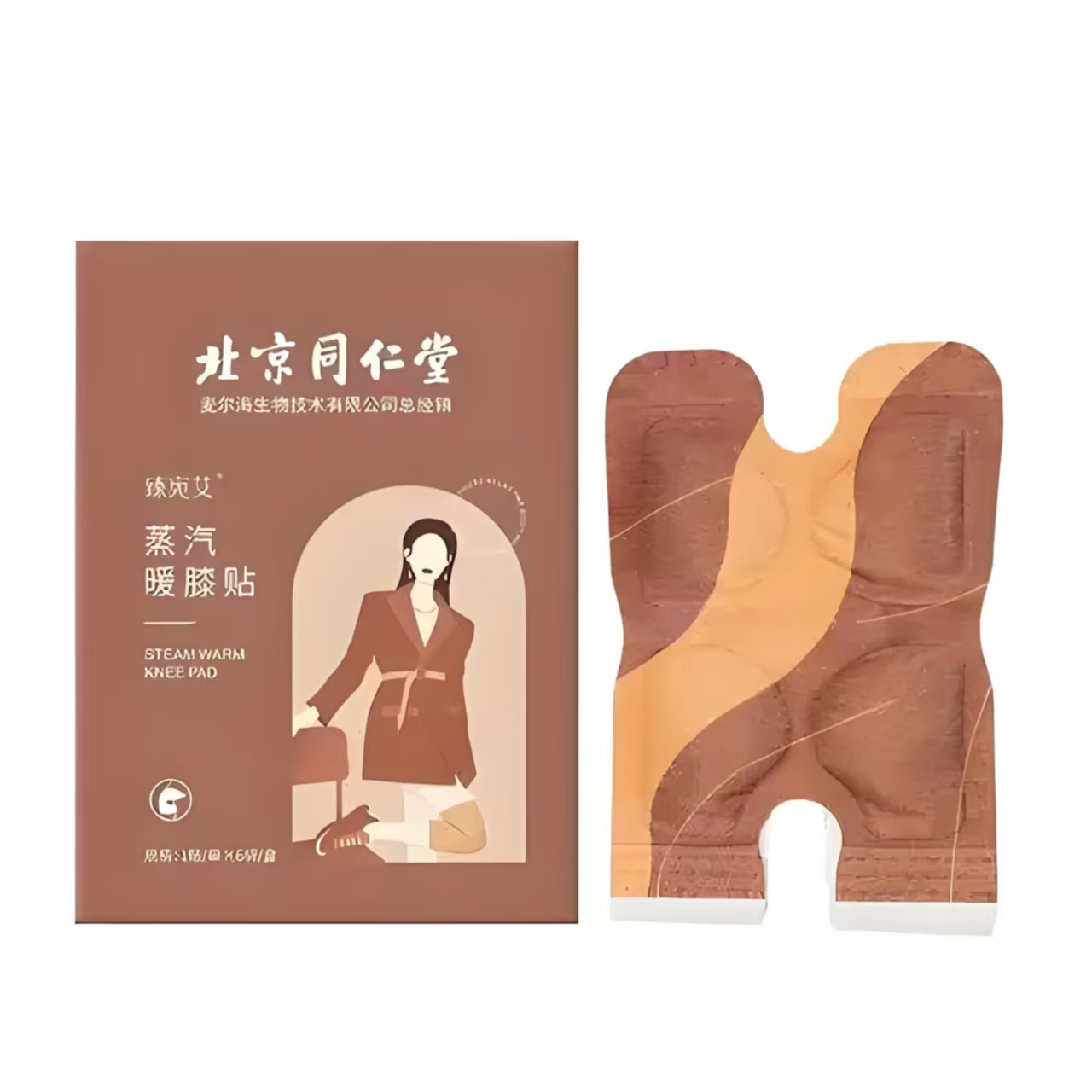

Sealing and cutting of heat-sensitive powder-based warm knee patches (e.g., steam warm knee pads).
Filling and packaging of herbal powder knee care products, meeting the needs of natural healthcare brands.

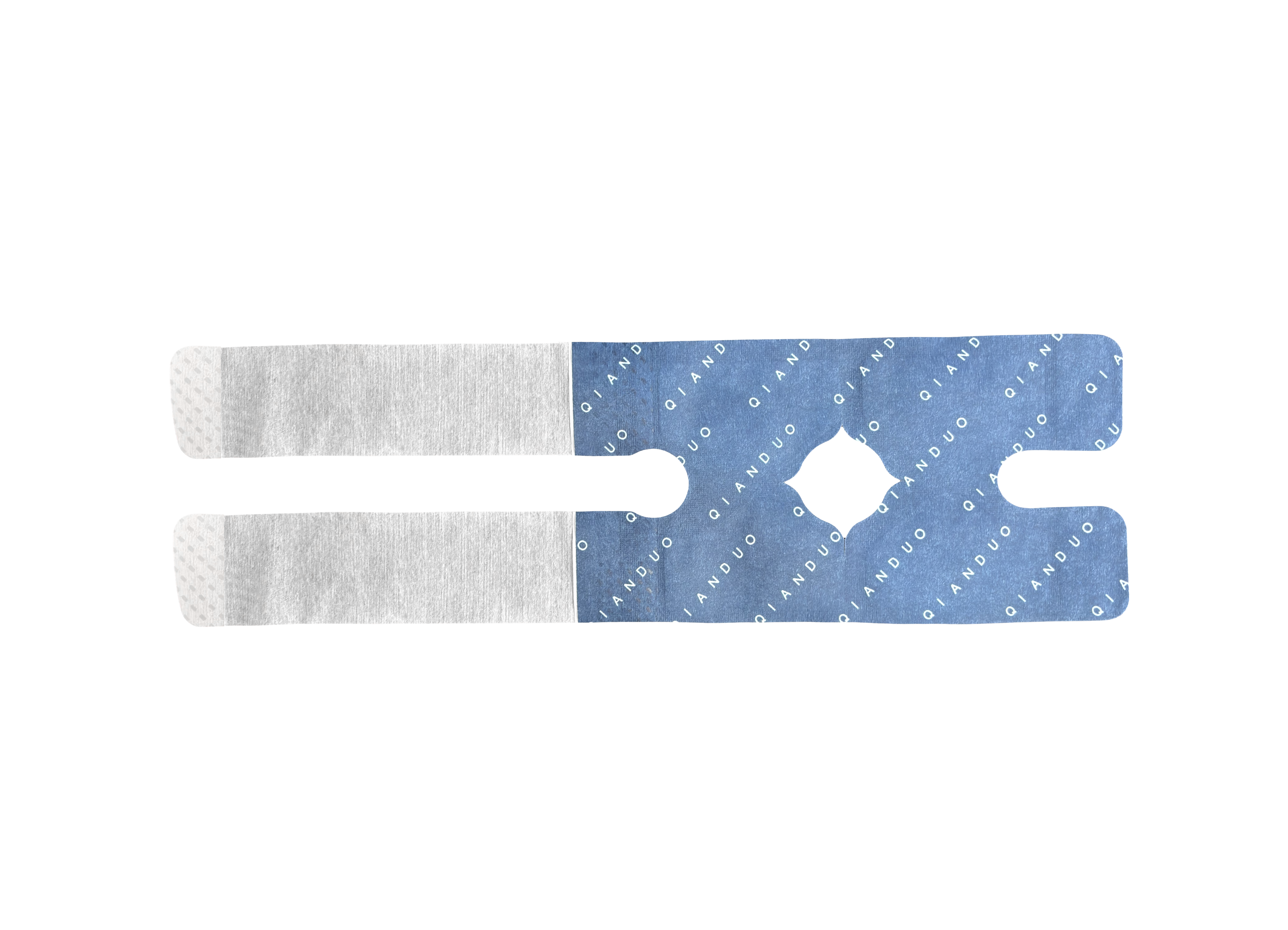

Production of custom-shaped powder knee patches for specialized markets, leveraging the machine’s irregular shape manufacturing capability.
Packaging of nutritional powder knee care supplements, ensuring precise measurement and leak-proof sealing.


The machine is specifically designed for powder materials, including heat-sensitive powders, medicinal powders, herbal powders, and other fine powder formulations suitable for knee patch products. It supports compound packaging materials to ensure optimal protection for different powder types.
Yes, both the maximum and minimum packaging sizes are customizable. You can adjust the dimensions according to your specific product design and market requirements, making it flexible for various knee patch specifications.
The PLC touchscreen system supports multiple languages, including Spanish, French, Korean, Russian, Japanese, and Arabic. Operators can select their preferred language for easy operation, reducing training time and operational errors.
The machine features a stainless steel casing that is easy to clean and maintain. Regular maintenance includes checking the powder feeder, sealing mechanism, and servo system for wear, ensuring smooth operation. Additionally, the low operational costs mean minimal ongoing expenses for upkeep.
The enhanced intermittent sealing mechanism is specifically designed to prevent leakage. It ensures tight, uniform seals across every package, protecting powder materials from moisture, contamination, and spillage.
