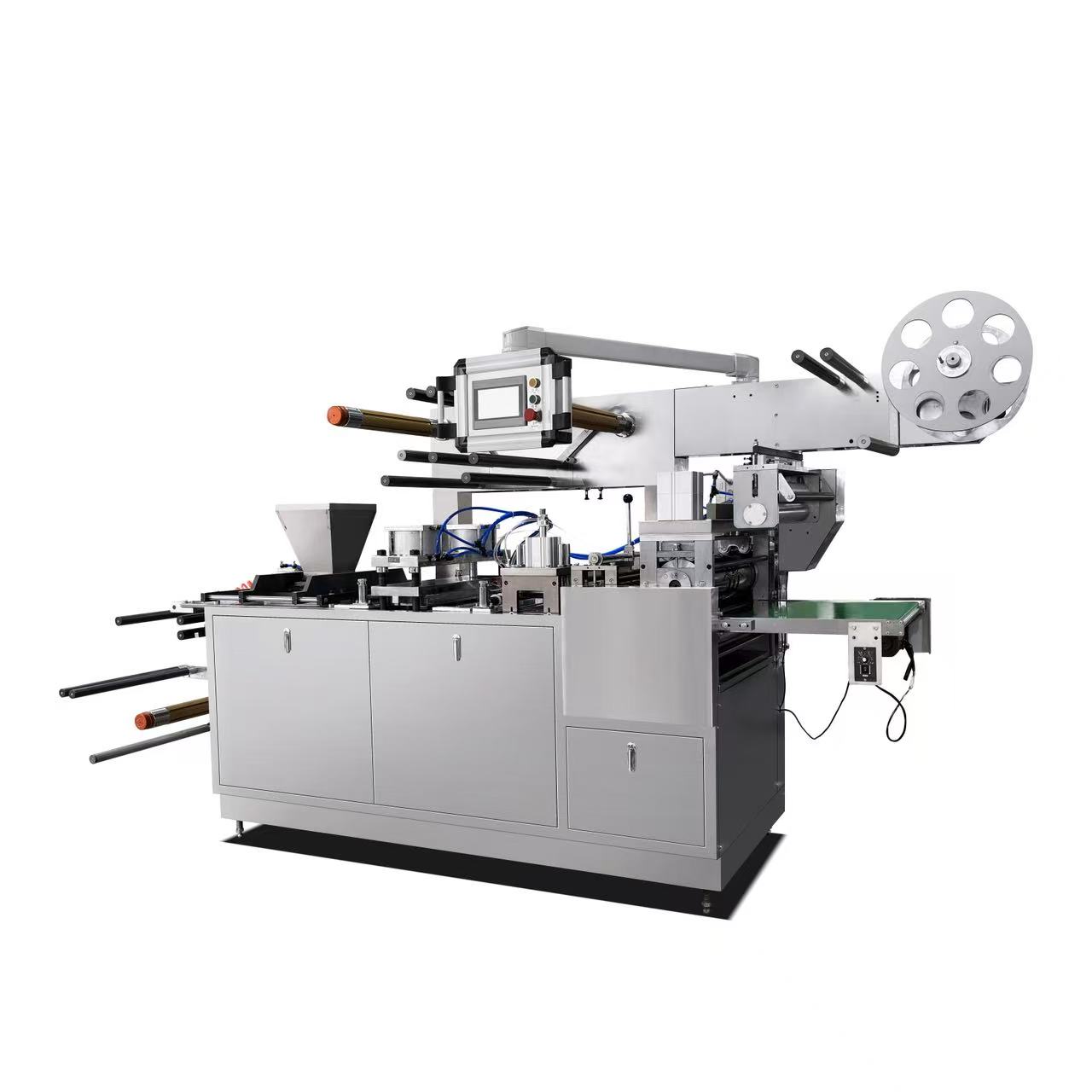

The HY-600CSB is a fully automatic one-piece forming machine designed for the production of powder-filled neck stickers and similar heat patch products. Manufactured by Zhejiang Haoyuan Machinery Co., Ltd., this equipment integrates powder filling, sealing, cutting, and shape forming into a continuous production sequence. It produces 20 to 50 units per minute, with configurable multi-outlet tooling for 3-up or 4-up simultaneous production. The machine uses color-coded tracking and servo motor control to maintain alignment between packaging material and cutting positions. It processes powder and granular formulations including herbal blends and heat-generating compositions, supporting production for healthcare product manufacturers, pharmaceutical auxiliary packaging facilities, and personal care product enterprises.
Model specifications | HY-600CSB Fully Automatic Neck Sticker One-piece Forming Machine |
|---|---|
Productive capacity | 20-50 per minute, can be customized to produce 3 units or 4 units |
Maximum package size | custom-made |
Minimum package size | custom-made |
Compressed air | 0.5-0.8 MPa |
Packaging material | Compound material |
Material type | Powder, granules |
Feature | Padding, Filling, Sealing, Cutting, Forming |
Die cooling | Tap water or circulating water: 60L/H |
Total power of supply | 6KW、380V |
Machine weight | Approximately 2,000 kilograms |
Overall dimension | 3400×900×1700mm |
 |  |
 |  |
 |  |  |

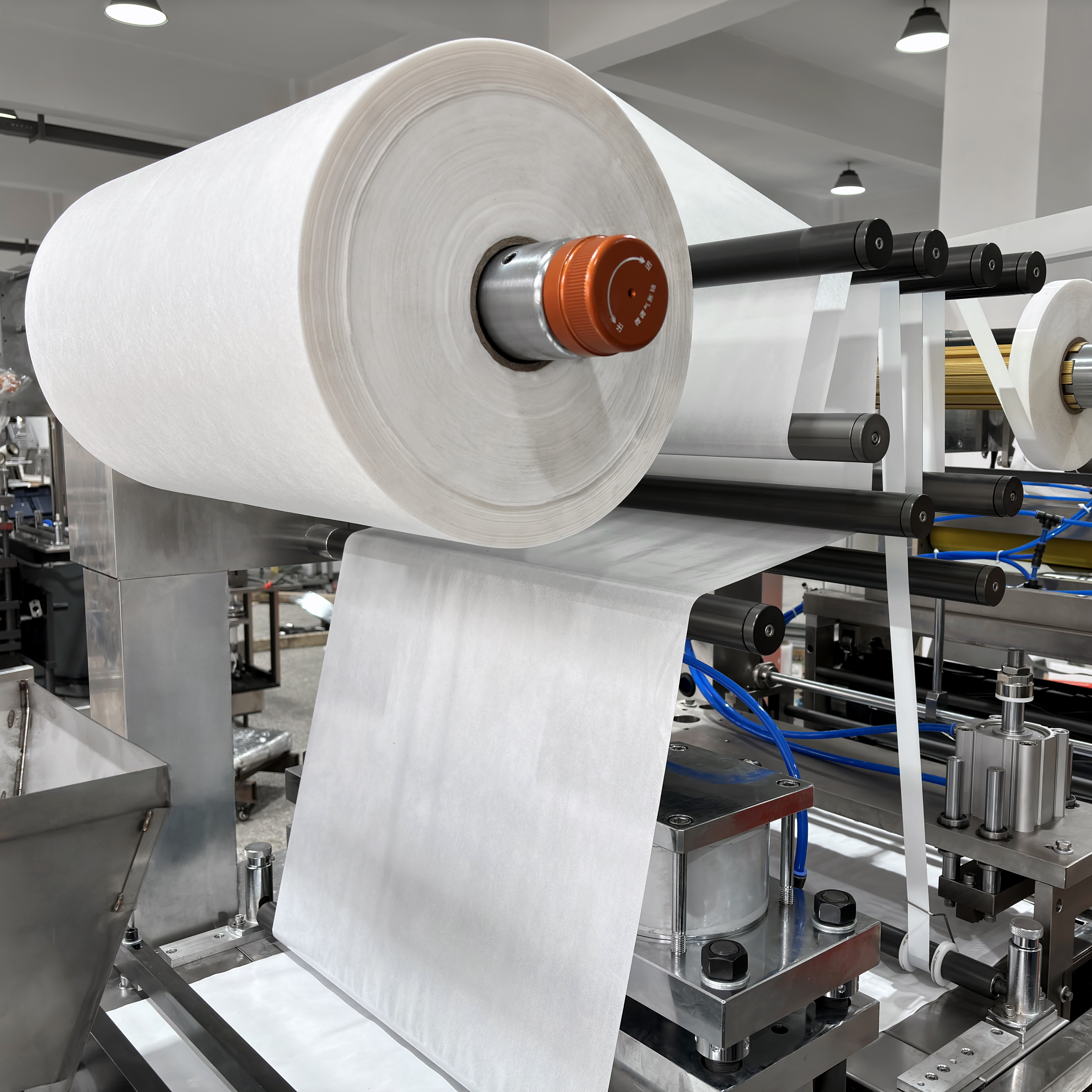

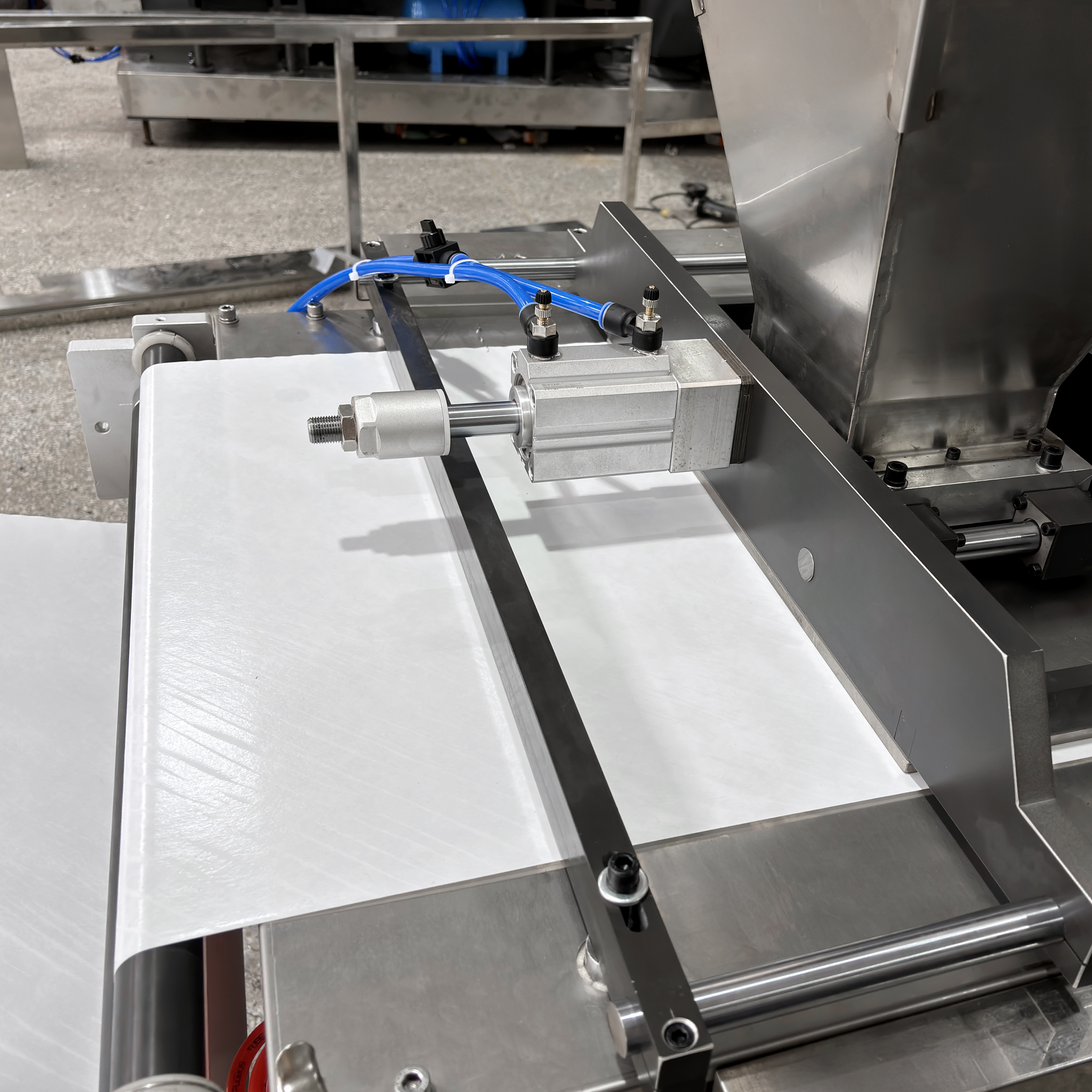

A photoelectric color-tracking system detects registration marks on the composite packaging film and adjusts feed positioning accordingly. This alignment control ensures consistent cut placement and seal margins across shaped products.
The machine uses a servo motor system to regulate film feed speed, filling volume timing, and sealing cycle duration. The pneumatic and photoelectric control combination supports self-diagnostic error detection, with fault indicators displayed on the operator panel.
The intermittent sealing mechanism applies controlled temperature and pressure to composite packaging materials. Operators adjust seal temperature, pressure, and dwell time based on the specific compound material thickness. This adjustment range supports different barrier film constructions used for powder containment.

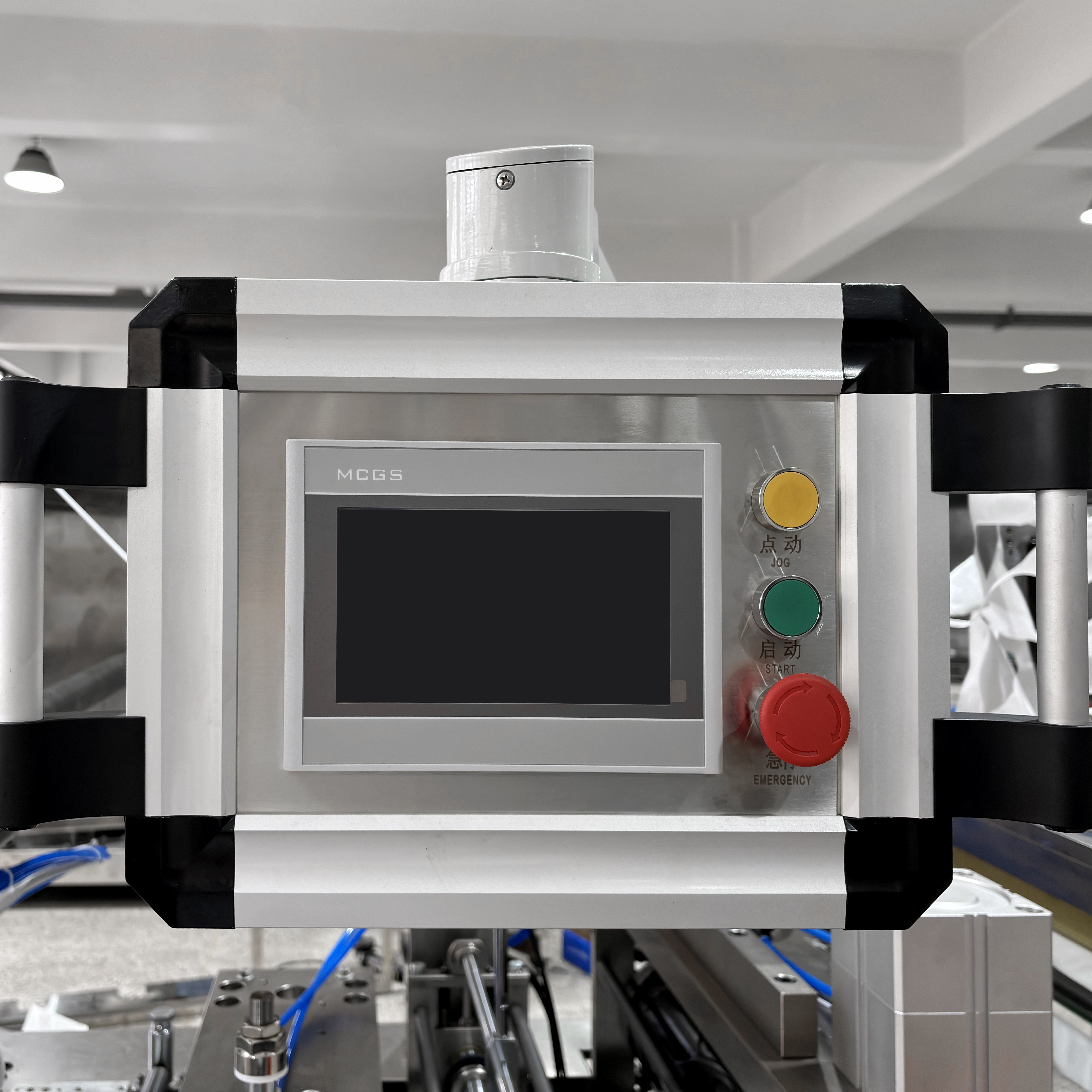

The PLC touchscreen supports operation in Spanish, French, Korean, Russian, Japanese, and Arabic. Operators set production speed, filling parameters, and sealing profiles through the interface, and the system displays production counts and error messages during operation.

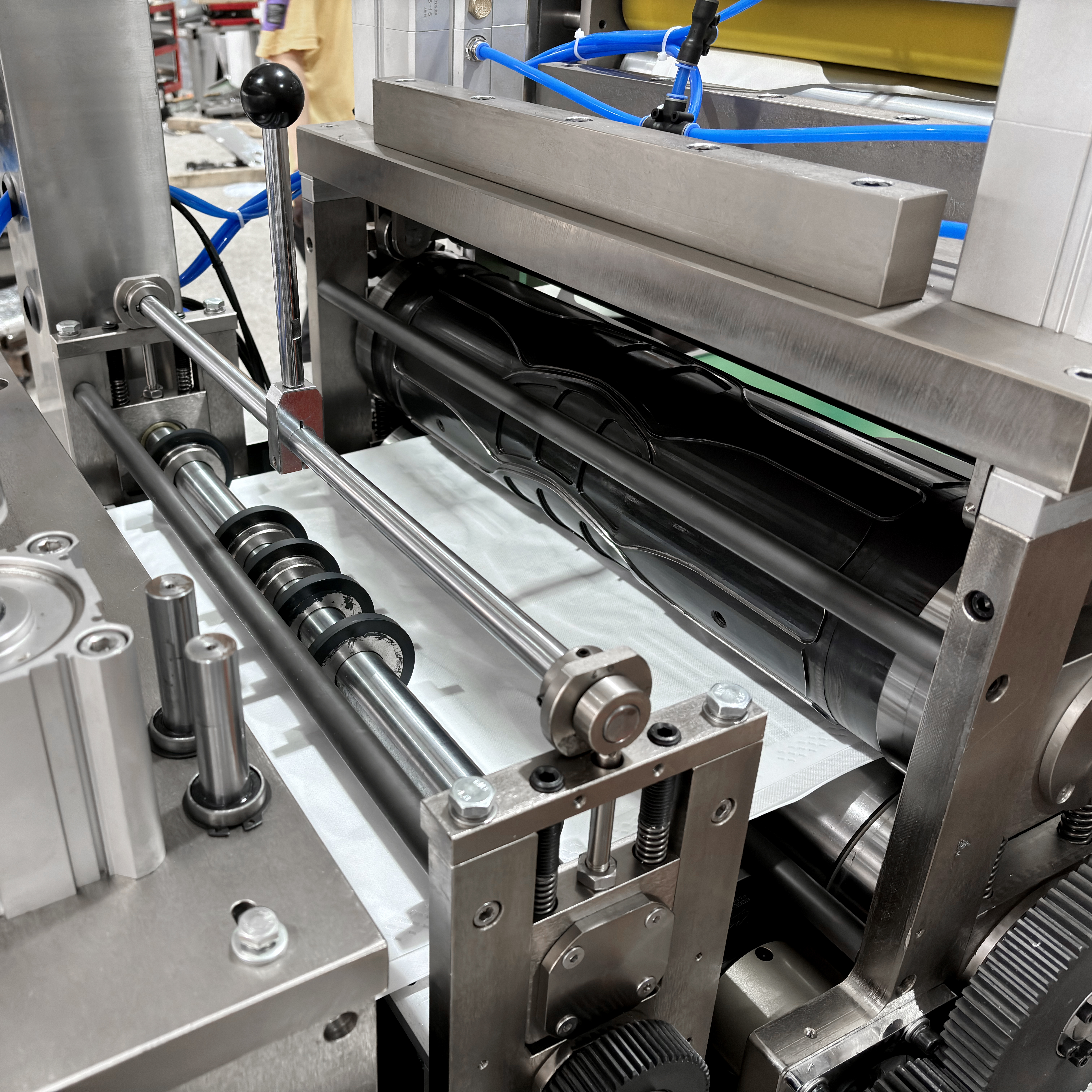

Machine product-contact sections use stainless steel surfaces, which support cleaning between formulation batches and resist corrosion from powder residues. The cam-driven sealing and cutting mechanism provides mechanical consistency for repeatable seal quality across production hours. The die cooling system circulates tap water or process water at 60 liters per hour to maintain forming temperature stability.
Different feeder configurations are available to match powder flow characteristics, including fine powders and granular blends. Production tooling supports custom package dimensions and irregular product shapes per customer specifications.

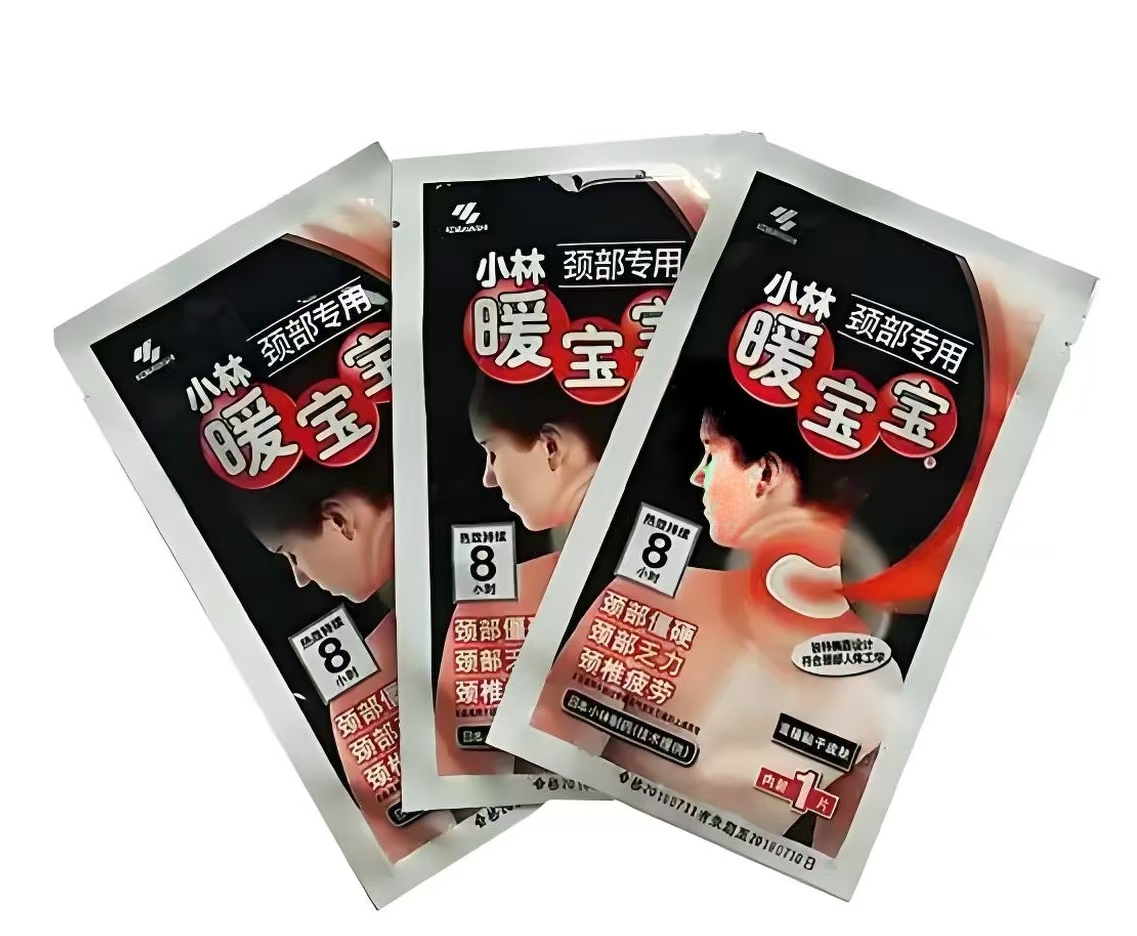

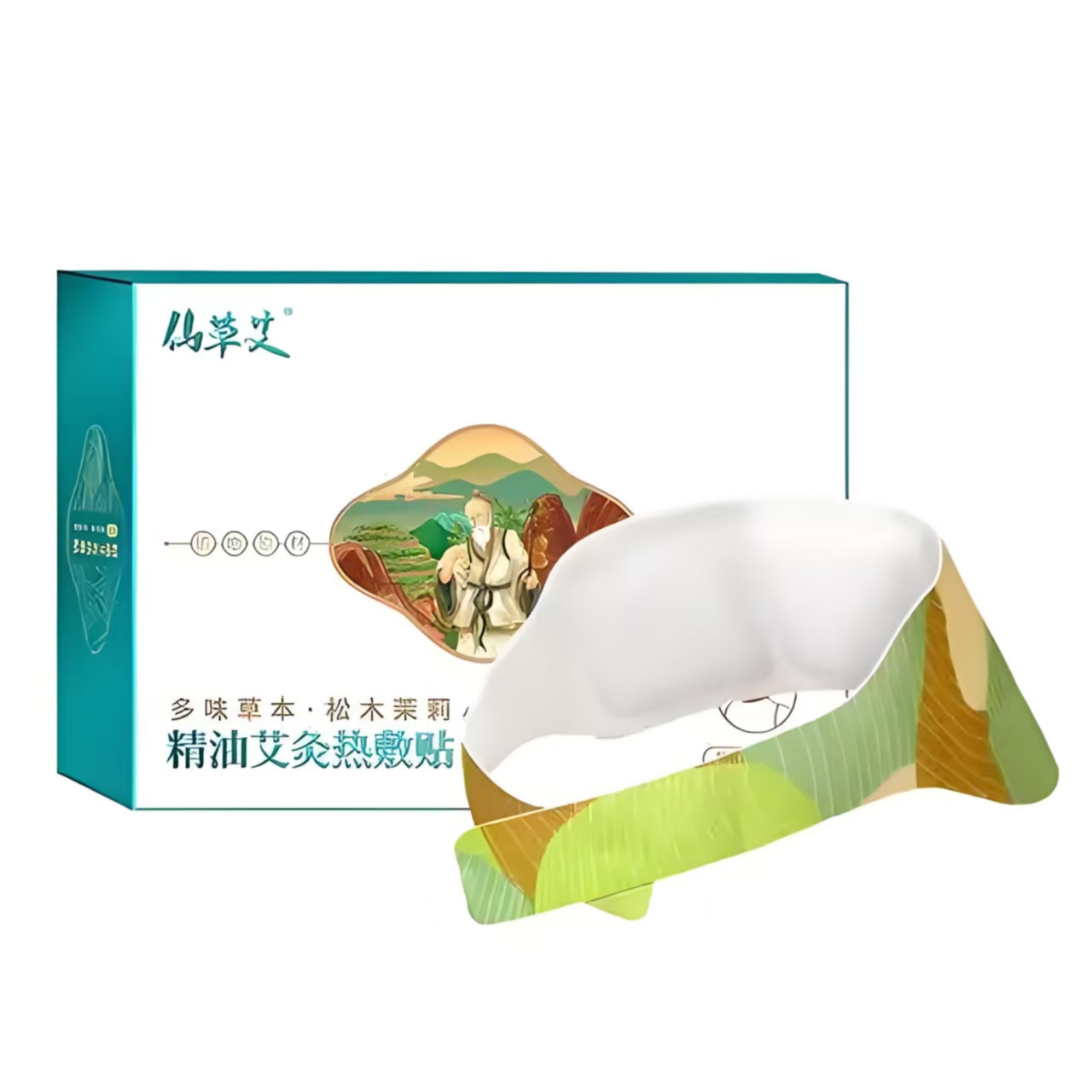

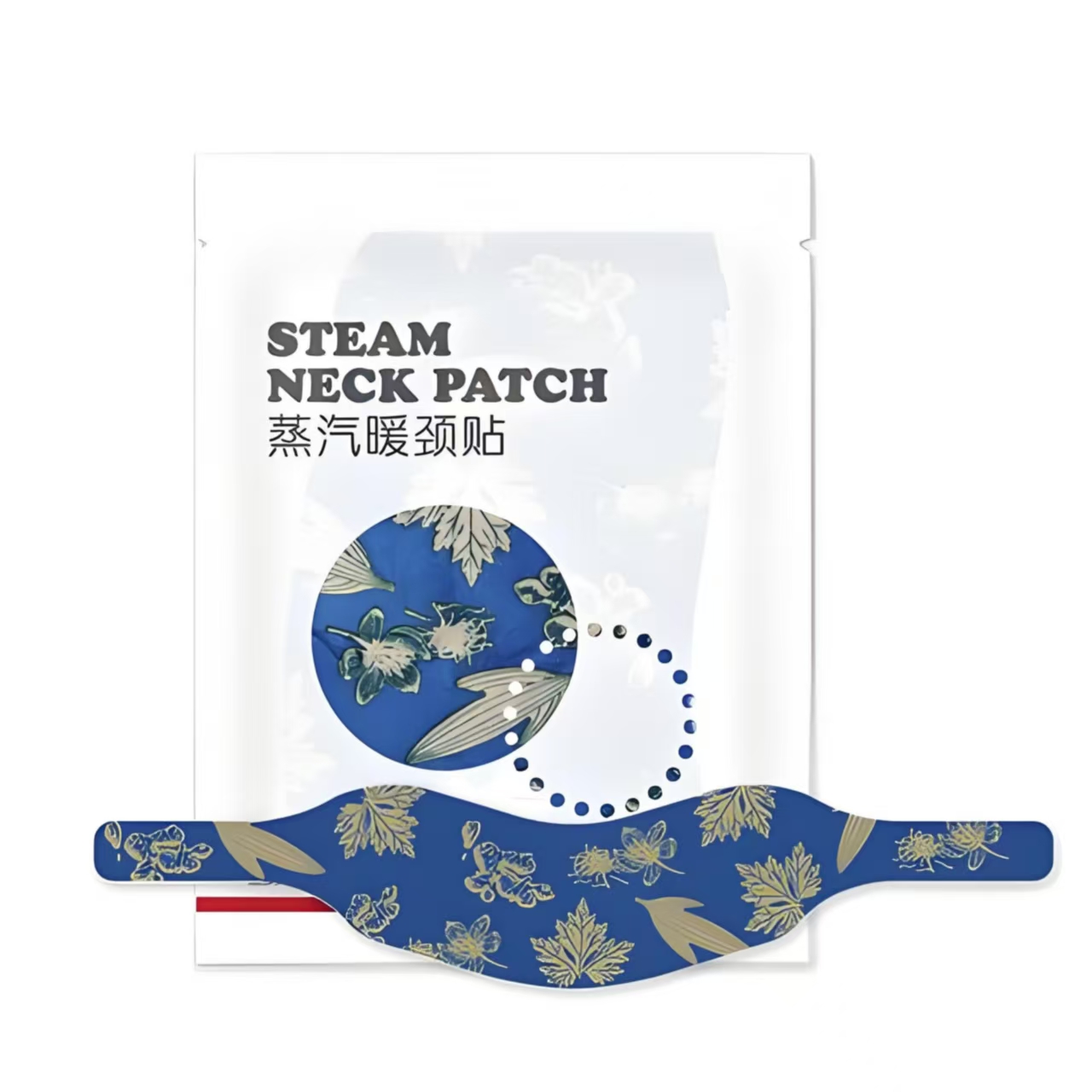

The machine produces steam neck patches, moxibustion heat compress patches, warming neck stickers, and herbal powder-based cervical patches. Manufacturers of health care products use this equipment to achieve consistent powder dosing and sealed edge formation.
Pharmaceutical auxiliary packaging facilities use the HY-600CSB for powder-containing transdermal products and external patch items requiring controlled filling and hygienic production conditions.
Daily necessities enterprises manufacture warming patches, aroma therapy stickers, and similar powder-filled products on this machine. The custom shape-forming capability supports product design differentiation in commercial markets.
Zhejiang Haoyuan Machinery Co., Ltd. provides custom tooling development based on customer product specifications. Each machine undergoes test runs with sample materials before shipment. The company supplies installation drawings, operator training documentation, and spare parts lists for ongoing maintenance. Standard warranty terms cover manufacturing defects, and technical support is available for troubleshooting and process optimization. The stainless steel construction aligns with hygiene expectations for powder handling in health product manufacturing environments.
Standard configuration produces 20-50 units per minute. Custom 3-outlet or 4-outlet tooling increases total output for higher volume production schedules.
Yes. Both maximum and minimum package sizes are configurable through custom tooling. The machine supports irregular and shaped neck sticker designs beyond standard rectangular formats.
The machine requires 380V three-phase power, 0.5-0.8 MPa compressed air supply, and a cooling water source flowing at 60 liters per hour for die temperature control.
The HY-600CSB handles powder and granular formulations with compatible feeder setups. Packaging materials are limited to composite films designed for powder containment and heat sealing.
All production parameters are configured through the multilingual PLC touchscreen. Operators modify filling volume, seal temperature, line speed, and cutting position settings based on material and product requirements.
