Developed by Haoyuan Machinery, this machine integrates advanced technology with user-centric design, delivering smooth and continuous operation that meets the demands of mass production and small-batch processing alike. Crafted with a full stainless steel exterior, it not only boasts an elegant appearance but also adheres to strict hygiene standards, making it ideal for food, medical, and daily necessities packaging. Equipped with a PLC touch screen and imported Panasonic PLC, the machine ensures precise parameter control, while its servo motor and intermittent sealing technology guarantee consistent sealing quality and leak-proof performance. With multi-language support and self-diagnostic fault detection, it offers global usability and minimal downtime, reducing running and maintenance costs for businesses of all sizes.
The Vacuumize Stretching Film Packaging Machine offers a production speed of 4-7 cycles per minute, balancing efficiency and precision for medium to high-volume production. It adopts a 4 side sealing packing type, providing comprehensive wrapping and protection for products. The packaging size is highly flexible, with length ranging from 5mm to 400mm, width from 5mm to 300mm, and height from 1mm to 60mm, accommodating small to medium-sized items across industries. The film width is limited to ≤435mm, with a maximum film outer diameter of ≤400mm, compatible with PE and PE+PET film materials. Operating at a pressure of 6Mpa, the machine delivers sufficient force for tight sealing. With a total power of 14.5KW, it uses a 380V three-phase 50/60HZ power supply, suitable for industrial power configurations. The machine’s operation height is fixed at 930mm, designed for ergonomic comfort, while its dimensions (6520×1060×1720mm, L×W×H) and weight of 2600kg ensure stability during operation, requiring dedicated workshop space for installation.
Model specifications | Vacuumize Stretching Film Packaging Machine |
Production Speed | 4-7 second/min |
Packing Type | 4 side sealing |
Packing Size | (L)5-400mm(W)5-300mm（H）1-60mm |
Formula for calculating film width | Based on the mold decision |
Formula for calculating film length | Based on the mold decision |
Film Width | ≤435mm |
Film Outer Diameter | ≤400mm |
Film Material | PEPE+PET |
Pressure | 6Mpa |
Machine operation height | 930mm |
Total power | 14.5KW |
Power supply type | 380V50/60HZthree-phase |
Machine Weigh | 2600kg |
Machine Size | 6520x1060x1720mm(LxWxH) |
The entire machine is covered with high-quality stainless steel, featuring corrosion resistance and easy cleaning. This material choice not only enhances the machine’s durability but also meets the hygiene requirements of food and medical product packaging, eliminating contamination risks. Unlike ordinary steel equipment, it maintains structural integrity even in frequent cleaning cycles, ensuring a long service life with low maintenance costs.
Equipped with a user-friendly MCGS PLC touch screen, the Vacuumize Stretching Film Packaging Machine allows operators to easily adjust packaging temperature and speed based on packaging materials, product thickness, and length. No professional technical training is required – the interface is intuitive, enabling quick parameter setting and modification. This simplifies operation and reduces human error, improving overall production efficiency.
Adopting a servo motor and imported Japanese Panasonic PLC, the machine achieves exceptional accuracy and stability. The Panasonic PLC is renowned for its reliability, ensuring consistent performance even during long-term continuous operation. The servo motor provides precise control over packaging movements, resulting in uniform sealing and packaging dimensions, which is crucial for maintaining product quality and brand image.
The machine utilizes advanced intermittent sealing technology, which not only ensures the aesthetics of the seal but also effectively prevents leakage. This is particularly important for vacuum packaging, as it maintains the product’s freshness and extends shelf life. The sealed edges are smooth and neat, enhancing the product’s market appeal compared to machines with irregular sealing performance.
Catering to global users, the operating system supports multiple local languages, including Spanish, French, Korean, Russian, Japanese, and Arabic. This eliminates language barriers for international businesses, allowing operators from different regions to use the machine seamlessly, making it a versatile choice for export-oriented enterprises.
Integrated with light, electricity, and gas control, the machine can self-diagnose faults and display them clearly on the touch screen. This enables quick troubleshooting, reducing downtime and production losses. Additionally, it provides automatic alarm reminders for required maintenance, ingredient refills, and stacking counts, ensuring smooth production flow.
The Vacuumize Stretching Film Packaging Machine can be configured with different types of loaders, adapting to various product feeding requirements. Whether it’s manual feeding or automatic integration into a production line, the machine’s flexible design ensures compatibility with different workflow setups, enhancing its applicability in diverse manufacturing environments.

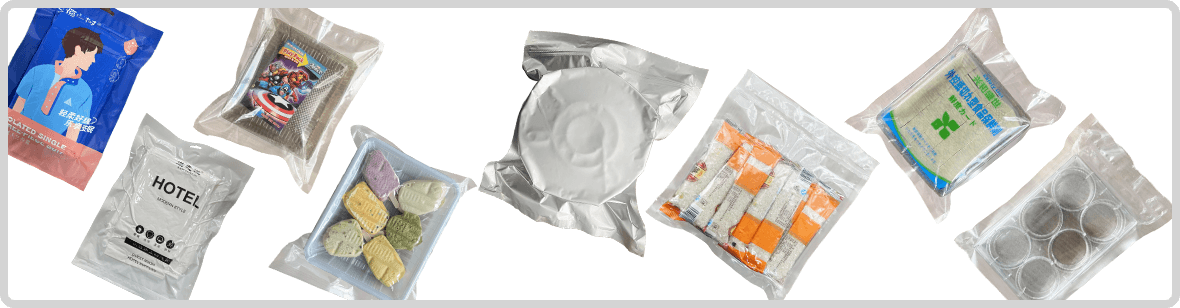

This Vacuumize Stretching Film Packaging Machine is an excellent choice for packaging mask medical supplies, medical dressings, and hygiene products such as disposable diapers and wipes. The stainless steel construction and leak-proof sealing meet the sterile requirements of the medical industry, preventing contamination and ensuring product safety. The adjustable temperature and speed settings adapt to the delicate nature of these products, avoiding damage during packaging.
In the food sector, the machine is suitable for vacuum packaging snacks, dried fruits, fresh meat, seafood, and processed foods. The 4 side sealing and vacuum technology extend the shelf life of food by preventing oxidation and moisture absorption, preserving flavor and nutritional value. The easy-to-clean stainless steel surface complies with food hygiene standards, making it a reliable tool for food manufacturers.
For hardware products such as small screws, nuts, and tools, the machine provides dust-proof and rust-proof packaging, protecting the products during storage and transportation. It is also ideal for packaging daily necessities like toothbrushes, combs, and small plastic items, improving product presentation and marketability. The flexible packaging size and loader configuration adapt to the diverse shapes and sizes of these products.
It is compatible with mask medical supplies, hygiene products, daily necessities, hardware products, food, and other items that require 4 side sealing and vacuum packaging. The flexible packaging size (5-400mm in length, 5-300mm in width, 1-60mm in height) supports various product types.
You can adjust these parameters via the PLC touch screen. Simply input the packaging material (PE or PE+PET), product thickness, and length, and the system will allow precise setting of temperature and speed for optimal sealing results.
Yes, it supports Spanish, French, Korean, Russian, Japanese, Arabic, and other local languages, facilitating operation for global users.
The machine works with PE and PE+PET films, with a maximum film width of 435mm and outer diameter of 400mm. The film width and length are determined by the mold used.
The machine features a self-diagnostic function. Faults will be clearly displayed on the touch screen, and you can troubleshoot according to the prompts. For complex issues, contact Haoyuan Machinery’s after-sales service for professional support.
