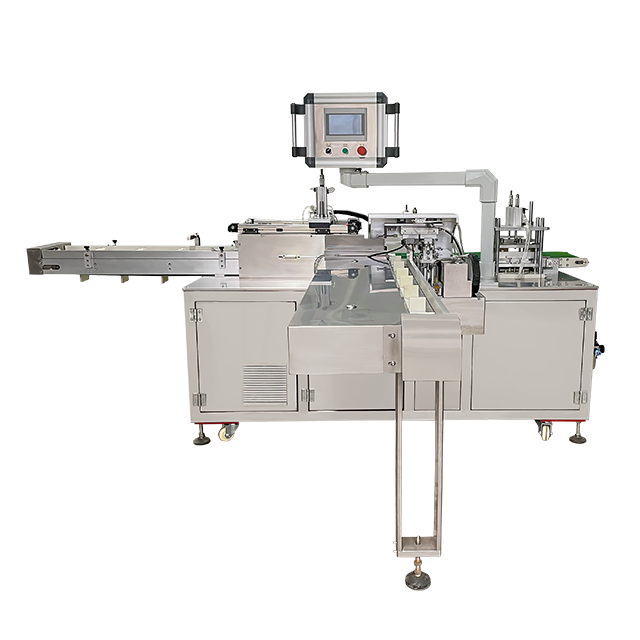

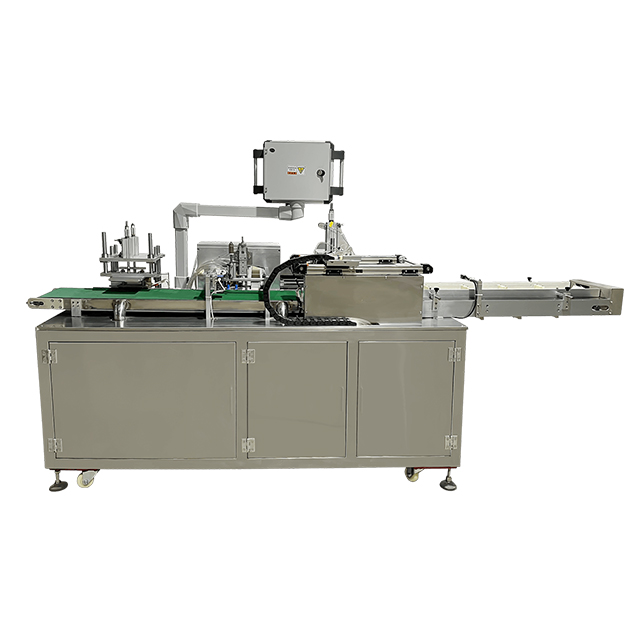

The HY-100 is an automatic bag packing and sealing machine designed for continuous packaging operations across medical, food, and sanitary product sectors. Manufactured by Zhejiang Haoyuan Machinery Co., Ltd., this equipment integrates bag forming, product placement, and heat sealing into a single workflow. It processes 5 to 28 bags per minute, depending on product dimensions and material characteristics. The machine uses a push-and-pinch packing mechanism to secure product positioning during the sealing cycle. Its stainless steel exterior supports cleaning protocols required for food and medical packaging environments. Commercial procurement teams seeking to replace manual bagging workflows can use this equipment to standardize seal quality and reduce material waste per production shift.
Model | HY-100 Automatic Bag Pack Sealing Machine |
|---|---|
Capacity | 5-28 bags/min |
Film material | PE/Composite Film/VMCPP/AL |
Bag length | 50-300mm |
Bag width | 50-150mm |
Packing type | Push and Pinch |
Air Consumption | 0.5-0.8m³/min |
Voltage | 380V 50/60HZ |
Total Power | 6.5KW |
Size (L × W × H) | 2900×2470×1728mm |
Weight | 900KG |
 |  |
 |  |
The machine incorporates photoelectric correction technology to align film positioning before each sealing cycle. This system reduces film waste by minimizing side margins, and produces consistently aligned seals across production runs.
The intermittent sealing design applies heat only during designated sealing intervals, which reduces thermal exposure to the film material. This approach supports airtight seal formation while lowering the risk of film deformation or burn-through on thinner materials.

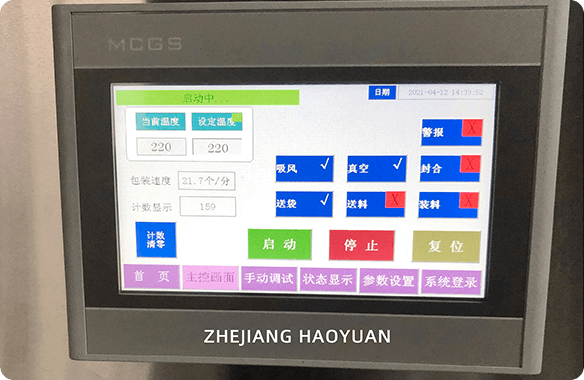

A Panasonic PLC module controls sealing temperature and machine sequencing. Operators adjust temperature setpoints via the touchscreen interface based on film type and product thickness. The servo motor system regulates bag transport speed, and the control panel displays fault codes for diagnostic reference. The interface supports seven operation languages including Spanish, French, Korean, Russian, Japanese, and Arabic.
External machine surfaces use stainless steel panels, which support wipe-down cleaning procedures and resist corrosion from humid production environments. This construction aligns with hygiene requirements for food and medical consumable packaging lines.
Built-in features include automatic batch counting, product stacking output, and alarm notifications for fault conditions. Operators can switch between product size presets without full mechanical reconfiguration. The machine also accepts custom loader configurations, including vibratory and belt feeders, to match existing upstream production equipment.

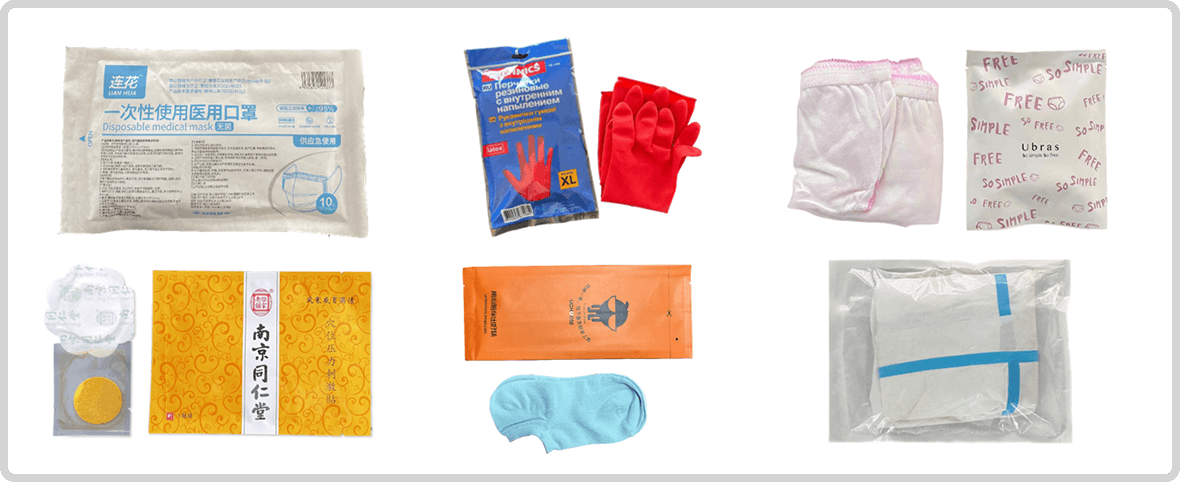

The HY-100 packages disposable face masks, examination gloves, sterile dressings, and small medical consumables. The stainless steel exterior and controlled sealing temperature support consistent packaging quality for products requiring barrier protection.
Production lines manufacturing feminine hygiene products, disposable wet wipes, and adult care items use this machine to achieve uniform seal dimensions per batch.
Food applications include dried fruit portions, nut packs, instant noodle accessories, and other shelf-stable food items requiring dust and moisture barriers. The machine also packages small electronic components, travel toiletries, and disposable tableware for general commercial use.
Zhejiang Haoyuan Machinery Co., Ltd. supplies packaging equipment to industrial clients across domestic and international markets. Each machine undergoes functional testing before shipment, and the company provides installation guidance and operator training documentation. Standard warranty terms cover manufacturing defects for a defined period after delivery, and replacement parts are available for ongoing maintenance. The stainless steel construction and electrical components meet commonly referenced industrial equipment standards for export markets.
The HY-100 processes PE, composite film, VMCPP, and AL packaging films. Each material type requires corresponding temperature and sealing time adjustments via the PLC interface.
Yes. The touchscreen control system supports Spanish, French, Korean, Russian, Japanese, Arabic, and additional language options, which allows multilingual production teams to operate the equipment.
All adjustments are entered through the PLC touchscreen. Operators input temperature values and speed parameters based on film thickness, product dimensions, and material composition. The servo motor maintains consistent speed once configured.
Stainless steel exterior panels allow surface wiping with standard industrial cleaning agents. Routine cleaning does not require disassembly of major machine sections, which reduces scheduled downtime.
Yes. The base machine accepts different loader configurations, including vibratory feeders and belt feeders, to integrate with specific product types and upstream production layouts.
