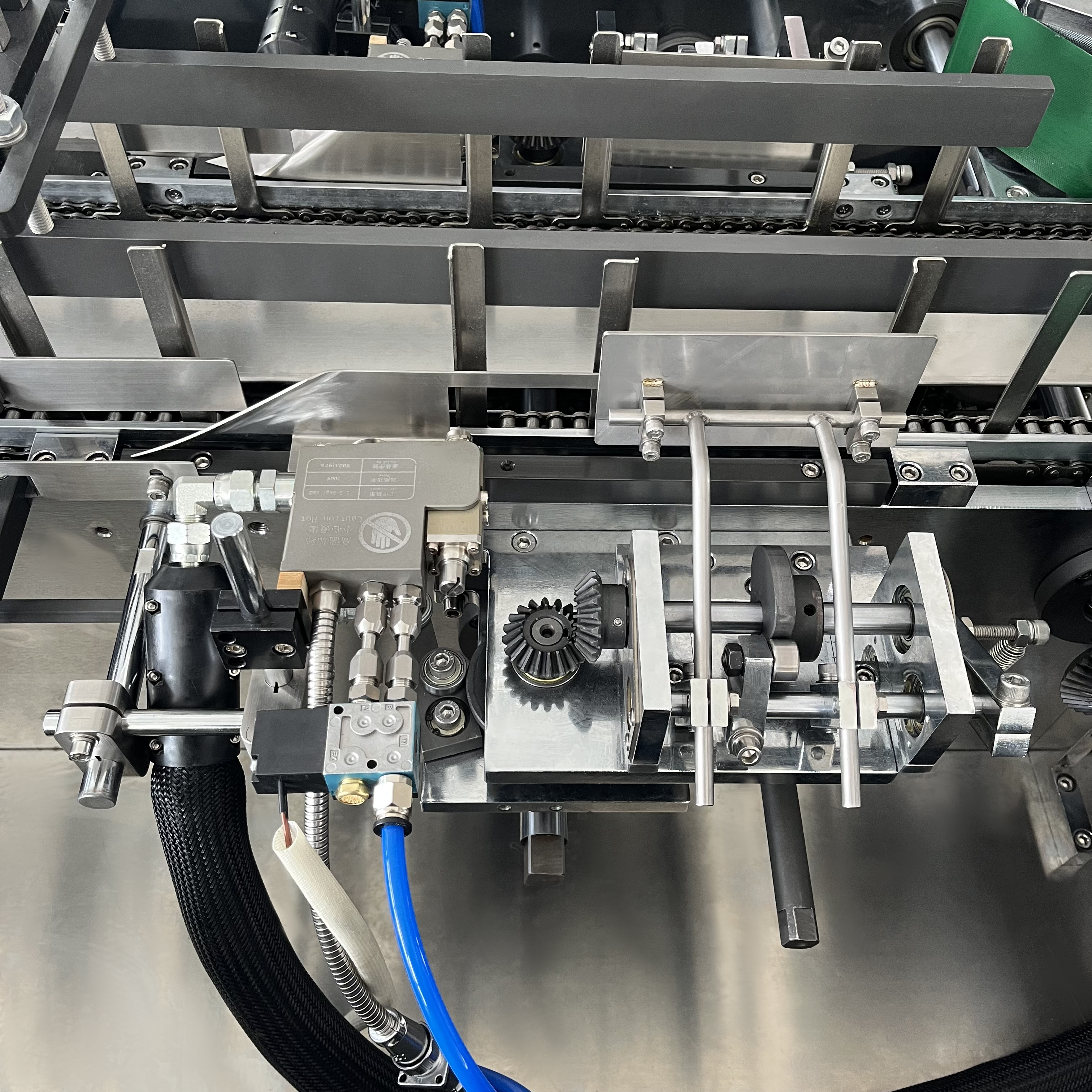

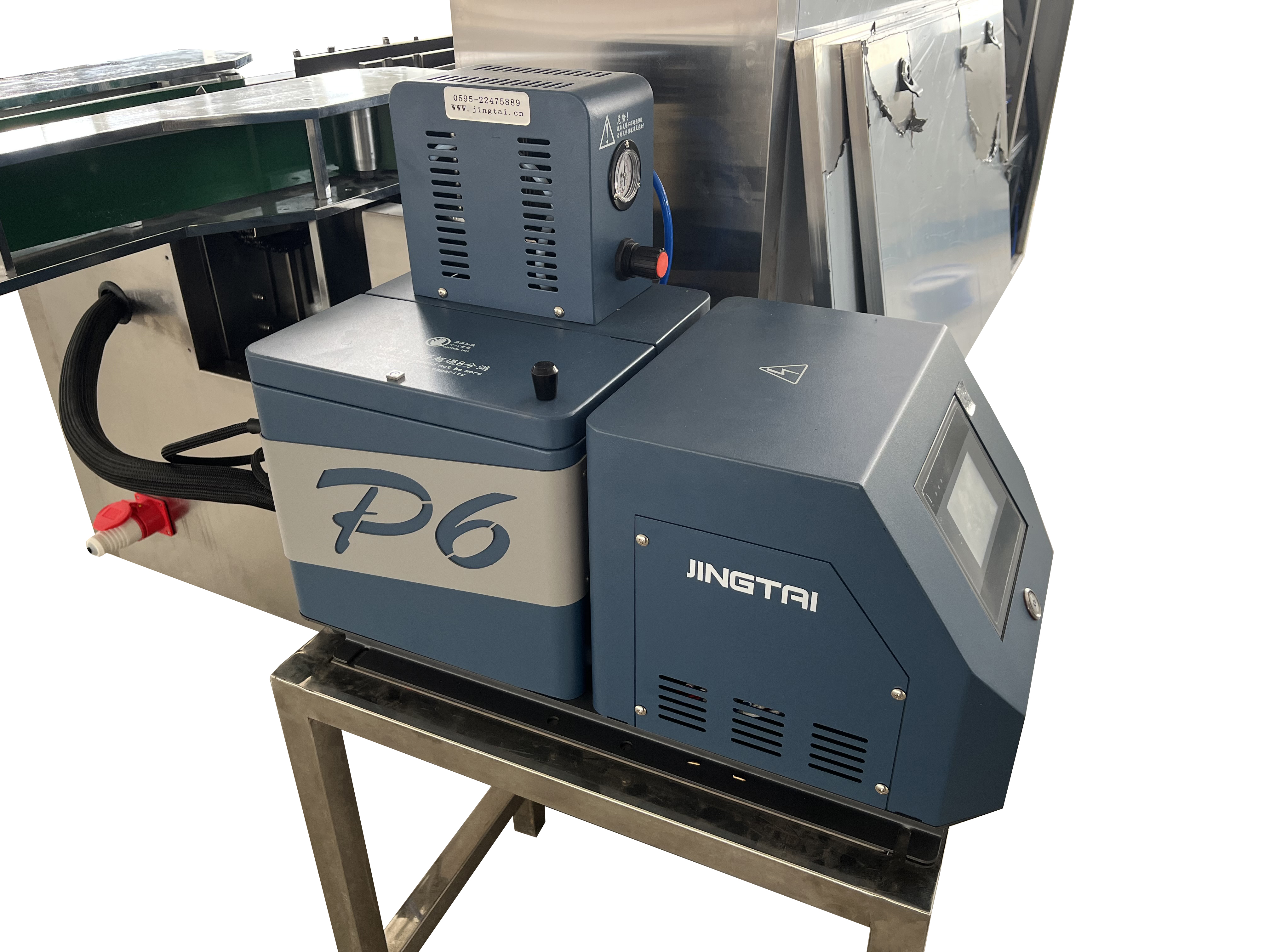

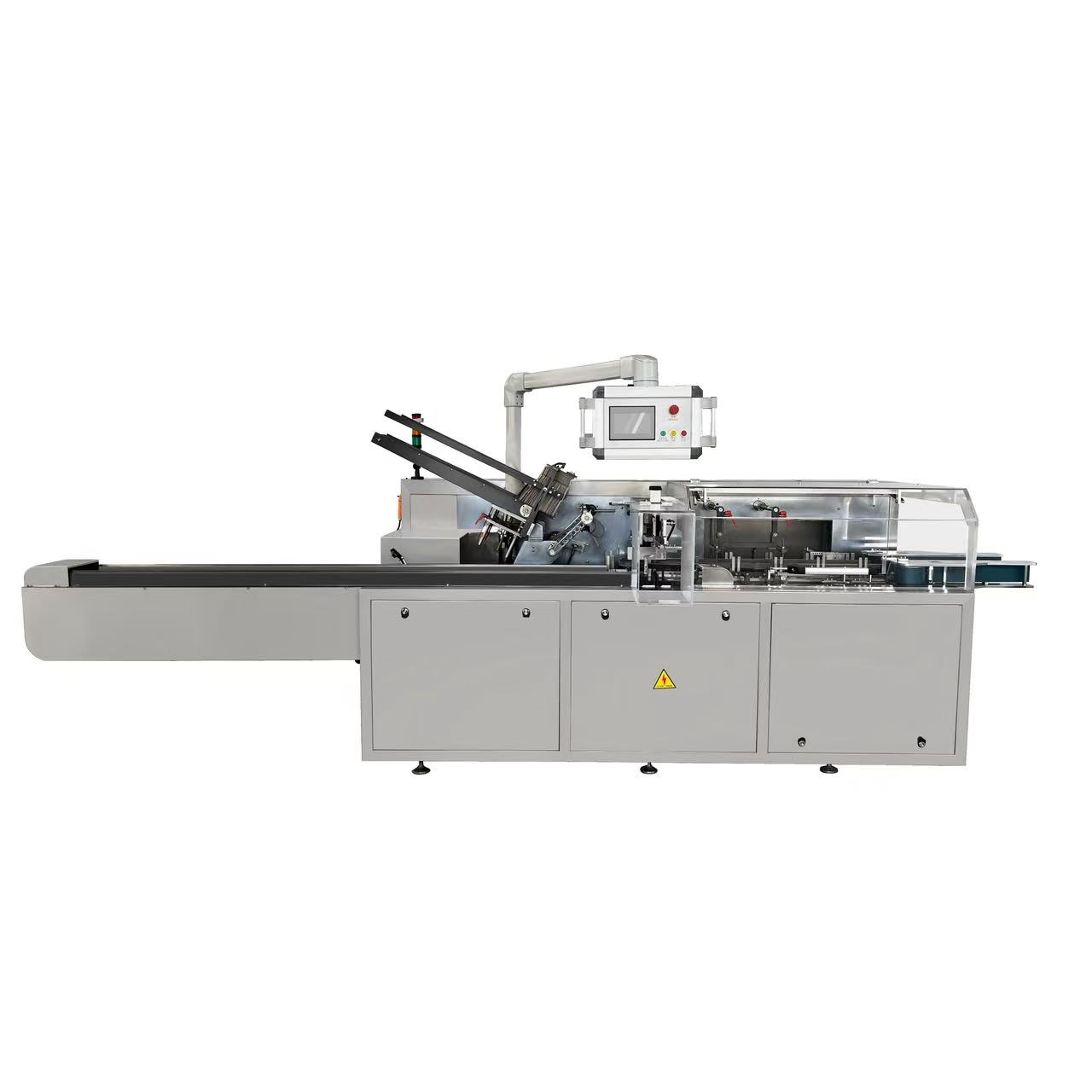

The HY-130B Automatic Glue Spraying and Cartoning Packaging Machine is a high-performance automated packaging solution designed to streamline cartoning processes for small to medium-sized products. Integrating advanced control systems and premium components, this machine delivers precise glue spraying, efficient carton forming, and reliable product loading—all while minimizing manual intervention. Ideal for industries pursuing productivity gains and consistent packaging quality, the HY-130B stands out for its versatility, durability, and user-friendly operation. Whether handling daily chemical products, small consumer goods, or specialty items, it ensures stable performance even in high-volume production environments, making it a valuable asset for modern manufacturing facilities.
The HY-130B operates at a packaging speed of 30-60 boxes per minute, balancing efficiency and precision to meet medium to high-volume production demands. It accommodates cartons with a quality requirement of 250-450g/m², with the exact specification confirmable based on the carton’s specific dimensions. The machine’s dimension range for cartons is (100-300)mm×(60-120)mm×(30-70)mm, and it can be customized to fit unique product and carton sizes as per customer requirements. For optimal performance, it requires an air pressure of ≥0.6mpa and an air consumption of 20m³/h. The power supply is 380V 50HZ, with a motor power of 1.5KW ensuring energy-efficient operation. The machine’s physical dimensions are 4200×1350×1900mm, and it weighs 1500KG, requiring a stable installation surface to maintain operational stability.
Model | HY-130B |
Speed | 30-60 box/min |
Quality requirement | 250-450g/m2 (according to its dimension to confirm) |
Dimension range | (100-300)mm×(60-120)mm×(30-70)mm Can customize according to your requirement |
Air Pressure | ≧0.6mpa |
Air Consumption | 20m3/h |
Voltage | 380V 50HZ |
Motor Power | 1.5KW |
Size(L x W x H) | 4200*1350*1900mm |
Weight | 1500KG |
Equipped with Touch Screen HMI controls, the machine offers intuitive operation, allowing operators to adjust parameters, monitor progress, and access functions with just a few taps.
Built-in PLC programme ensures precise coordination of all mechanical actions, from carton feeding to glue spraying and product insertion, reducing human error and improving process consistency.
Adopts Japan Omron electric parts (including inverter, PLC, and touch screen), renowned for their reliability and long service life, ensuring the machine operates stably in continuous production.
Integrates Germany Sick photocell for high-precision detection of products and cartons, enabling accurate positioning and avoiding misalignment during the packaging process.

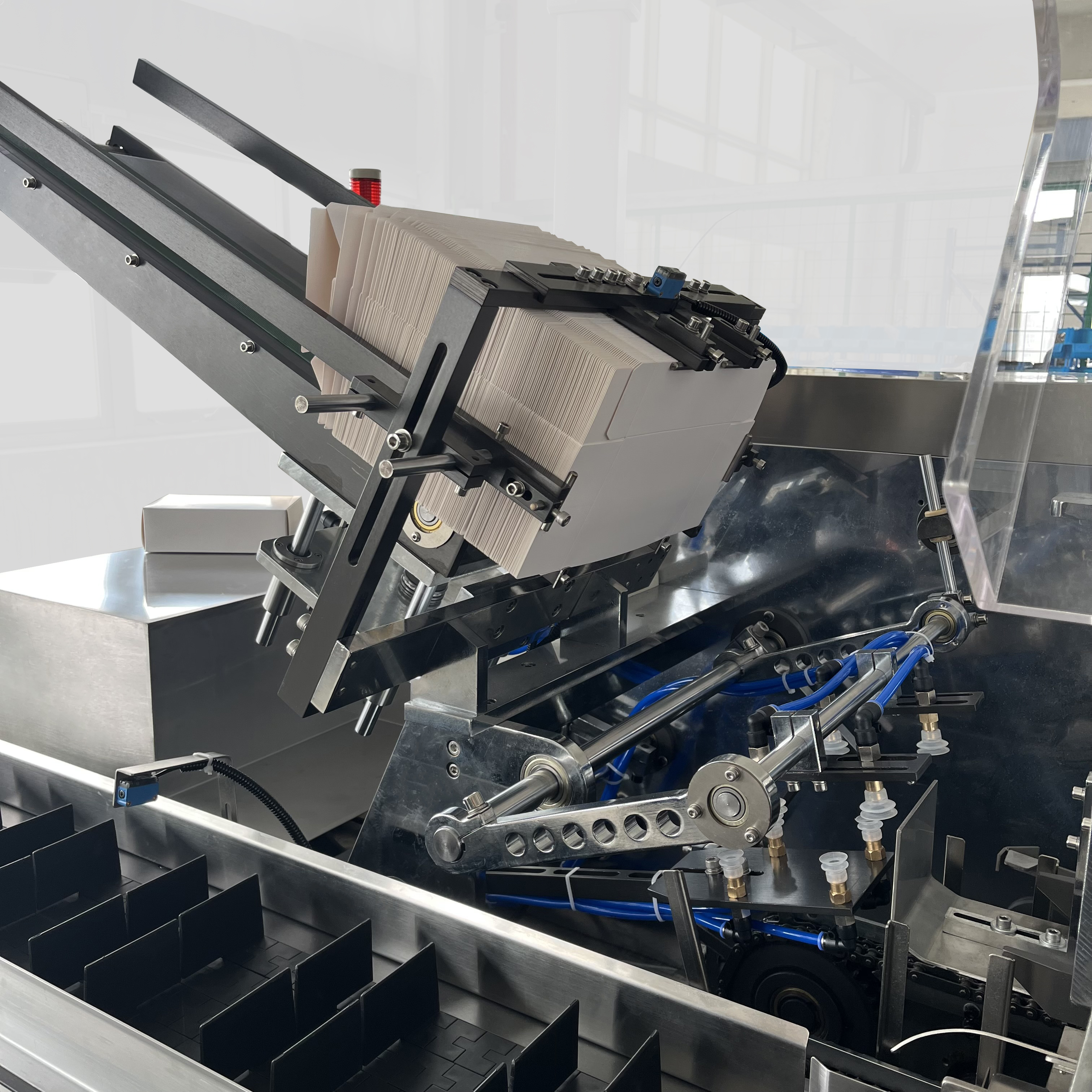

Features vacuum assisted pre-break technology, which gently pre-folds cartons to ensure smooth forming and tight sealing without damaging the carton structure.
Supports multi-size compatibility within its specified range—no need for complex retooling when switching between product sizes, significantly reducing downtime.
Incorporates an intelligent detection mechanism: without product, carton will not be sucked down, preventing waste of cartons and improving material utilization.
Offers auto trouble display, alarm, and finished product counting functions, allowing timely troubleshooting and real-time production monitoring for efficient workflow management.
Equipped with overload protection to safeguard the machine from damage due to excessive load, extending its service life and reducing maintenance costs.
The HY-130B Automatic Glue Spraying and Cartoning Packaging Machine is highly versatile, making it suitable for a wide range of industries and products:

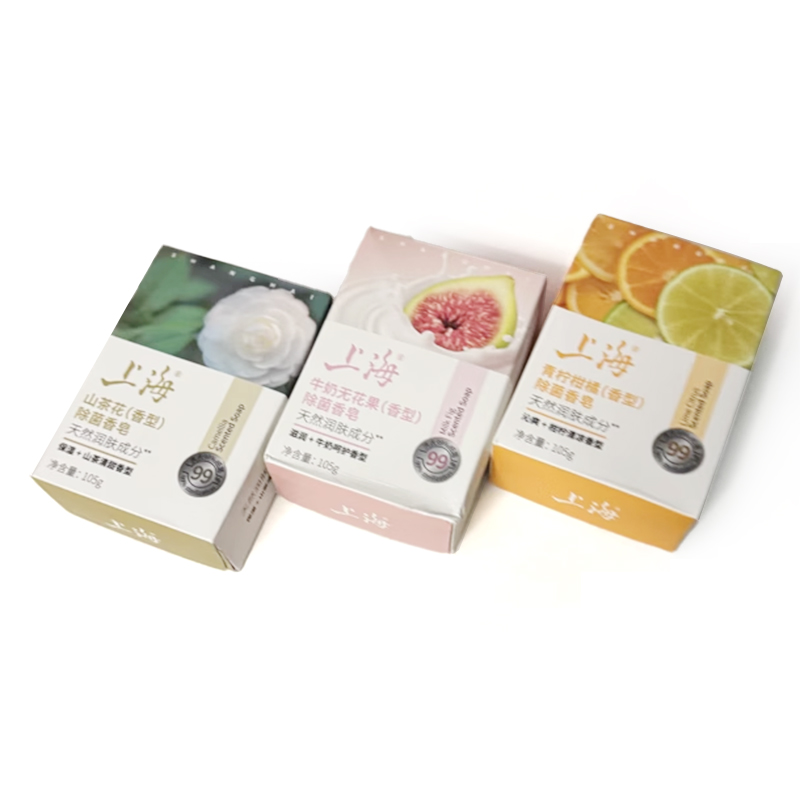

Daily Chemicals: Bar soaps (such as scented soaps, antibacterial soaps), small skincare products, and personal care items.
Consumer Goods: Miniature electronic accessories, small toys, and promotional gifts.
Healthcare: Small medical devices, health supplements, and over-the-counter medication packaging.

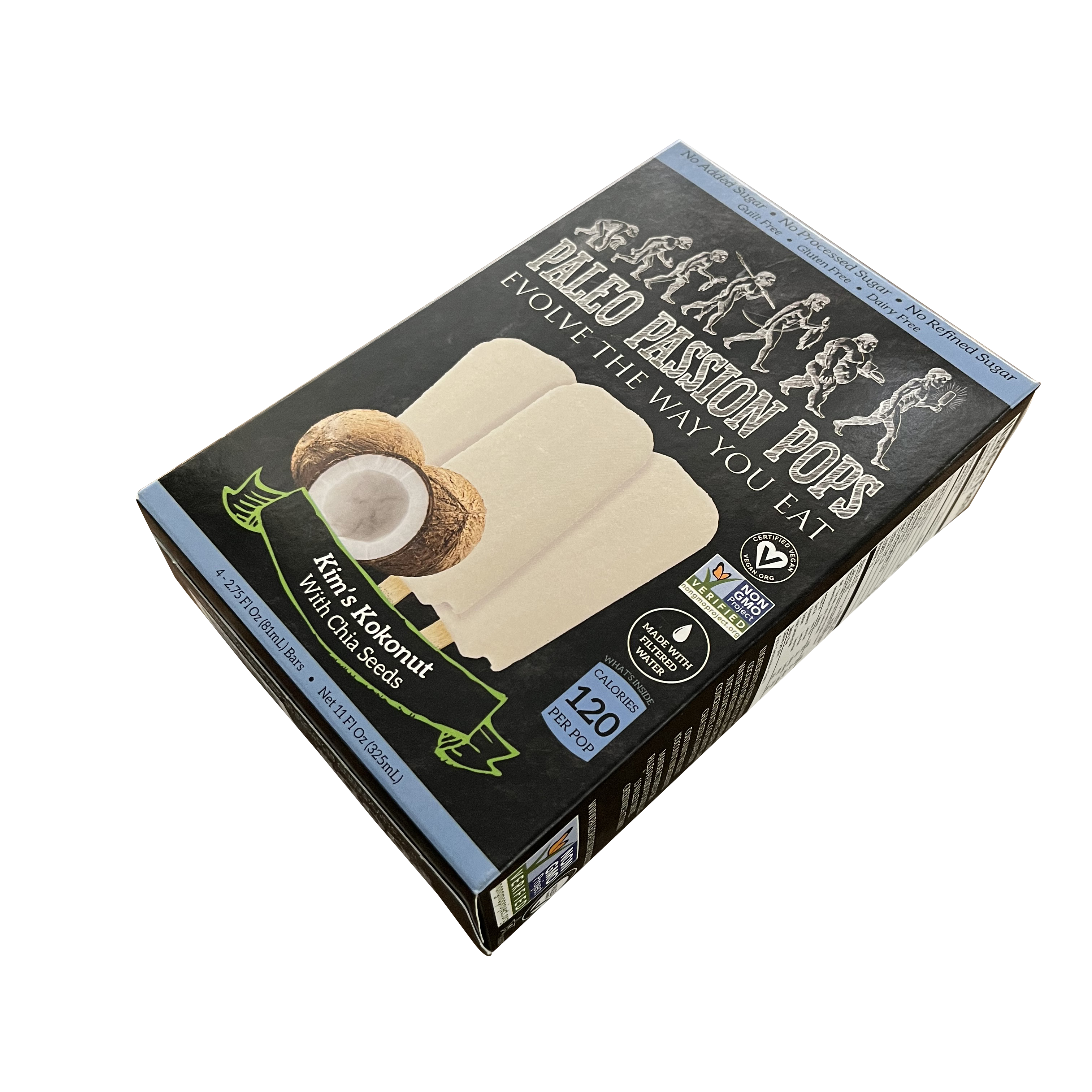

Food & Beverage: Small snack packs, candy boxes, and single-serve food items.
Its ability to handle various carton sizes and maintain consistent packaging quality makes it a flexible choice for businesses with diverse product lines or frequent product upgrades.
The standard dimension range is (100-300)mm×(60-120)mm×(30-70)mm. If your product requires a different size, we offer customization services to adjust the machine’s specifications accordingly.
The machine features an auto trouble display and alarm function. When a fault occurs (e.g., low air pressure, product jam), the touch screen HMI will clearly show the fault type, and an audible alarm will sound, allowing operators to quickly identify and resolve the issue.
Yes. The use of premium components (Japan Omron, Germany Sick) reduces the frequency of breakdowns. Additionally, the machine’s modular design and clear maintenance guidelines make routine checks and part replacements straightforward, minimizing downtime.
Absolutely. The HY-130B is designed for continuous operation in industrial settings. Its overload protection and durable construction ensure stable performance even during extended production shifts, making it ideal for high-volume manufacturing.
No. The Touch Screen HMI controls are intuitive, and the PLC programme simplifies operation. We provide detailed user manuals and on-site training (if required) to help operators master basic functions, parameter adjustment, and troubleshooting in a short time.
