This machine works smoothly and continuously, and is suitable for various masks, throat swabs, medical supplies, hygiene products, daily necessities and other product package seals.
| Quantity: | |
|---|---|

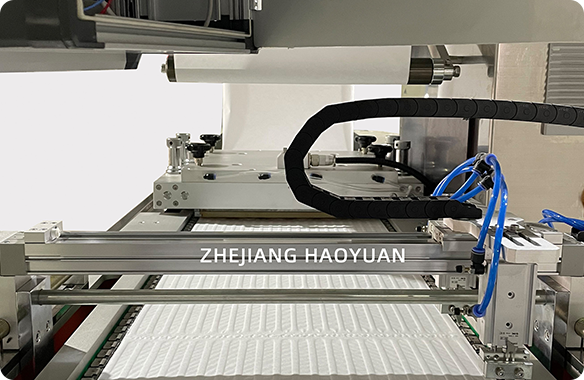

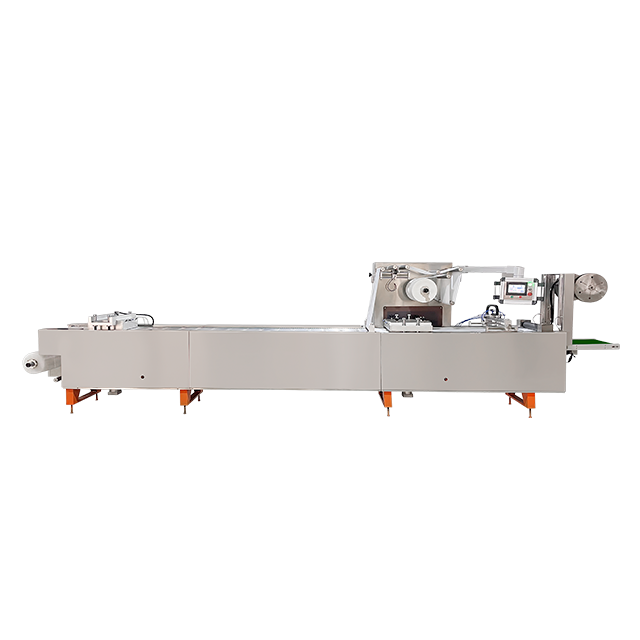

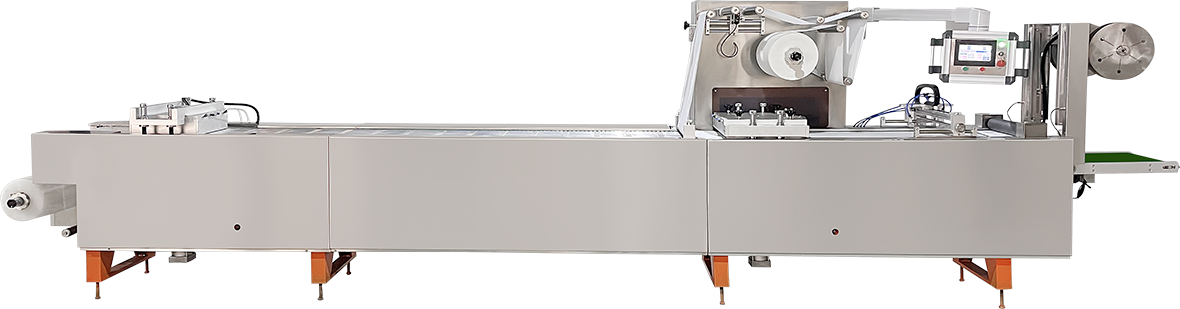

The Automatic Soft Blister Packing Machine is a high-efficiency, intelligent packaging solution designed for sealing a wide range of products. With fully automatic four-sided sealed packaging, photoelectric correction, and no-margin forming, this machine ensures precise, aesthetic, and leak-proof packaging results. Equipped with Japanese imported Panasonic PLC and a servo motor, it delivers exceptional stability and accuracy, while the multi-language operation interface and fault self-diagnosis function simplify operation for global users. Constructed with full stainless steel, the machine boasts a sleek appearance, easy cleaning, and durability, with low running and maintenance costs. It is widely applicable to masks, throat swabs, medical supplies, hygiene products, and daily necessities, meeting the packaging needs of diverse industries.
The Automatic Soft Blister Packing Machine offers a production speed range of 30-400 packs per minute, adjustable to match small-batch trial production or large-scale mass production. It accommodates packaged products with dimensions: length 5-400mm, width 5-300mm, height 1-60mm, covering most small to medium-sized items. The packaging film supports a maximum width of 435mm and outer diameter of 400mm, compatible with PE, PE composite, and PET materials. The machine operates at an air pressure of 6Mpa, with a total power of 14.5KW and a 380V 50/60HZ three-phase power source. Its operation height is 930mm, and overall dimensions are 6500×1157×1620mm (L×W×H), with a weight of 2600kg—designed for stable operation in industrial environments. The full stainless steel body ensures compliance with hygiene standards and easy cleaning.
Model specifications | Automatic soft blister packing machine |
Production speed | 30-400 packs per minute |
Type of bag packaging | Four-sided sealed packaging |
Dimensions of packaged products | (Length) 5-400mm, (Width) 5-300mm, (Height) 1-60mm |
Formula for calculating the width of a thin film | It depends on the mold specifications. |
Formula for calculating the length of a bag | It depends on the mold specifications. |
The width of the packaging film | ≤435mm |
The outer diameter of the packaging film | ≤400mm |
Material of the packaging film | PEPE Composite PET |
Air pressure | 6Mpa |
The height of machine operation | 930mm |
Total power | 14.5KW |
Type of power source | 380V50/60HZ three-phase |
The weight of the machine | 2600kg |
Machine dimensions | 6500*1157*1620*mm in length, width, and height |
The machine is engineered to package various products, including masks (disposable, surgical), throat swabs, medical dressings, hygiene products (sanitary napkins, disposable gloves), and daily necessities (small toys, electronic accessories), making it a versatile asset for multi-product manufacturers.
Adopting Japanese Panasonic PLC, the machine achieves high-precision control over packaging speed, temperature, and forming, enhancing equipment stability. The servo motor ensures smooth operation and accurate parameter adjustment, adapting to different product thicknesses and lengths.
The photoelectric correction technology eliminates packaging misalignment, ensuring neat seals and consistent product appearance. The no-margin forming design reduces film waste, lowering production costs while improving packaging efficiency.

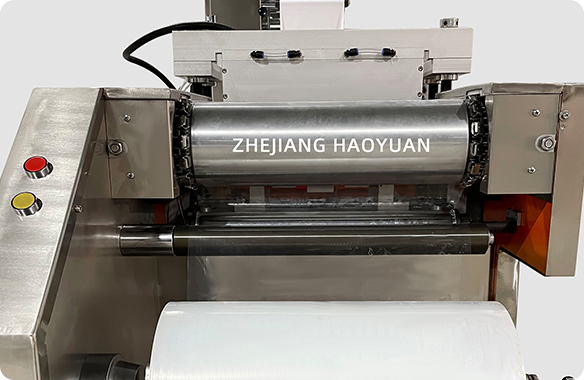

Intermittent sealing technology ensures tight, aesthetic seals, effectively preventing leakage—critical for moisture-sensitive or sterile products. The sealing temperature is adjustable according to packaging materials, ensuring compatibility with PE, PE composite, and PET films.

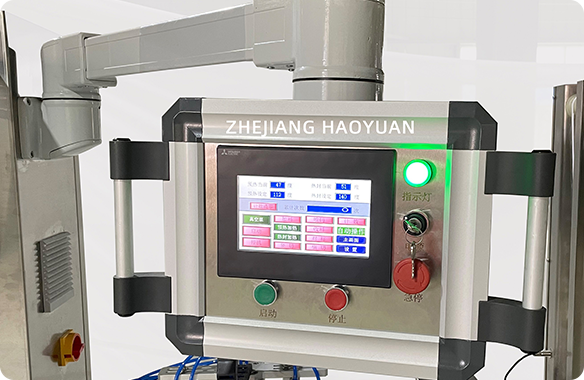

The PLC touch screen allows intuitive parameter setting (temperature, speed, packaging count). The operating system supports Spanish, French, Korean, Russian, Japanese, Arabic, and other local languages, facilitating use in global markets. It also features automatic alarm reminders, ingredient counting, and stacking functions.
Medical & Healthcare: Disposable masks, throat swabs, medical gauze, disinfection cotton pads, sterile gloves
Hygiene Products: Sanitary napkins, panty liners, disposable facial masks, adult incontinence products
Daily Necessities: Small toys, cosmetic samples, toothbrushes, earbuds, battery packs
Food & Beverage: Small snacks, candy, instant coffee sachets (moisture-proof packaging)
Pharmaceutical and medical device factories
Hygiene product manufacturing plants
Consumer goods packaging workshops
E-commerce private label product packaging
Small to medium-sized enterprises (SMEs) with multi-product packaging needs

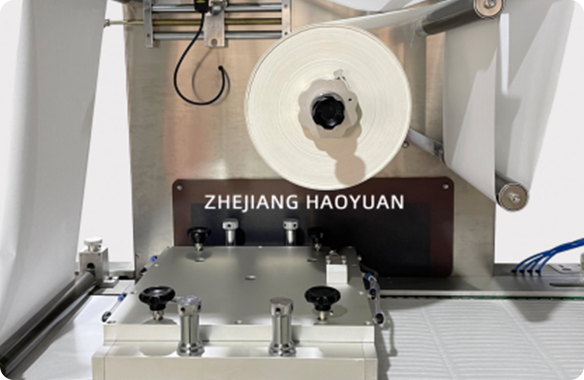

The machine works with PE, PE composite, and PET films—common materials for soft blister packaging. The film width and outer diameter should not exceed 435mm and 400mm respectively, and the specific film size depends on mold specifications.
Yes. The machine supports free switching of product specifications. Simply adjust the mold, set corresponding parameters (temperature, speed, size) via the PLC touch screen, and the transition is efficient without complex reconfiguration.
The machine integrates light, electricity, and gas control systems. If a fault occurs (e.g., film breakage, low air pressure, temperature deviation), the system will automatically diagnose the issue and display it clearly on the touch screen, guiding operators to resolve problems quickly.
The full stainless steel construction not only enhances the machine’s durability and corrosion resistance but also meets food-grade and medical hygiene standards. It is easy to wipe and clean, avoiding cross-contamination between different products.
