With multiple models (120, 150, 180, 210, 240) to choose from, this machine is widely applicable to masks, medical supplies, sanitary products, food, and other industries. It integrates PLC touch screen control, servo motor drive, and photoelectric correction technology, realizing fully automatic bag forming, sealing, and shrinking. The machine’s intermittent sealing design ensures tight and aesthetic seals, while the stainless steel body guarantees durability and easy cleaning. Supporting multiple languages and intelligent fault diagnosis, it meets the operational needs of global users and reduces maintenance costs, making it a reliable packaging solution for enterprises pursuing high efficiency and quality.

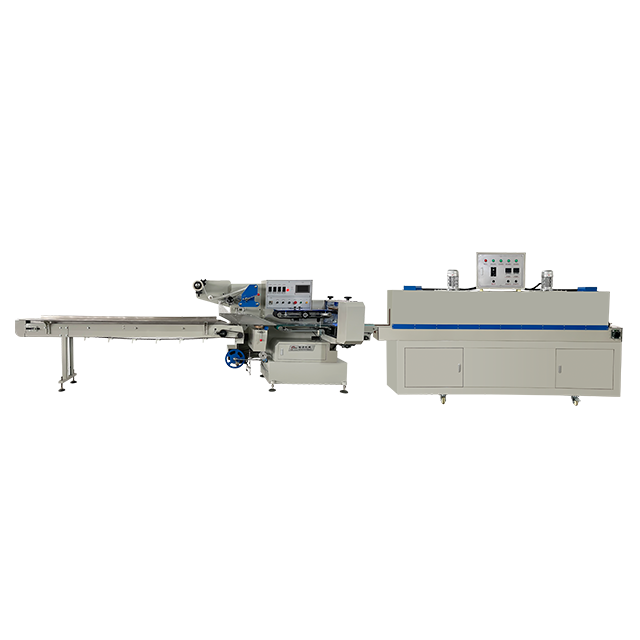

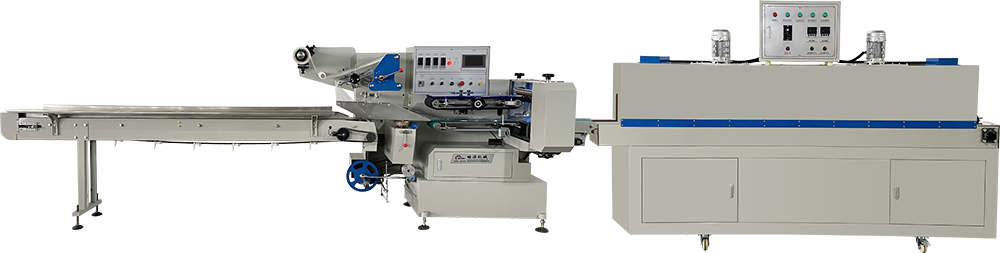

The pillow shrink wrap machine consists of a packing machine and a shrinking machine. The packing machine has a power consumption of 4.75KW and a power supply of 220V 50HZ/60HZ, while the shrinking machine consumes 13.5KW with a 380V 50HZ/60HZ power supply. The packaging speed varies by model: 30-150 bags per minute for model 120 and 150, 30-135 bags per minute for model 180, 30-100 bags per minute for model 210, and 30-80 bags per minute for model 240. The packing machine dimensions are 4800×1170×1500mm, and the shrinking machine is 2600×600×1700mm with a shrinking tunnel of 2300×250×200mm. The packing machine weighs 760KG, and the shrinking machine is 380KG. The machine also features automatic alarm reminders, automatic ingredient counting, and stacking functions, improving production management efficiency.
Max Flim size | ≤590mm | ||||||
Model | 120 | 150 | 180 | 210 | 240 | ||
Packing size | L ： | L:60-320mm | L:100-450mm | L:150-530mm | L:180-600mm | L:210-650mm | |
W： | W:10-200mm | W:10-200mm | W:10-200mm | W:10-200mm | W:10-250mm | ||
H： | H:5-35mm | H:35-70mm | H:65-100mm | H:80-130mm | H:100-150mm | ||
Packing speed | 30-150 | 30-150 | 30-135 | 30-100 | 30-80 | ||
Film type | PVC;POF;Shrinking Film | ||||||
Power consumption | Packing Machine：4.75KW；Shrinking Machine13.5KW | ||||||
Power supply | Packing Machine:220V,50HZ/60HZ;Shrinking:380V，50HZ/60HZ | ||||||
Packing machine dimensions | 4800x1170x1500mm | ||||||
Shrinking machine | Machine Size：2600x600x1700mm | Shrinking Tunnel：2300*250*200mm | |||||
Weight | Packing Machine：760KG | Shrinking Machine：380KG | |||||

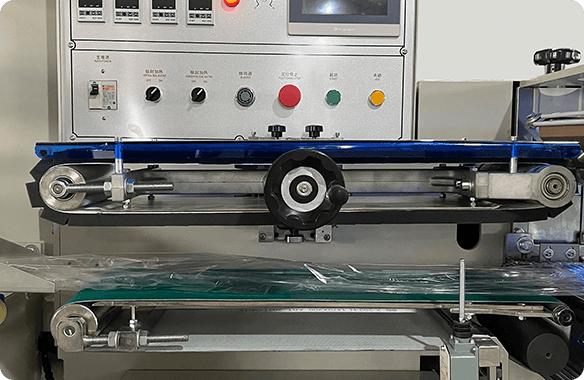

Equipped with an intelligent PLC touch screen, the machine supports Spanish, French, Korean, Russian, Japanese, Arabic, and other local languages. Operators can easily adjust packaging temperature, speed, and other parameters according to packaging materials, product thickness, and length. The intuitive interface simplifies operation and reduces training time.
Driven by a high-precision servo motor, the machine ensures stable and accurate packaging performance. The photoelectric correction function eliminates film margins and avoids faulty forming, ensuring each product’s packaging is neat and consistent. This technology significantly improves packaging quality and reduces material waste.
The entire machine is covered with stainless steel, featuring a sleek appearance, corrosion resistance, and easy cleaning. It meets food safety and medical hygiene standards, making it suitable for packaging products with strict hygiene requirements. The machine’s low running and maintenance costs are achieved through standardized components and simple structure design.
Adopting intermittent sealing technology, the machine ensures the seal is tight, aesthetic, and leak-proof. This design is particularly suitable for packaging products that require airtightness, such as food and medical supplies. The sealing temperature and pressure are adjustable to adapt to different film materials.
With five models (120, 150, 180, 210, 240), the machine can adapt to various product sizes. The packaging specifications can be freely switched without replacing major components, supporting products with lengths from 60mm to 650mm, widths from 10mm to 250mm, and heights from 5mm to 150mm. It also supports PVC, POF, and other shrinking films, meeting diverse packaging needs.
Ideal for packaging disposable masks, medical surgical masks, and KN95 masks. The machine’s tight sealing and shrink wrapping ensure the masks are sterile and protected from moisture and dust during storage and transportation. It supports both single-mask and multi-mask packaging.
Suitable for packaging medical dressings, syringes, medical gloves, and other medical devices. The machine’s hygiene-friendly design and leak-proof sealing meet medical industry standards, ensuring the safety and sterility of medical supplies.
Can package sanitary napkins, panty liners, adult diapers, and other sanitary products. The shrink wrapping provides a moisture-proof and dust-proof barrier, extending the product’s shelf life. The flexible packaging sizes adapt to different product specifications.
Perfect for packaging snacks, cooked food, instant noodles, and other food products. The machine’s food-grade stainless steel body and adjustable temperature control ensure food safety. The shrink wrapping also enhances the product’s appearance and shelf appeal.
The machine supports PVC, POF, and other common shrinking films. These films have excellent shrinkage performance, ensuring tight packaging and good transparency, suitable for different product materials and packaging requirements.
The packaging speed varies by model, ranging from 30-150 bags per minute. Model 120 and 150 offer the highest speed (30-150 bags/min), while model 240 is designed for larger products with a speed of 30-80 bags/min. You can choose the appropriate model based on your production volume.
Yes, the machine’s PLC touch screen supports multiple local languages, including Spanish, French, Korean, Russian, Japanese, and Arabic. This allows operators from different regions to use the machine conveniently without language barriers.
The packing machine requires a 220V 50HZ/60HZ power supply, and the shrinking machine needs 380V 50HZ/60HZ. Please ensure your workshop’s power supply meets these requirements before installation. The total power consumption is 18.25KW (4.75KW for packing machine +13.5KW for shrinking machine).
