Suitable for biscuits, packaging of all kinds of objects with regular solid state, such ,as bread ,speed wheaten food, moon ,cake ,candy ,medicines, daily necessities, hardware, paper carton or goods with tray etc.
| Quantity: | |
|---|---|

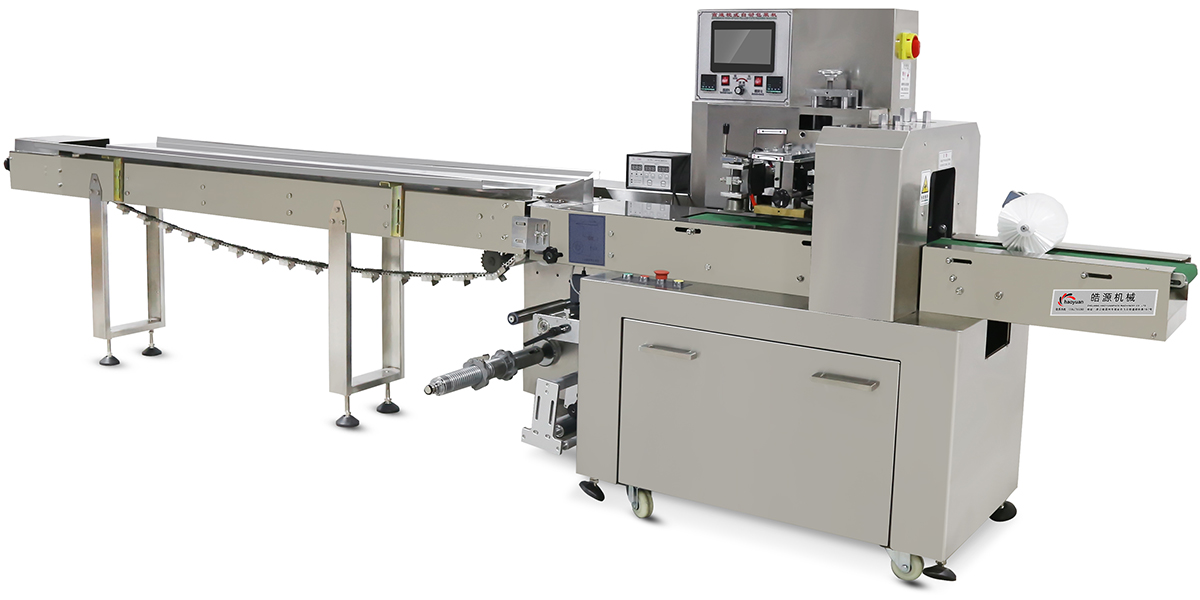

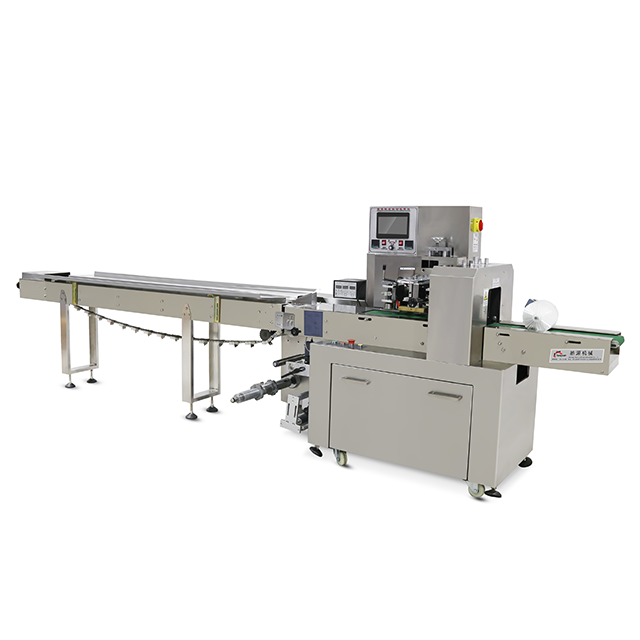

The KD-260 Regular Solid Packaging Machine is a horizontal flow wrapping system designed for pillow pack packaging of regularly shaped solid items across food, pharmaceutical, and consumer goods sectors. Manufactured with powder-coated carbon steel frame and 304 stainless steel product contact surfaces, the machine operates at variable speeds to accommodate both small batch runs and high-volume production lines. The unit forms, fills, and seals packages in a continuous motion, compatible with most heat-sealable flexible films used in commercial packaging operations. Standard delivery includes one set of forming shoulders for specified product dimensions, with custom forming sets available for unique product shapes.
Parameters measured with 60μm BOPP film, 50g biscuit products, at 20°C ambient temperature and 50% relative humidity.
Parameter | KD-260 Regular Solid Packaging Machine |
|---|---|
Packaging speed | 30-220 bags/min |
Packing length | 40-500mm |
Packing width | 20-100mm |
Packing height | 1-50mm |
Maximum film width | ≤250mm |
Maximum film roll diameter | ≤380mm |
Compatible film materials | BOPP/PE/PET/VMCPP |
Operation height | 750-850mm |
Power supply | 2.8KW, 220V 50/60Hz, single phase |
Dimensions (L×W×H) | 4600×830×1350mm |
Machine weight | 700kg |
 |  |
 |  |
The machine utilizes a servo-driven film feed system with speed adjustable from 30 to 220 bags per minute, selectable via touchscreen interface. Speed ranges are optimized for different product types: 30-80 bags/min for delicate bakery items, 80-150 bags/min for confectionery, and 150-220 bags/min for hard goods including hardware components. Acceleration and deceleration ramps are programmable to prevent product shifting during high-speed operation.
The conveyor and sealing head assembly adjusts vertically between 750mm and 850mm from floor level, accommodating operators of different heights and integration with existing production line conveyor heights. Height adjustment is performed via hand crank with position indicator, requiring no tools for changes.
The machine includes physical guards over all moving cutting and sealing components, with safety interlocks that stop operation when guards are opened. Warning labels are placed at heat and pinch points, with emergency stop buttons positioned at infeed, outfeed, and main control panel locations. All electrical components meet IP54 protection rating for dust and water splash resistance.
The photoelectric eye detects print marks on packaging film with 0.3mm precision, maintaining package length consistency within ±1mm across production runs. The system automatically compensates for film stretch and print registration variations, reducing film waste during startup and production.
For biscuit, cookie, and cracker products, the machine works with BOPP and VMCPP films to provide moisture barrier protection, maintaining product crispness for shelf lives of 6-12 months. The gentle product handling system accommodates delicate items without breakage, with infeed conveyors configurable for both single and multi-row product loading.
The unit packages hard candy, chocolate bars, granola bars, and extruded snacks at production speeds matching most snack food processing lines. Seal temperature and pressure are adjustable to accommodate heat-sensitive chocolate products without melting or deformation during packaging.
For solid dose pharmaceutical products including tablets, capsules, and blister packs, the machine operates with PET and PE films providing tamper-evident seals. The stainless steel contact surfaces support cleaning with 70% isopropyl alcohol solutions, meeting GMP requirements for pharmaceutical packaging areas.
The machine packages small hardware components including fasteners, fittings, and small tools, using PE films for puncture resistance during transportation. It also accommodates solid consumer items including soap bars, toothbrushes, and stationery products, with optional date coding printers available for batch and expiration marking.
The infeed conveyor stands at standard 800mm height, matching most food processing conveyor systems. The outfeed can be configured to discharge directly onto takeaway conveyors or into collection bins, with optional automatic counting and batch stacking systems available for integration into fully automated packaging lines.
Daily cleaning involves removing product debris from sealing areas and wiping down contact surfaces. Weekly tasks include checking belt tension and lubricating conveyor bearings. Seal jaws typically require replacement after 3-6 million cycles depending on film type and operating temperature, with replacement parts available for shipment within 48 hours.
Most heat-sealable films within the specified thickness range (40-100μm) can be run by adjusting temperature and pressure settings via the touchscreen. Forming shoulders may require changing when switching between significantly different bag widths.
The standard machine accepts products up to 50mm in height. Customized seal jaw configurations are available for products up to 70mm height, with corresponding reductions in maximum packaging speed.
Date coding is available as an optional add-on, including both hot stamp printers and thermal transfer overprinters. The machine provides a trigger signal for printer activation, synchronized with each package cycle.
The standard unit operates on 220V single-phase 50/60Hz power, drawing 13A at full load. For regions with 110V power systems, a step-up transformer is available as a factory-installed option.
