1.The machine operates smoothly and continuously, ideal for bag sealing of granular products.
2. Fully automatic bagging with photoelectric calibration ensures edge-free packaging through die-casting molding.
3. The equipment features adjustable feeders configured according to material weight specifications.
4. Utilizes Panasonic PLC imported from Japan, enhancing accuracy and ensuring high operational stability.

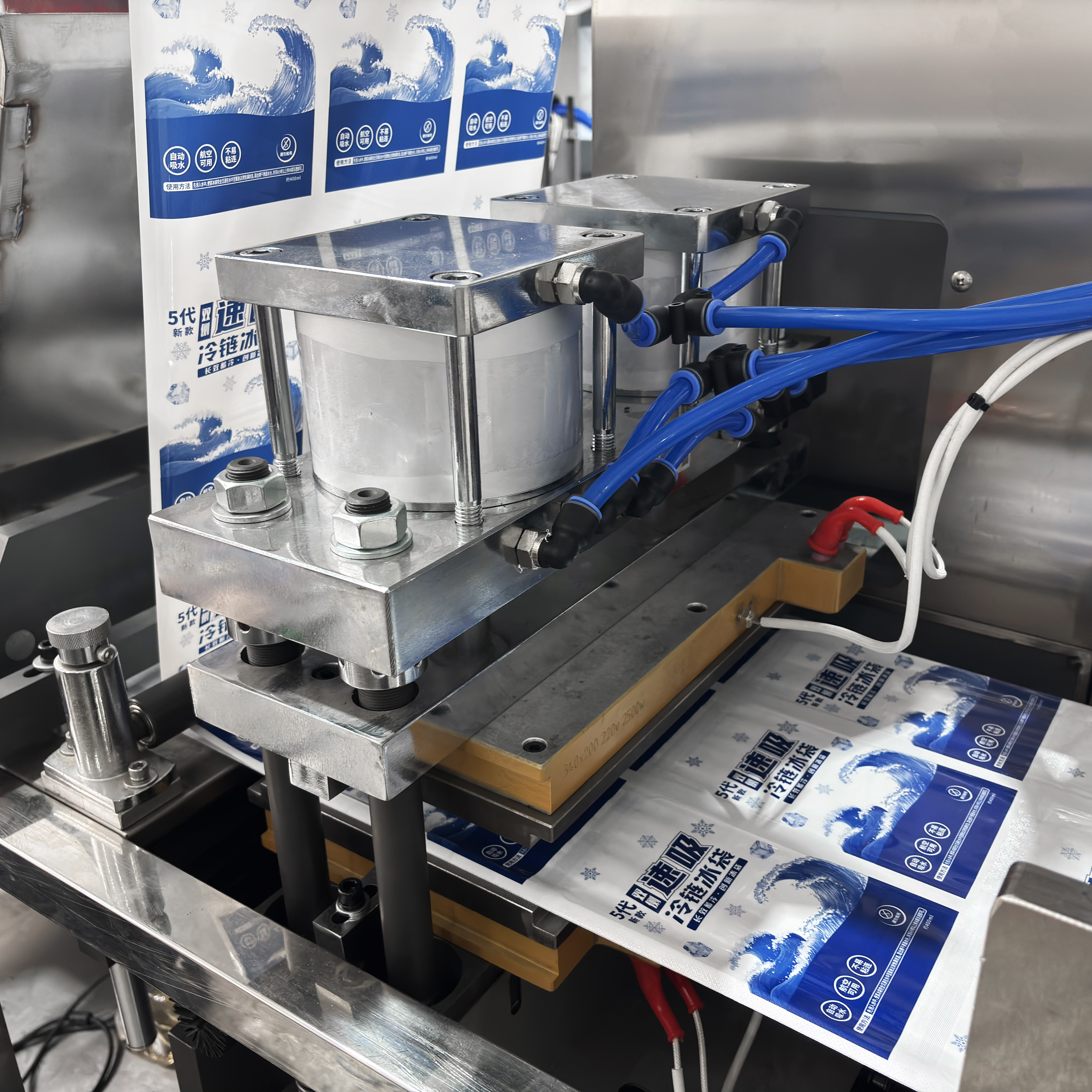

5. Improved intermittent sealing guarantees aesthetic closure while preventing leaks.
6. User-friendly operation with PLC touchscreen allows adjustment of packaging temperature and speed based on material type, product thickness, and length. Servo motor drives combined with photoelectric and pneumatic controls enable self-diagnosis of faults with clear display. The system supports multilingual interface including Spanish, French, Korean, Russian, Japanese, and Arabic.
7. Stainless steel casing ensures a sleek appearance, easy maintenance, and low operational costs. 8. Intelligent PLC temperature control system.
9. Automatic alarm alerts for required quantities, along with automated material dispensing and stacking.

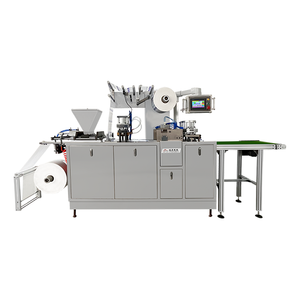

Model and Specifications | Ice Bag Machine NBB-330B |
Production speed | 30 - 400 packages / pcs |
Type of bag packaging | Seal on each side |
| Product dimensions | Decision based on the mold |
Formula for calculating the width of a thin film | Decision based on the mold |
Calculation formula for bag length | Decision based on the mold |
Width of the packaging film | ≤330mm |
Outer diameter of the packaging film | ≤400mm |
Material of the packaging film | Non woven thin film composite paper film |
Air pressure | 8Mpa |
Machine operating height | 930mm |
Total power | 4.5KW |
Type of power source | 380kw50 / 60HZ Three Phase |
Weight of the machine | 1200kg |
