This machine works smoothly and continuously, and is suitable for packing bags for particles.

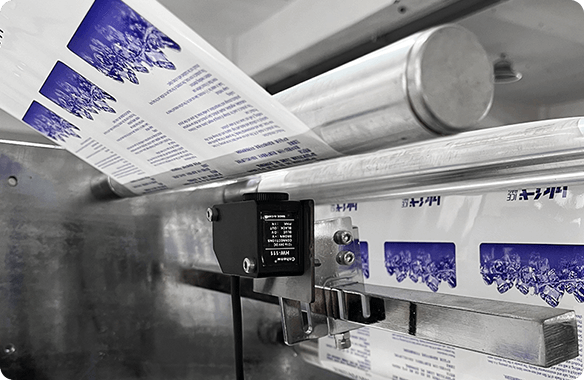

Completely automatic bag packing, photoelectric correction, no margin, mold forming.
The equipment can configure the lowerer according to the weight of different materials.
The use of Japan imported Panasonic plc, accuracy and accuracy to improve the stability of the equipment.

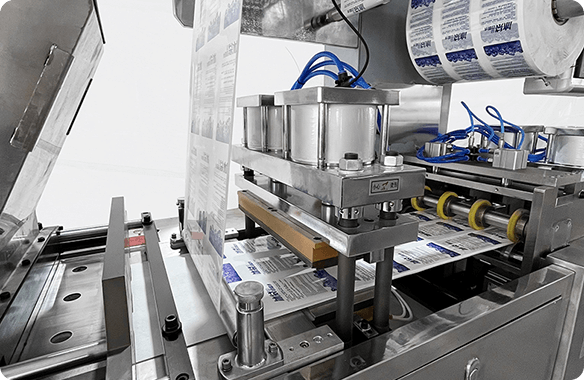

Intermittent sealing is better to ensure the aesthetics of the seal and avoid leakage.
The machine is easy to operate, PLC touch screen, according to the packaging materials, product thickness and length to adjust the packaging temperature.
Temperature and speed. A servo motor. With the control of light, electricity, and gas, the fault can self-diagnose, display clearly, and operate.
The system language can be used in Spanish, French, Korean, Russian, Japanese, Arabic and other local languages.
The whole machine is covered with stainless steel, which has good appearance and is easy to clean and durable. Running and maintenance costs are low.
Intelligent PLC temperature control.
Number of automatic alarm reminders required, number of automatic ingredients and stacking required
Completely automatic bag packing, photoelectric correction, no margin, mold forming.
The equipment can configure the lowerer according to the weight of different materials.

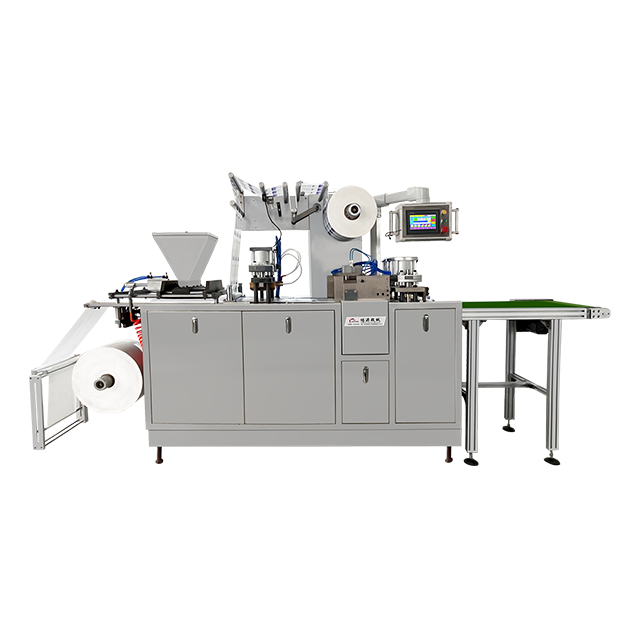

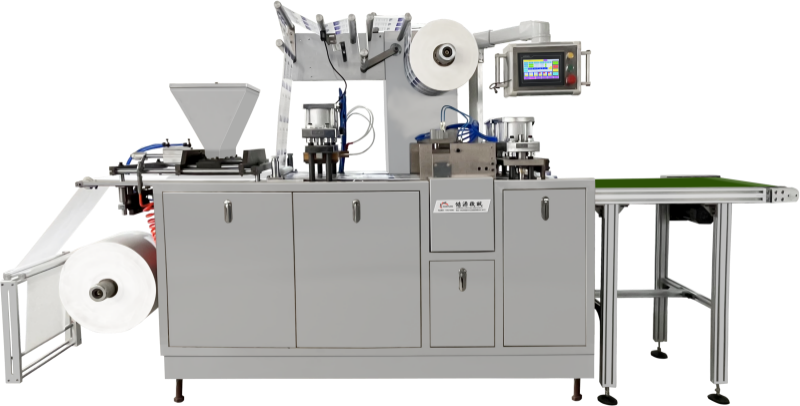

Model and Specifications | Ice Bag Machine NBB-330B |
Production speed | 30 - 400 packages / pcs |
Type of bag packaging | Seal on each side |
| Product dimensions | Decision based on the mold |
Formula for calculating the width of a thin film | Decision based on the mold |
Calculation formula for bag length | Decision based on the mold |
Width of the packaging film | ≤330mm |
Outer diameter of the packaging film | ≤400mm |
Material of the packaging film | Non woven thin film composite paper film |
Air pressure | 8Mpa |
Machine operating height | 930mm |
Total power | 4.5KW |
Type of power source | 380kw50 / 60HZ Three Phase |
Weight of the machine | 1200kg |
Machine dimensions | 3380x700x1700mm (L x W x H) |
