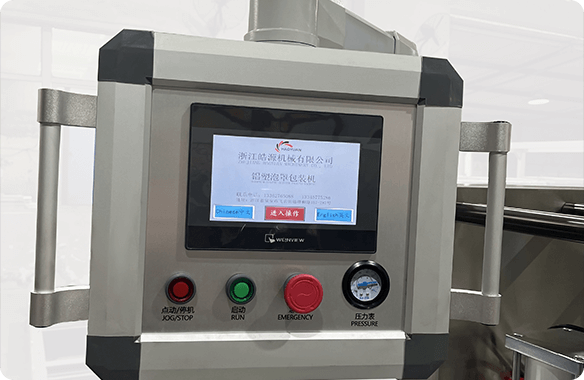

The traction uses servo motor drive technology (precision screw traction), synchronous and accurate, the length of the trip can be set by an machine interface.

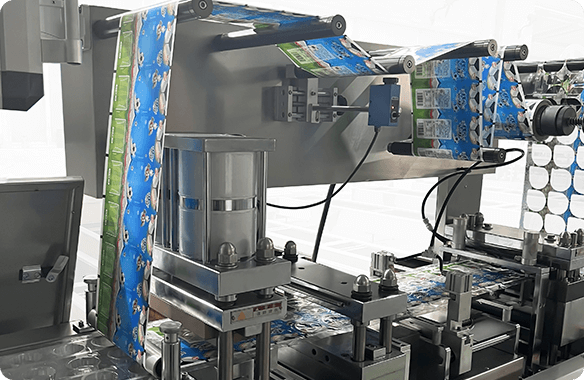

Configure the cursor sealing device to make the layout consistent and clear and pleasing.
The function of aluminum plastic (thermal molding) / aluminum aluminum (cold molding) is converted. When implementing aluminum-aluminum packaging, simply replace the mold.
The utensil and the corresponding grease equally suffice.
A variety of aluminum packaging additives have successfully solved the difficulty of rapid operation of various types of amorphous tablets.

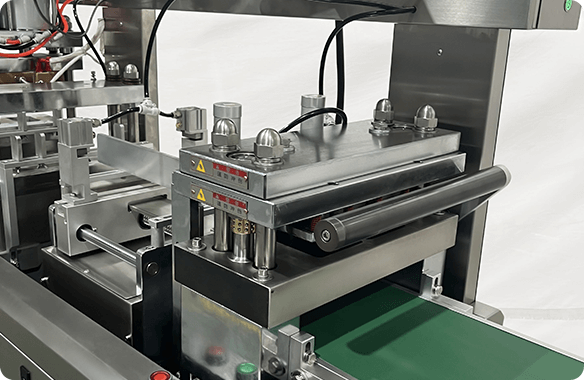

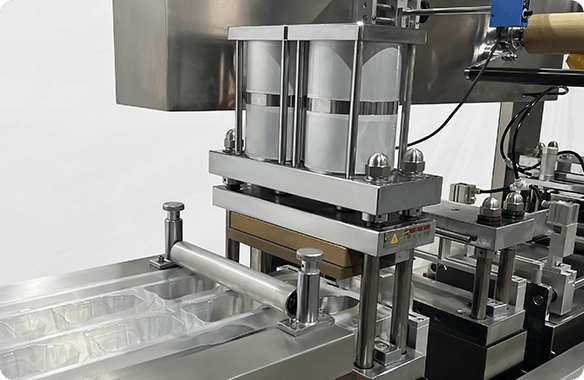

The moulding, hot sealing, stamping, cutting and other workplaces are all positioned by the same flower key center axis, and each workspace can be independently moved, making calibration convenient.
The novel mold positioning device meets the general requirement for rapid mold changing.
Equipped with an organic glass cover, the operation area is completely isolated from the transmission mechanism, eliminating pollution, and easy to clean daily.
You can choose the function of automatic online detection and removal of defects and scraps, and you can also configure an imported image detection device according to user requirements.

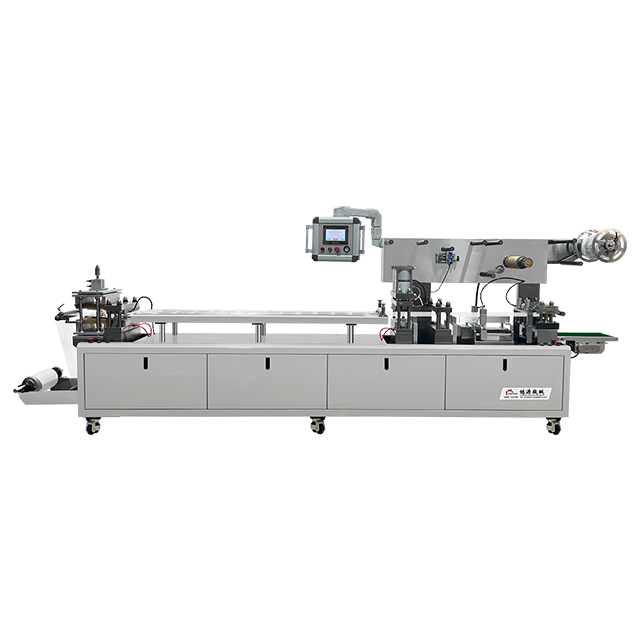

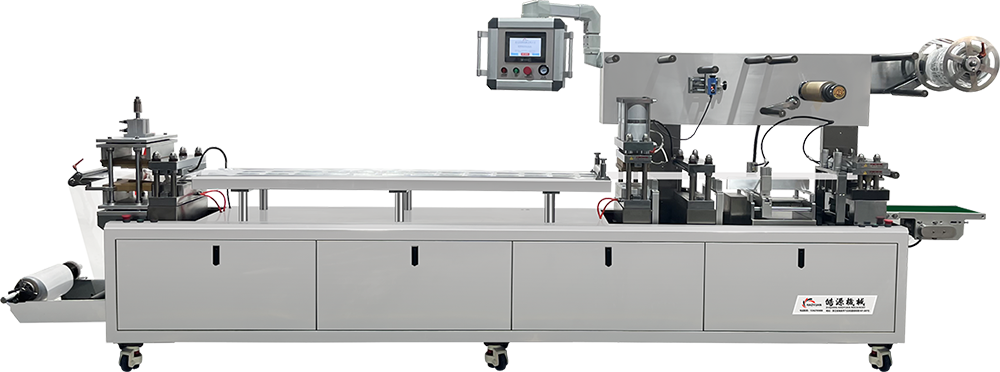

Model | DPP-420 hard blister packing machine |
Blanking frequency (times/min) | 10-15 |
Maximum molding area and depth (mm) | 390×140×26 (Standard depth: 14) |
Travel range (mm) | 40-150 (can be increased to 180mm according to user requirements |
Air pressure (mpa) | 0.4-0.6 |
Air flow | ≥0.35m3/min |
Total power of supply | 380V/220V 8.2kw |
Main motor power (kW) | 2.2 |
PVC sheet (mm) | 0.25-0.5×400 |
PTP Aluminum foil (mm | 0.02-0.035×400 |
Dialysis paper (mm) | 50-100g×400 |
Die cooling | Tap water or recycled water |
Overall dimensions (mm) | 4750×881×1700（L×W×H） |
Machine weight (kg) | 2100 |
