1.the machine plate heating, positive press forming (supporting), automatic feeding (supporting), automatic blanking plate.
2.equipped with induction self-checking device, automatically eliminate the missing bottle tray.

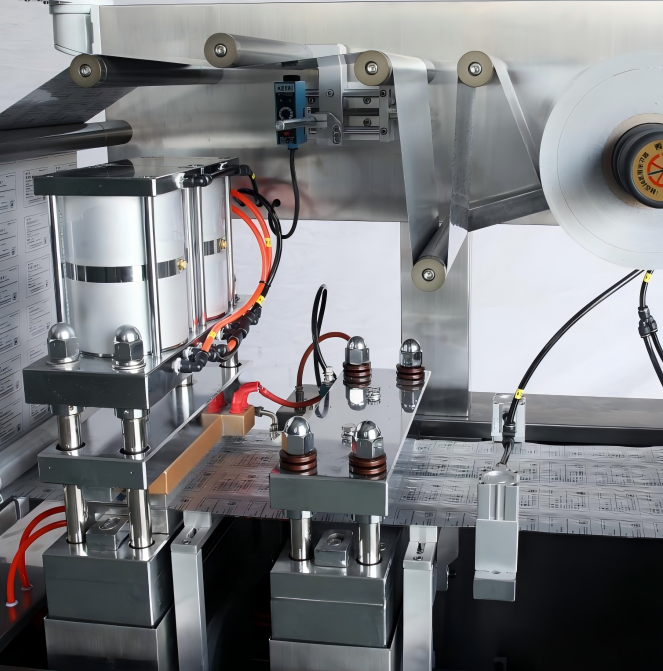

3.forming, heat sealing, batch number indentation, punching and other devices are all located by the mandrel with rack.Shake the handle, all kinds of devices can be easily moved on the spindle, the machine is equipped with a scale,calibrationConvenient, fast and accurate positioning.
4.the front section of the equipment can be connected with the labeling machine horizontally, and the back section can be connected with the box filling machine to fully realize the integration Line automation. (Various specifications of supporting molds can also be configured
according to needs.)

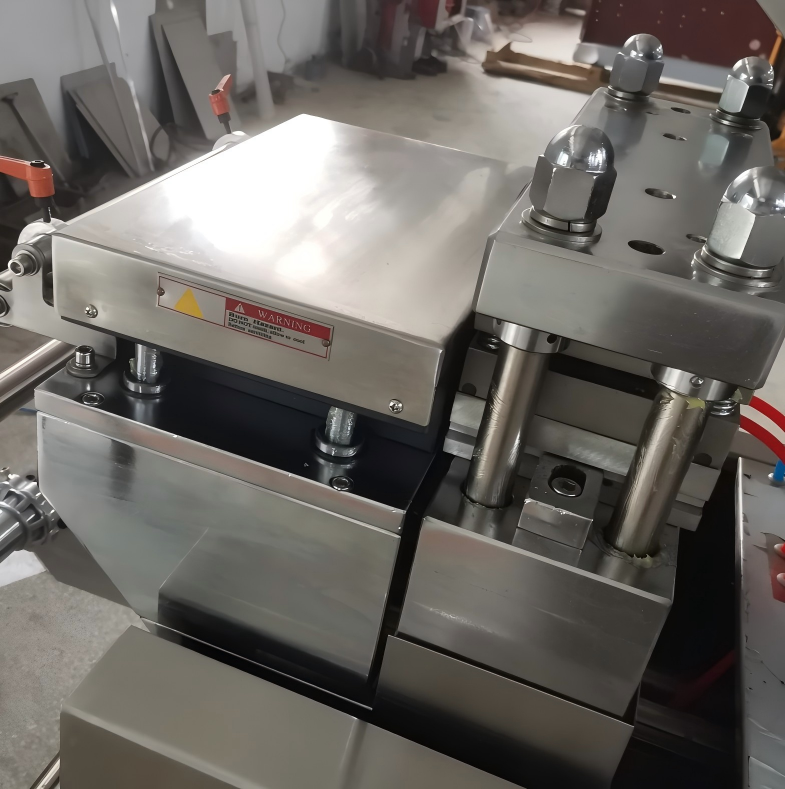

5.the main transmission part adopts parallel shaft helical gear reducer, forming,heat sealing, indentation and other molds adopt Shaw Nail positioning, clamping plate, easy to change mold, save packaging materials.

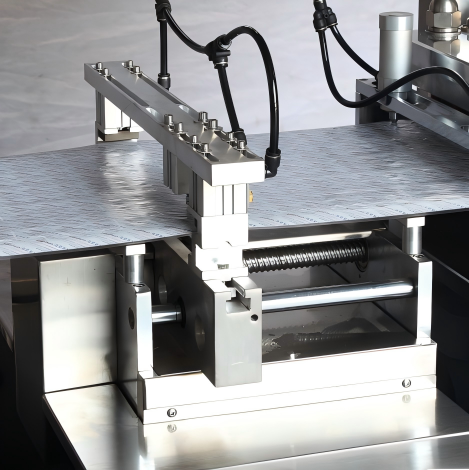

6.traction using servo motor drive technology (precision screw traction),synchronous accuracy, stroke length by The man-machine interface is set at will.

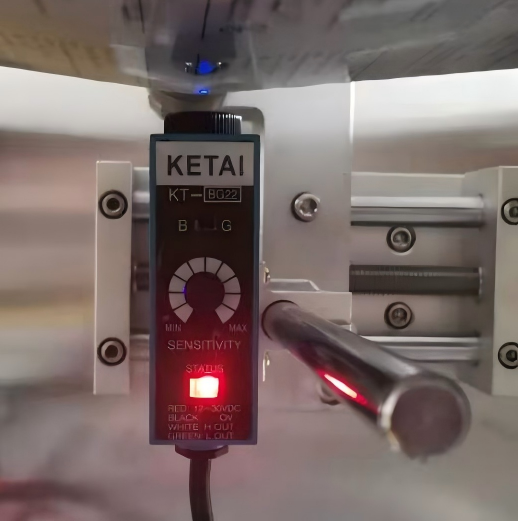

7.configure the cursor to the plate sealing device, so that the plate pattern is consistent, clear and pleasing to the eye.
8.the novel mold positioning device, to meet the common requirements of rapid mold change.
9.optional plexiglass cover, so that the operation area and the transmission mechanism are completely isolated, eliminate pollution, easyDaily cleaning.

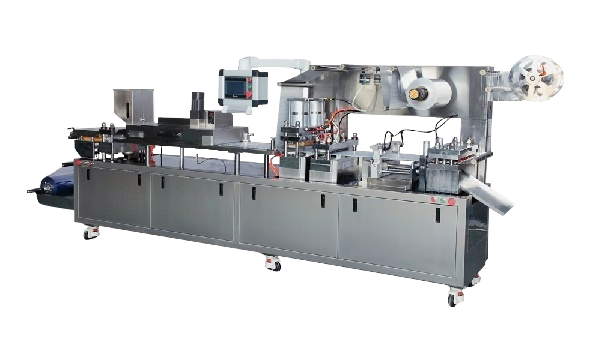

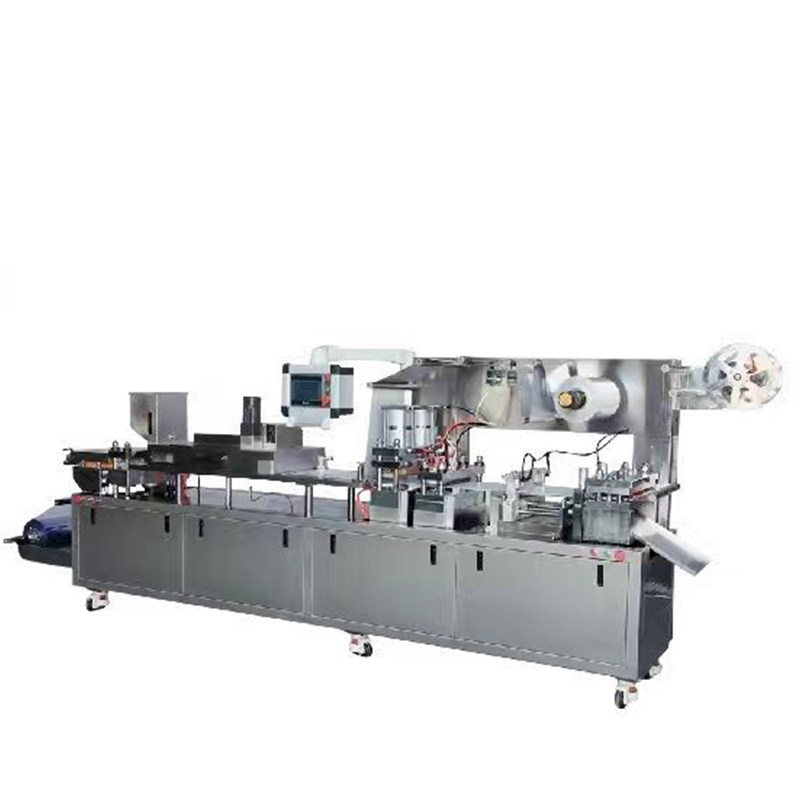

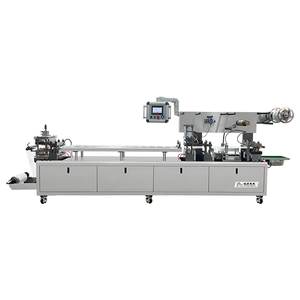

Model | DPP-420 |
Blanking frequency (times/min) | 10-30 |
Maximum molding area and depth (mm) | 390×140×26 (Standard depth: 14) |
Travel range (mm) | 40-150 (can be increased to 180mm according to user requirements |
Air pressure (mpa) | 0.4-0.6 |
Air flow | ≥0.35m3/min |
Total power of supply | 380V/220V 8.2kw |
Main motor power (kW) | 2.2 |
PVC sheet (mm) | 0.25-0.5×400 |
PTP Aluminum foil (mm) | 0.02-0.035×400 |
Dialysis paper (mm) | 50-100g×400 |
Die cooling | Tap water or recycled water |
Overall dimensions (mm) | 4000×850×1600(L×W×H) |
Machine weight (kg) | 2100 |
