1. This machine operates smoothly and continuously, suitable for various mask medical supplies, hygiene products, food and other product sets Bag sealing.
2. Fully automatic bagging, photoelectric correction, no burrs, fault forming.
3. The equipment can be configured with feeders according to different types.
4. Adopting Panasonic PLC imported from Japan, the accuracy is improved and the equipment stability is high.
5. Intermittent sealing is better to ensure the aesthetic appearance of the seal and avoid leakage.

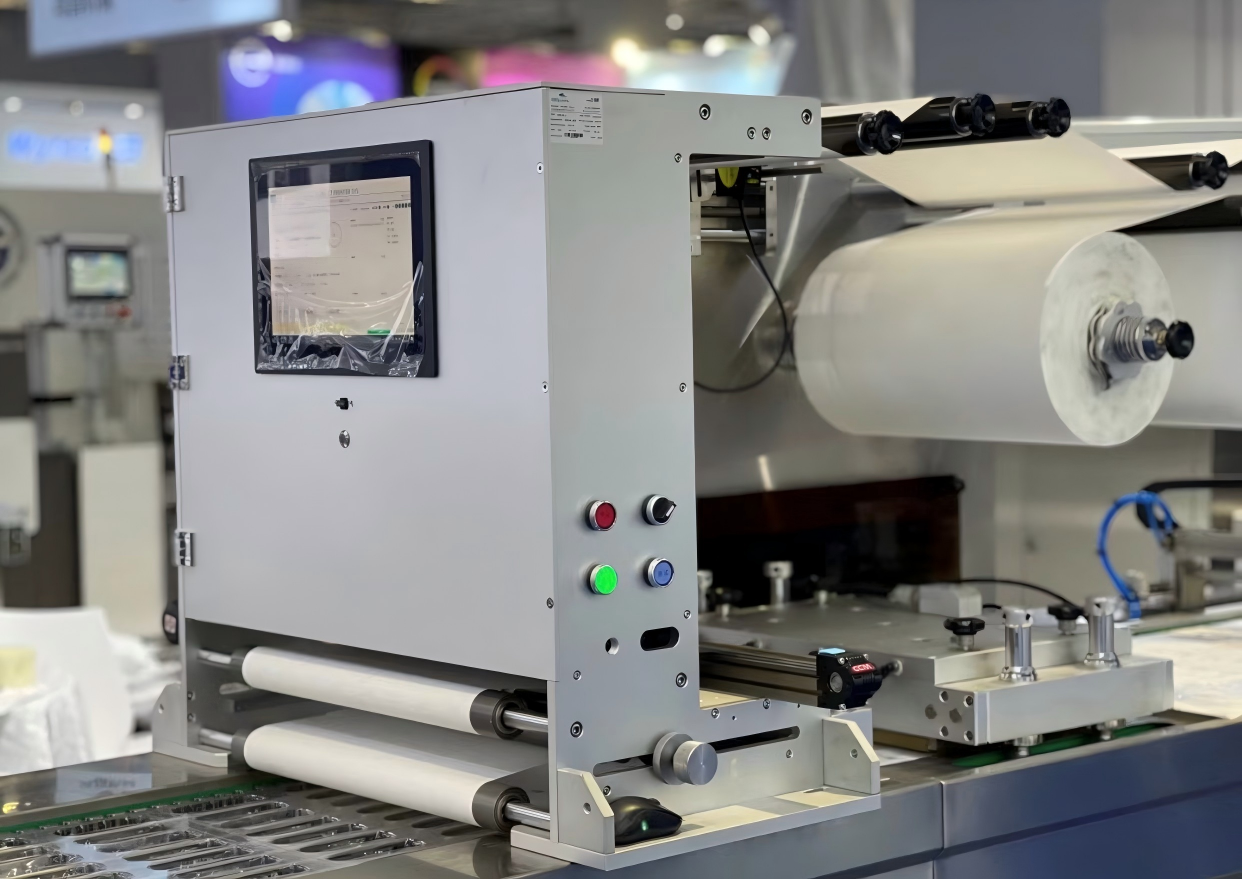

6. This machine is easy to operate, with a PLC touch screen that can adjust the packaging temperature according to the packaging material, product thickness, and length.
7. The whole machine is covered with stainless steel, which has a good appearance and is also easy to clean and durable. Low operation and maintenance costs.
8. Intelligent PLC temperature control.
9. Automatic alarm reminders for the required quantity, automatic batching and stacking of the required quantity.
10. Touch screen can set the langauge you want.
| Quantity: | |
|---|---|

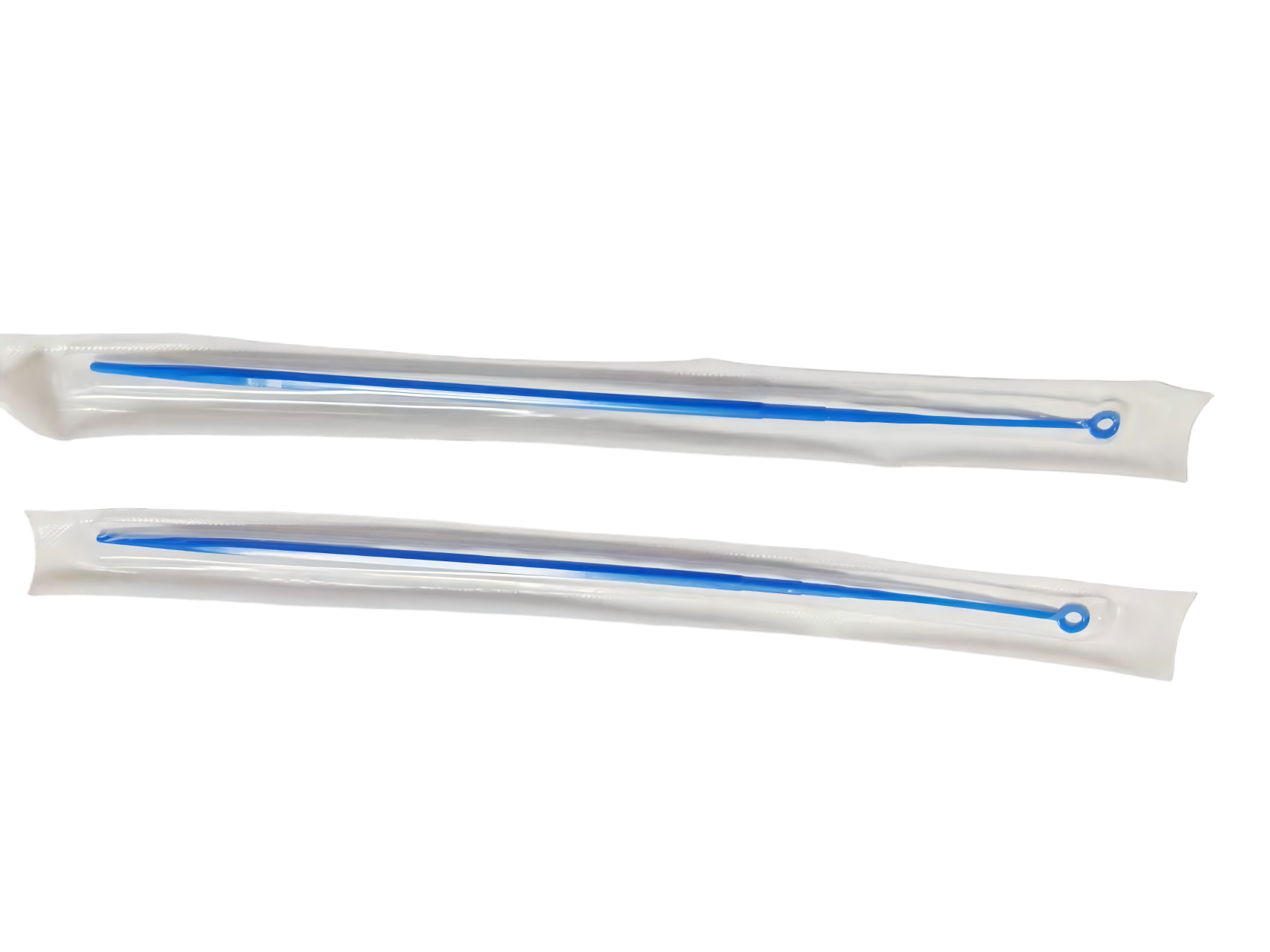

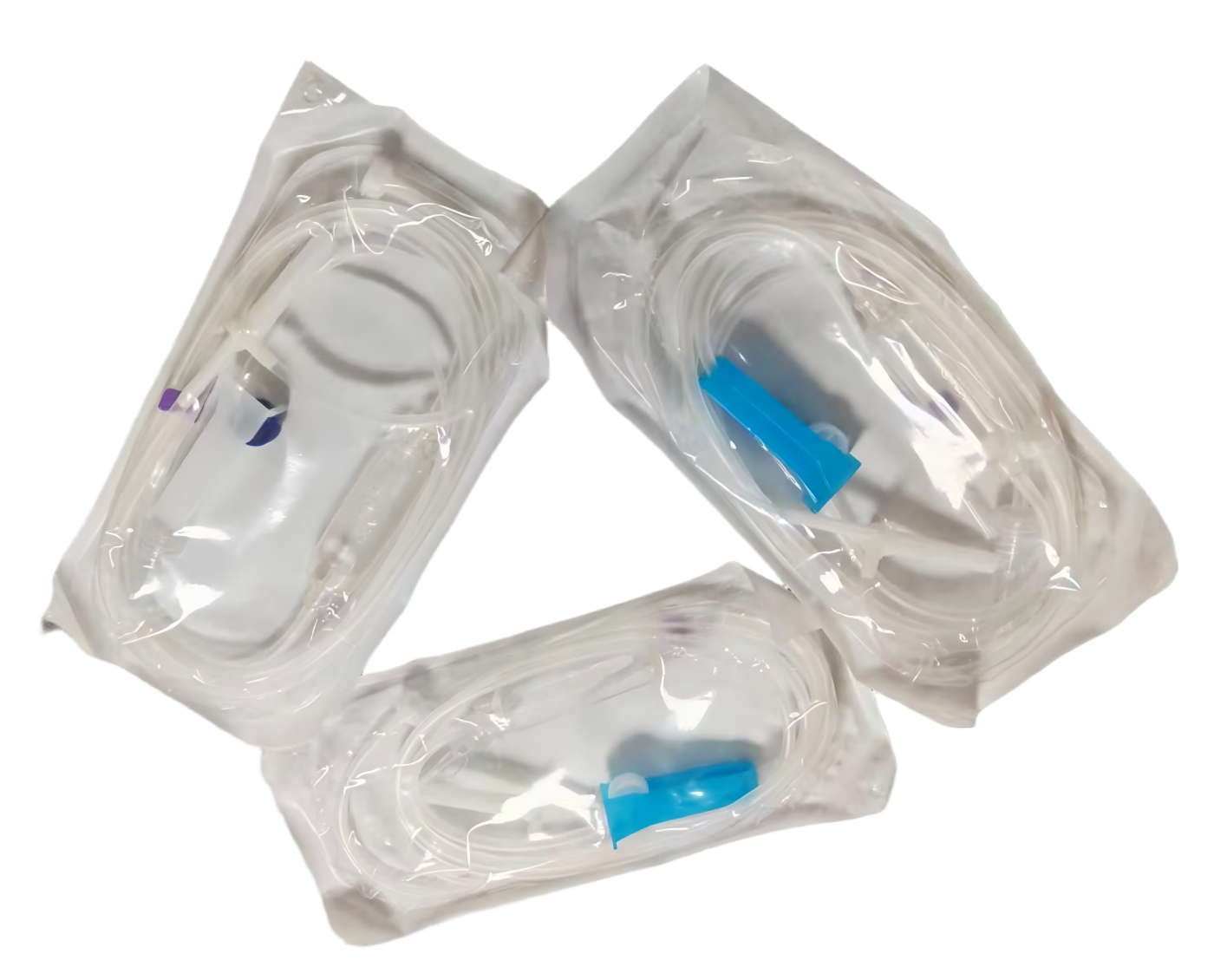

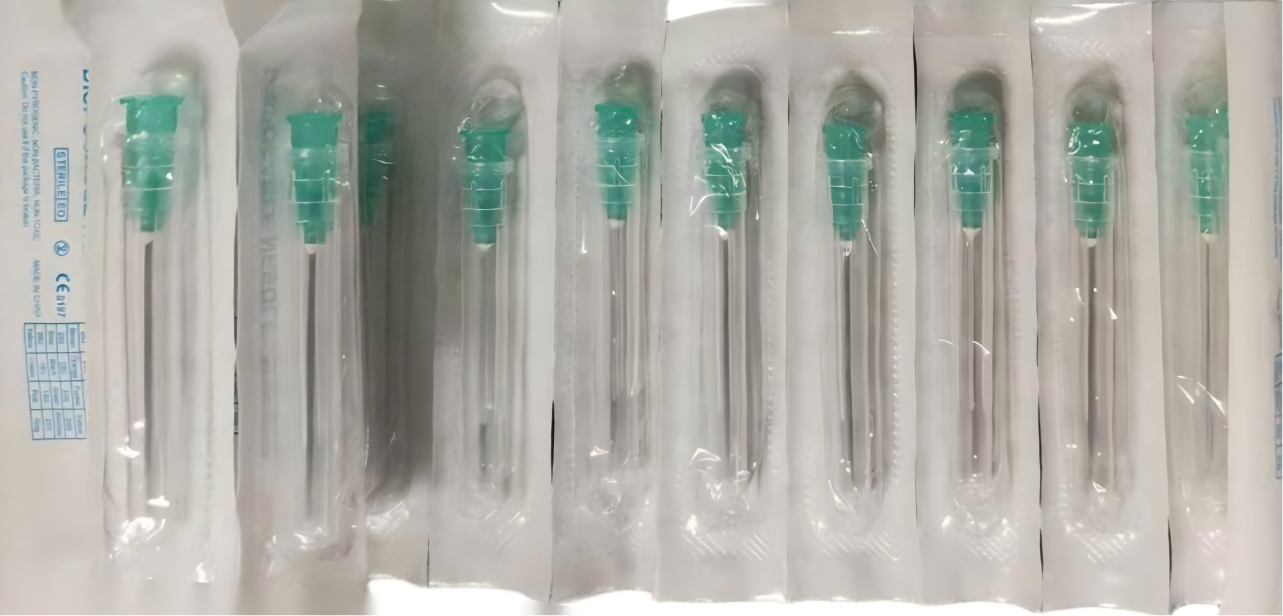

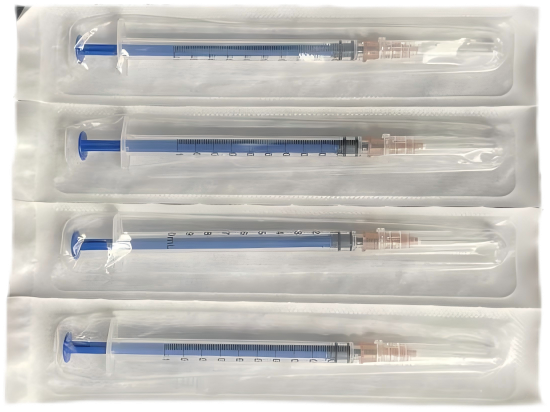

1.This machine is widely used in paper-PE blister packing for medical appliances (such as syringe needle, injector, pledged)

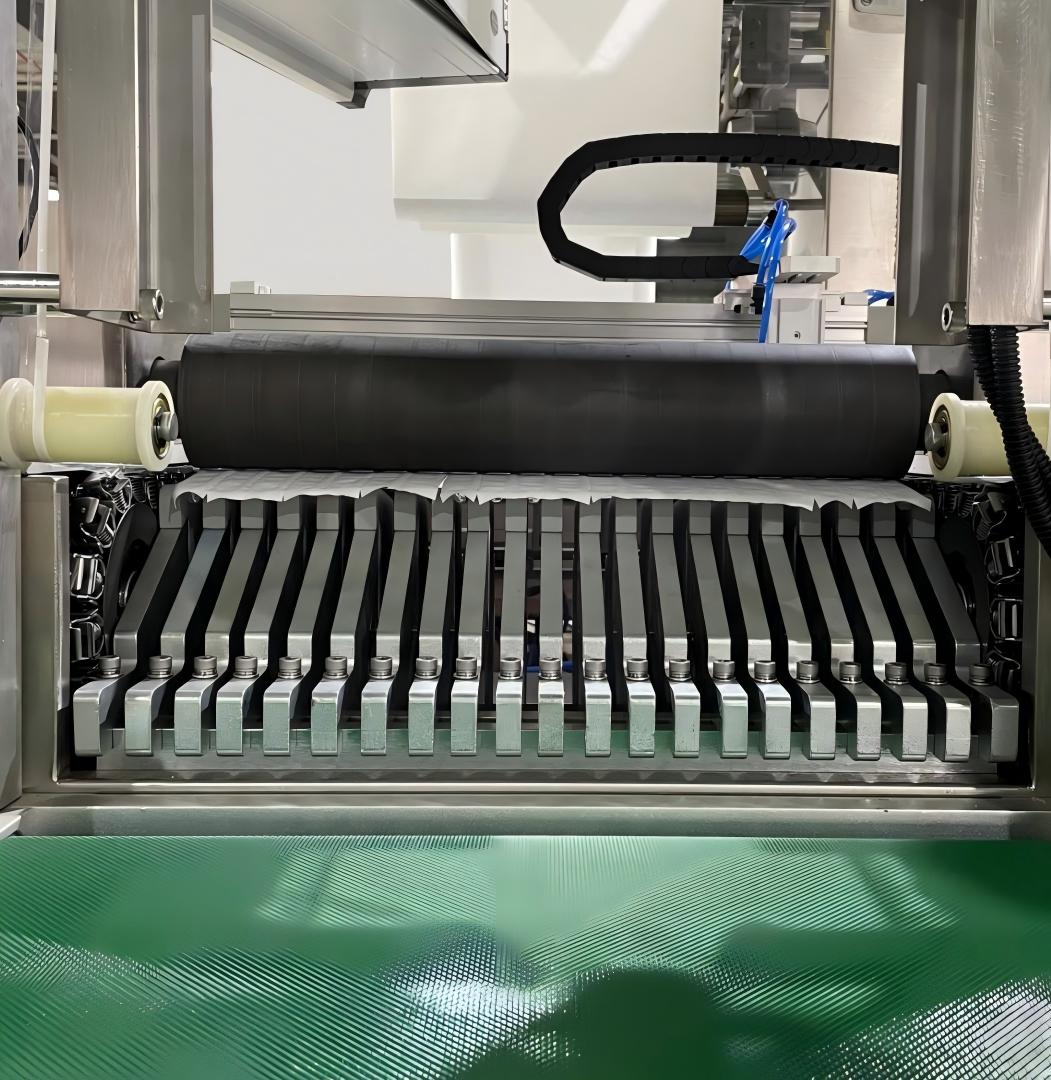

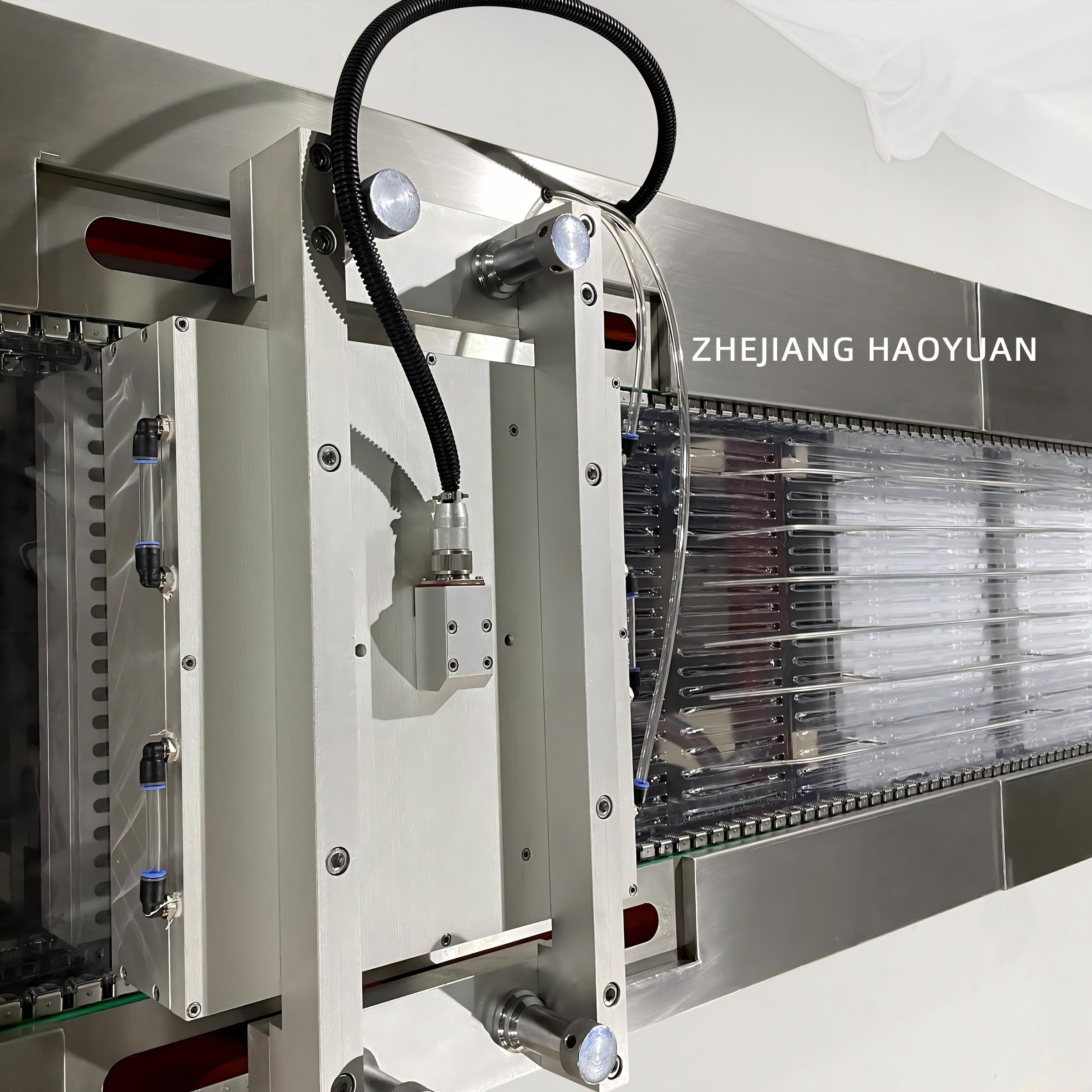

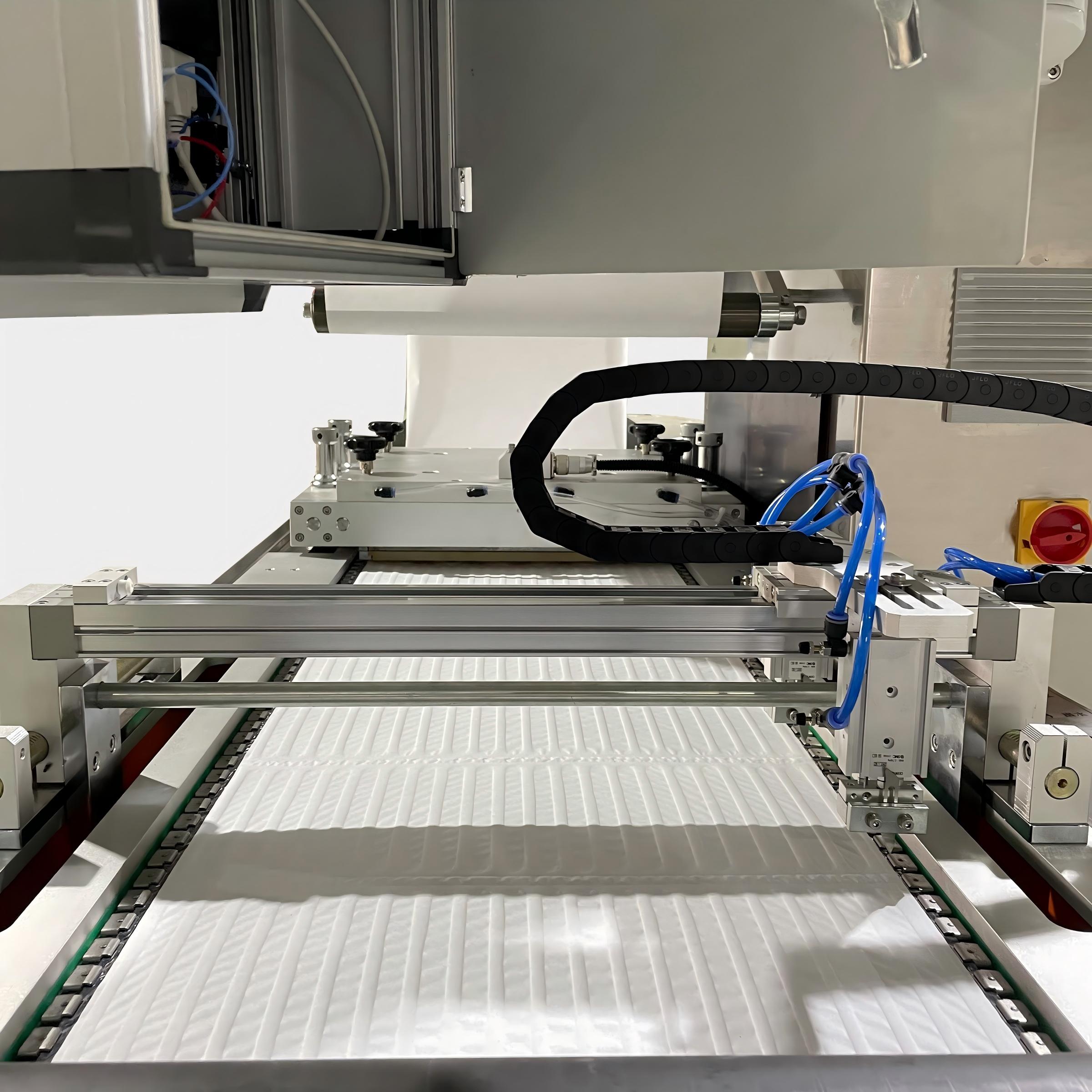

2.It can continuously finish the full processing of heating in machine for PE film, forming the blister, falling appliances, sealing, batch number printed, vertical and cross cutting and transfer the final product.
3.Specific feeder can be configured according to different material.
4. Mitsubishi (JAPAN) PLC,temperature control and Servo Motor, insure the accuracy and high stability.
5. Intermittent sealing ensure the aesthetic of product and avoid leakage.
6. Stainless Steel body, good appearance, easy to clean and durable.

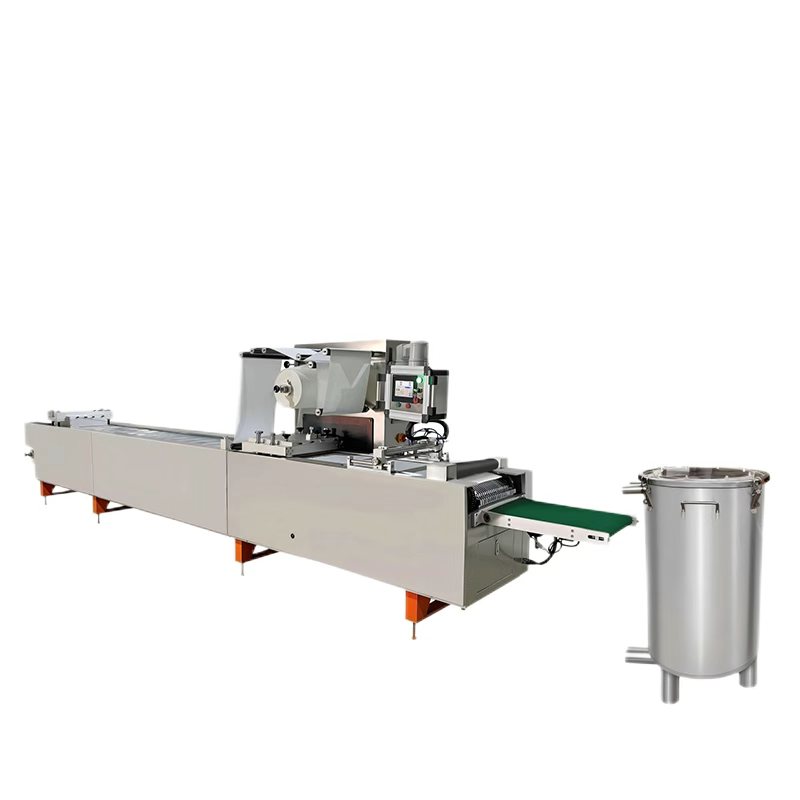

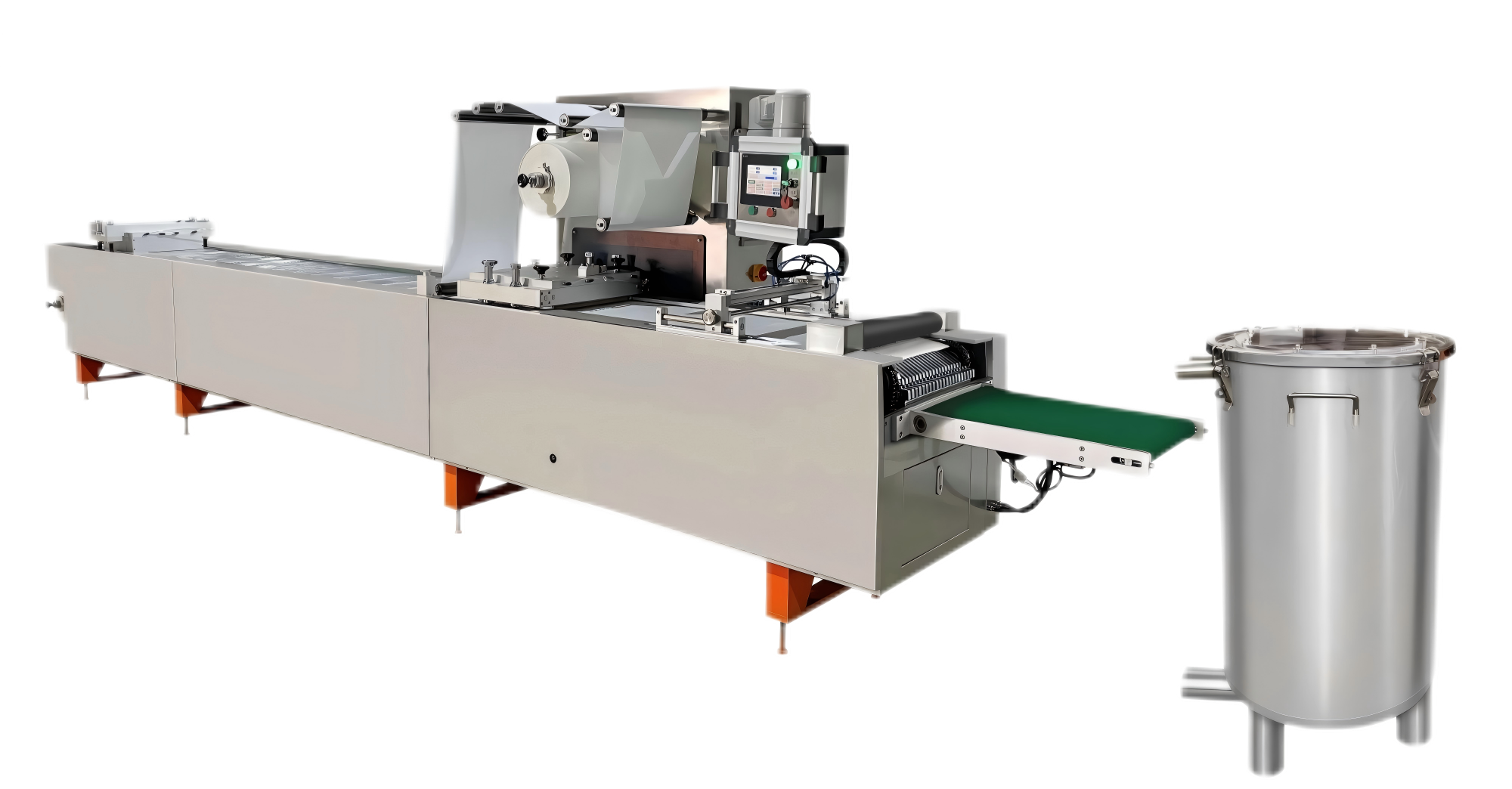

Model | HY-520 |
Production speed | 5-12 stroke/min |
Bag packing type | Four Side-Sealing |
Package product size | (L)5-400mm (W)5-500mm（H）1-60mm |
Film width calculation formula | According to the mold |
Width of packing film | ≤525mm |
Outer diameter of packaging film | ≤350mm |
Packaging film material | PE PE composite PET / Paper |
Air pressure | 6Mpa |
Machine operating height | 930mm |
Total power | 16KW |
Voltage | 380V 50/60HZ |
Weight | 2600kg |
Size (L x W x H) | 6520x1257x1720 |
