Fully automatic bagging, photoelectric correction, no burrs, mold forming.
The equipment can be configured with feeders according to different material weights.
Equipped with imported Panasonic PLC from Japan, improving accuracy and ensuring high equipment stability.
Intermittent sealing provides better performance, ensuring aesthetic sealing and preventing leakage.

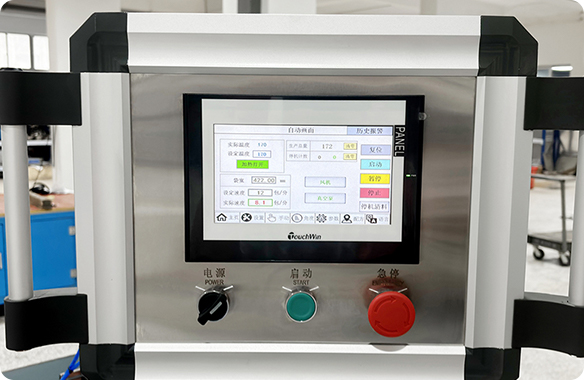

The machine is easy to operate, featuring a PLC touchscreen that allows adjustment of packaging temperature and speed based on packaging materials, product thickness, and length. Servo motor. Through optical, electrical, and pneumatic control, the system can perform self-diagnosis for faults, with clear display. The operating system supports local languages such as Spanish, French, Korean, Russian, Japanese, Arabic, etc.
The entire machine is covered with stainless steel, offering a good appearance, easy cleaning, and durability. Low operation and maintenance costs.
Intelligent PLC temperature control.
Automatic alarm reminder for required quantities, automatic batching and stacking of specified quantities.
Model specifications | Fully automatic bag packaging machine (double push) |
Bag dimensions | Width: 70-175 mm Length: 150-320 mm |
Dimensions of the materials | Width: 30-130 m Length: 50-200 m |
Packaging | Thin film composite, aluminum film, PE / PP composite |
Method of bagging | Push / pinch |
Packaging speed | 30-40 packs / minute |
Power supply rating | 380V 50 / 60Hz 6.5Kw |
Gas consumption | Recommended matching w-1.0 / 101 air compressor > 0.5-0.8 m3 / min 300-500L / min |
Machine dimensions | 3900*1190*1620 |
The total weight of the entire machine | 900Kg |
Supports non-standard customization | |
