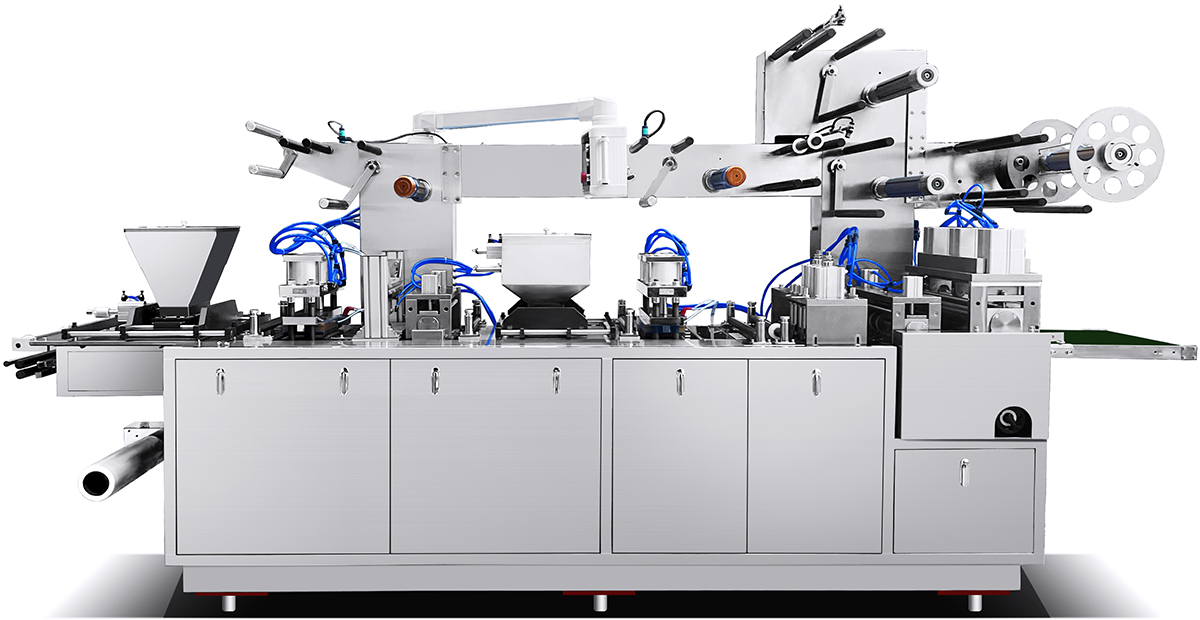

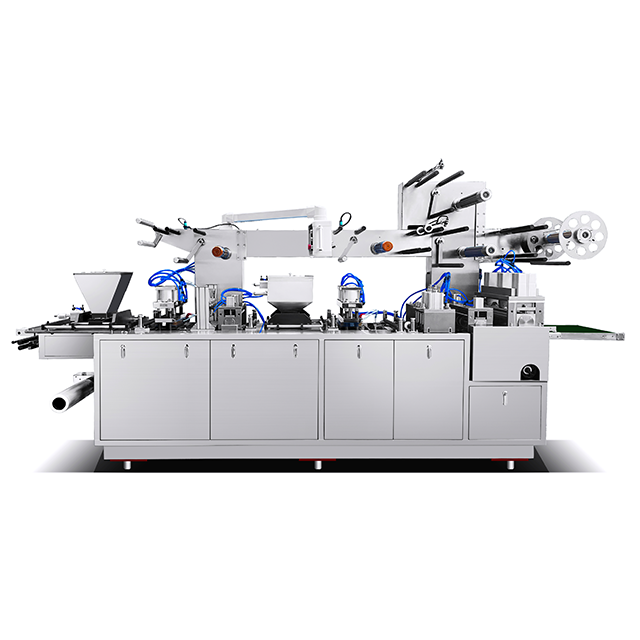

This machine works smoothly and continuously, and is suitable for the automatic filling and sealing of various heating powders, powders and powder materials.
Fully automatic production, color mark tracking, and production of various shapes.
The equipment can configure a lowerer according to different types of powders.

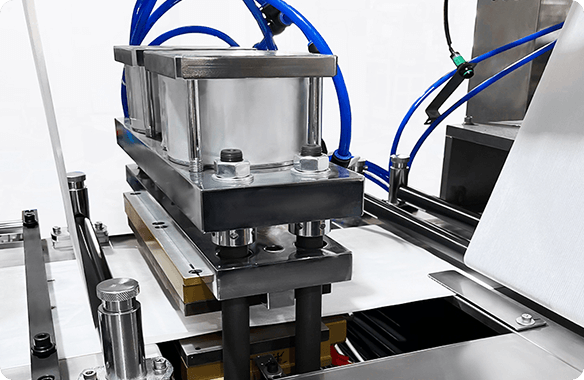

Intermittent sealing is better to ensure the aesthetics of the seal and avoid leakage.

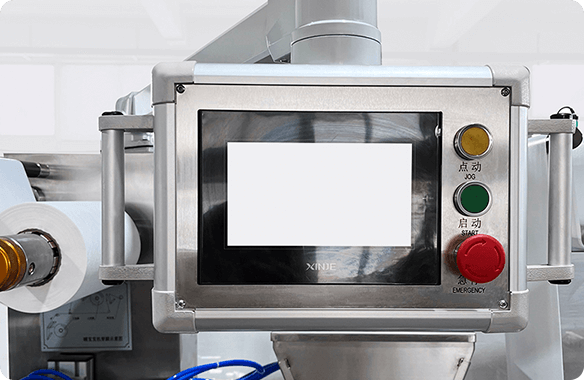

The machine is easy to operate, PLC touch screen, according to the packaging materials, product thickness and length to adjust the temperature and speed of packaging,A servo motor. With light, electricity, and gas control, the fault can self-diagnose and display clearly, and the operating system language can be used in Spanish, French, Korean, Russian, Japanese, Arabic and other local languages.
The whole machine is covered with stainless steel, which has good appearance and is easy to clean and durable, and the cost of operation and maintenance is low.

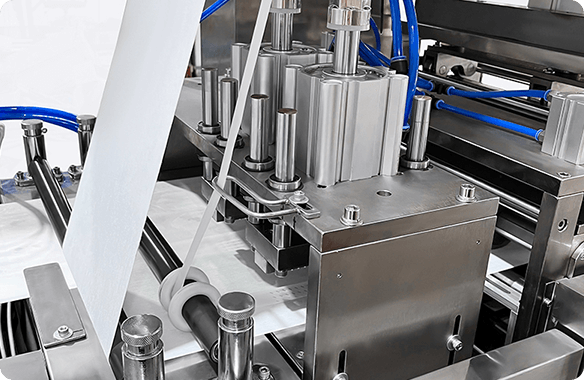

The servo uses a camwheel mode to ensure sealing effect and stability.
Model specifications | Knee patch packaging machine |
Production speed | 20-35 units per minute |
The maximum packaging size | Custom-made |
Minimum packaging size | Custom-made |
compressed air | 0.5-0.8pa |
Packaging | Compound material |
Type of material | Powder |
function | Filling, filling, packing, measuring, and other |
Mold cooling | 60 L/H of tap water or circulating water |
Total power of the power source | 5.5KW、380V |
Physical dimensions | 4100mm in length x 950mm in width x 2100mm in height |
The weight of the machine | Around 2000 kg |
