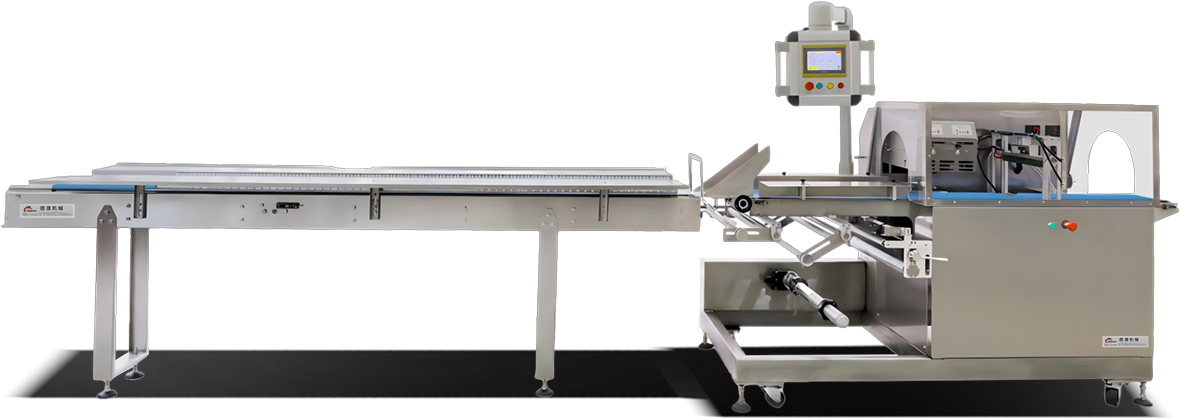

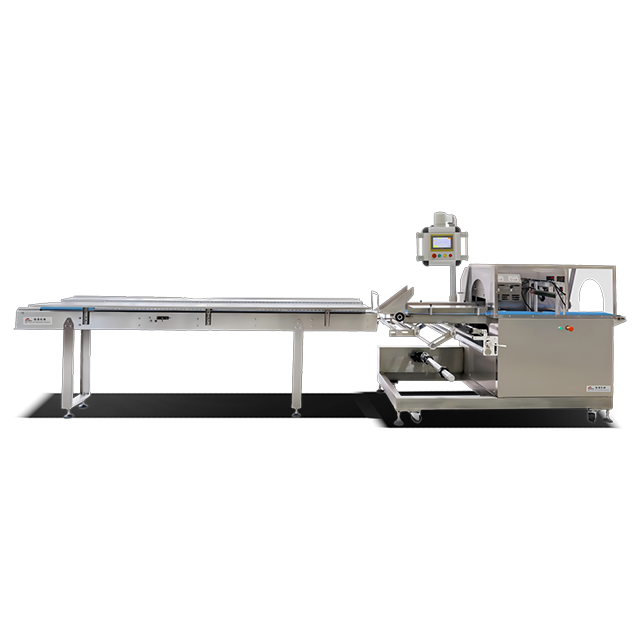

Reciprocating Bottom-Feed Pillow Packing Machine

Quantity:
Availability:





Inquire Add to Basket

Product Features

Product Advantages

1. The fully automatic reciprocating packaging machine drawings of our company adopt original design and manufacturing technology from Japan's TOKIWA, with over 15 years of packaging machine experience. The equipment's broussonetia papyrifera structure is reasonable, operation is stable and reliable, with high yield rate, making it particularly suitable for connection with production lines.

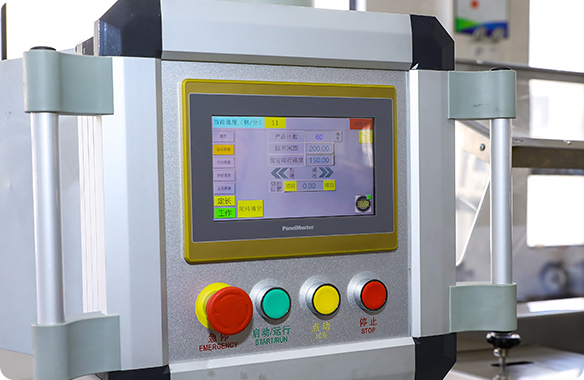

2. Our company's reciprocating packaging machine utilizes imported servo motors and controllers, featuring simple operation and long service life. By operating on a 7-inch large touch color screen, regulation can be achieved, significantly saving packaging materials. The packaging machine has low noise, fast packaging speed, higher yield rate and packaging aesthetics, offering more homo sapiens-oriented features.

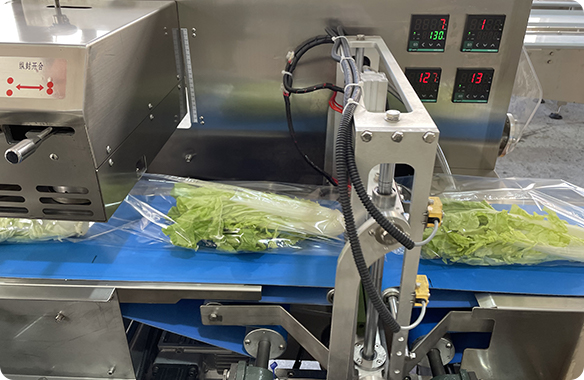

Product Details

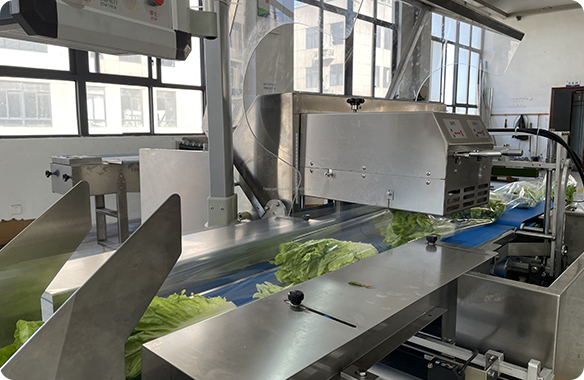

Product Sample

Product Parameters

Adjustable range of packaging material	L80-900mm W：80-300mm ;H：30-120mm
Packaging speed	40-80 bags\min（It varies depending on the length of the product and the packaging material）
External Dimensions	L 70000mm×W 1003mm×H 1670mm
Belt size	Length of feed belt：L5000mm×W 240mm Feed side band (two)L：2600 × W 90mm Back and forth with length：1000mm×250mm. Output length：L600mm× W 250mm。 Depth of shipping warehouse：90mm
Material thickness of belt	Original imported food grade anti-wear easy to clean PU belt Thickness 1.8X1.2
Packaging line speed	5 meters (low speed) -30M (high speed) / minute, variable frequency speed control
Maximum package width	680mm
Weight	Packaging Machine： 900KG;
Power and Voltage	220VAC\50Hz 3.0KW
Thickness of packaging material	25-60um
Applicable packaging materials	Bopp/pe、Cpp/pe、 Cpp/PA、BOPP、CPP Anti-fog film and color film and other packaging materials suitable for heat sealing...
Electric height adjustment of cross sealing device	250

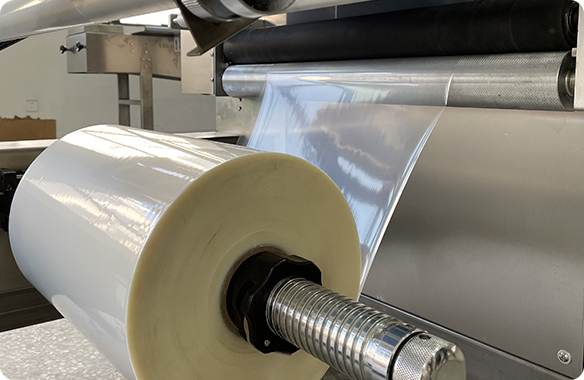

Package roll diameter	350mm
Four-stroke reciprocating hole drill	The four-station rotary knife punch replaces the transmission punch, offering faster and more efficient drilling. The machine's drilling speed synchronizes with packaging, preventing tearing caused by film pulling during drilling. Two holes are drilled with diameters ranging from 6 to 12mm.
