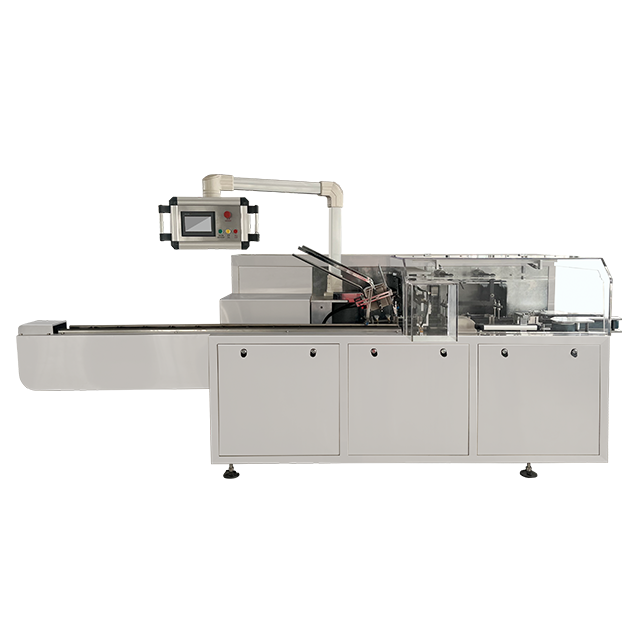

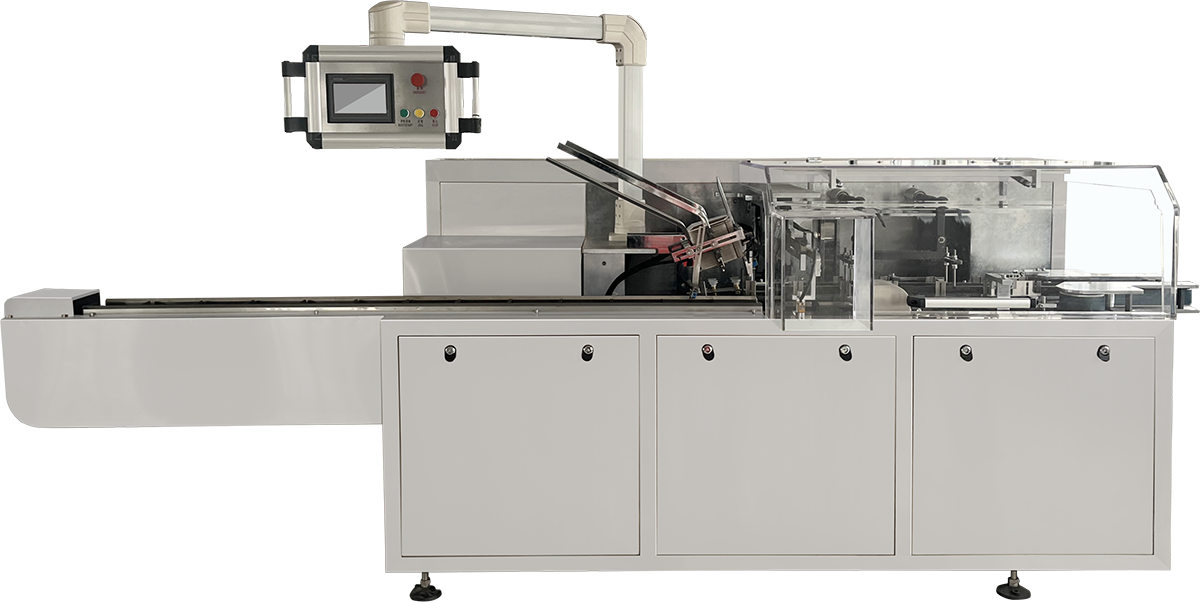

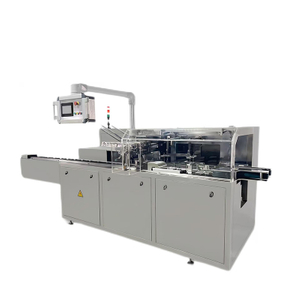

This product is suitable for the packaging of pharmaceuticals, food, cosmetics, motor appliances, electronics and daily necessities, and similar items.
It adopts PLC and an machine interface, stepless speed regulation by frequency variation.
It has the function of automatically completing the folding of the instruction manual, automatic opening of the carton, packing of items, printing batch numbers, sealing the box, etc. (also applicable to hot molten glue).
It can be joined together with aluminum plastic packaging machine, pillows packaging machine, filling machine, soap making machine, barcode printing machine (or regulatory code system), labeling machine, online weighing machine, 3D packaging machine and heat contracting packaging machine as well as a bundle packing machine and other production lines.
| Encasing Speed | 60-90 boxes/min | |
Box | Quality requirement | 250-350g/m2 (According to its dimension to confirm) |
Dimension range (L×W×H) | (70-200)mm×(30-90)mm×(15-60)mm can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 3800*1100*1900mm | |
Machine weight | 1500KGS | |
