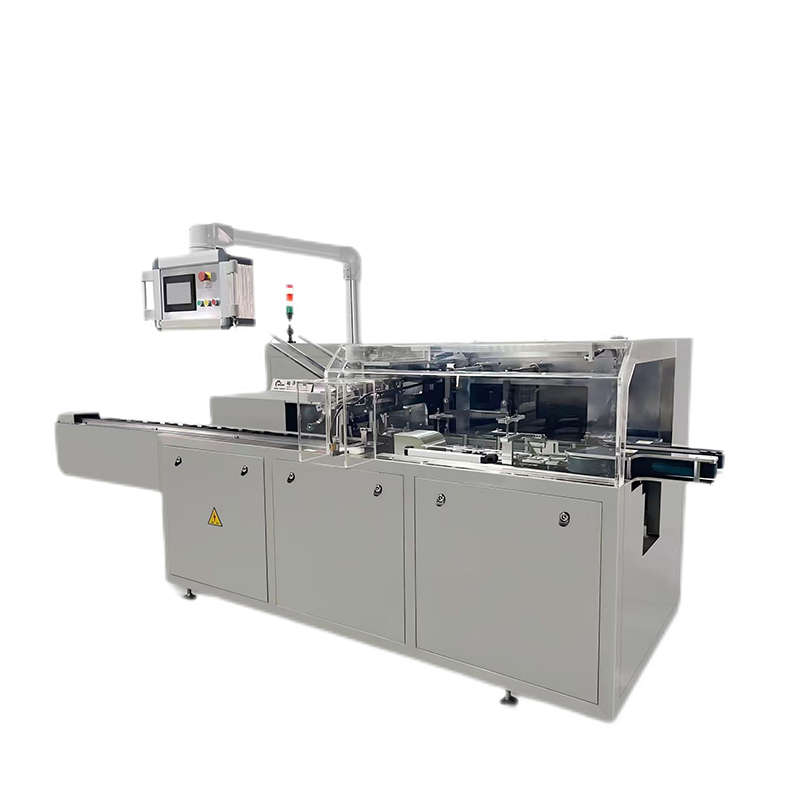

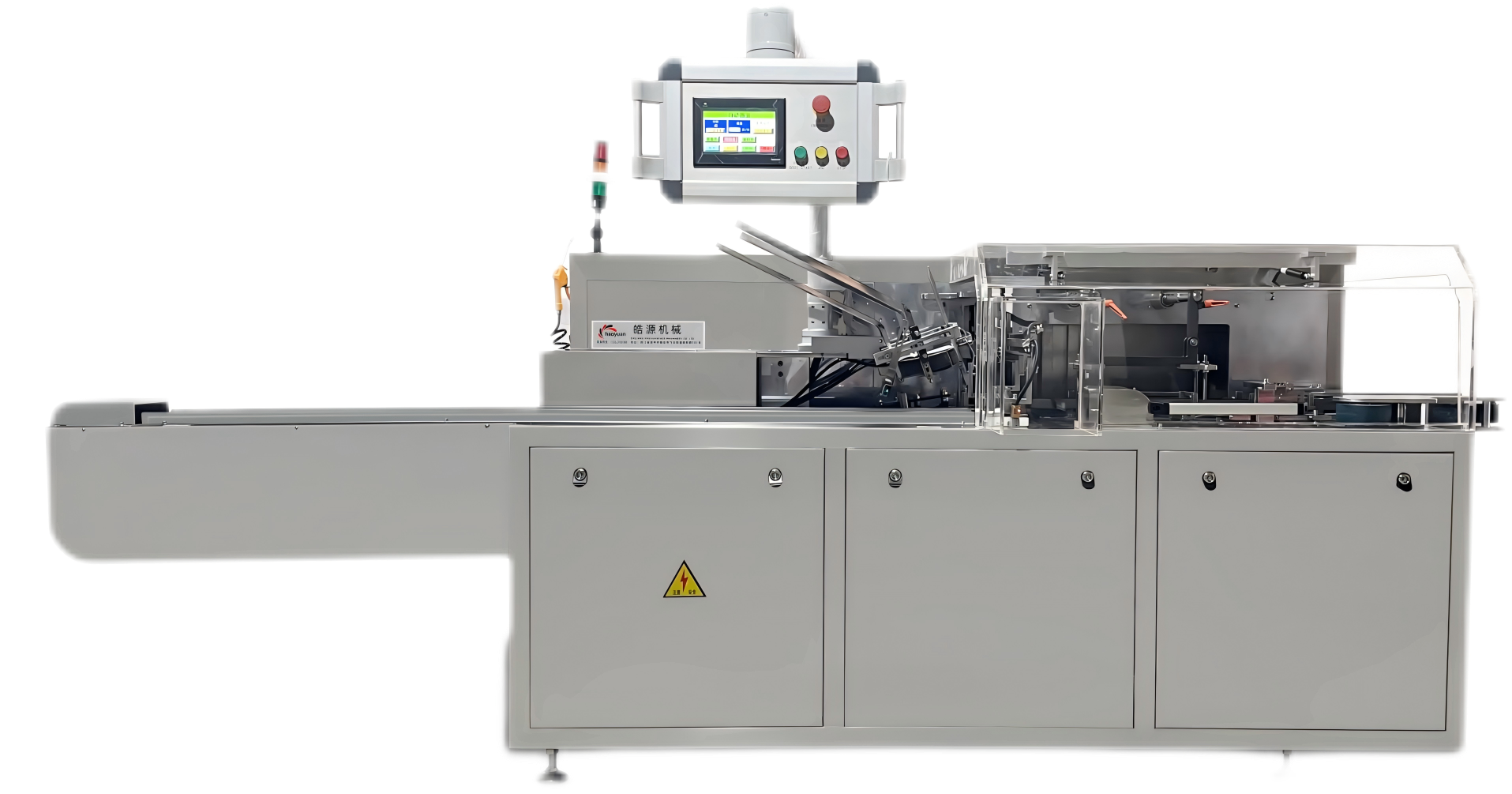

HY-100 automatic box packing machine can pack your product into carton box and close the box automatically.
The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively. It includes open cartons, insert the products into cartons, close the carton and discharge cartons automatically. It's suitable for food, cosmetic, commodity and so on. It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to be a full automatic packaging Line.






Model | HY-100 | |||
Encasingspeed | 60-80Boxes / min | |||
| Box Size(mm) | A | B | C |
MIN.-MAX. | 90-200 | 50-130 | 15-55 | |
Carton paper requirements | 250-300g/m3 | |||
Motor Power | 1.5KW | |||
Power Type | 220V 50Hz | |||
Machine noise | ≤80dB | |||
Gas source | 0.5-0.8 Mpa | |||
Air consumption | 120-160L/min | |||
Dimensions | 3620×1120×1850 mm | |||
Total Weight | 1000Kg | |||
