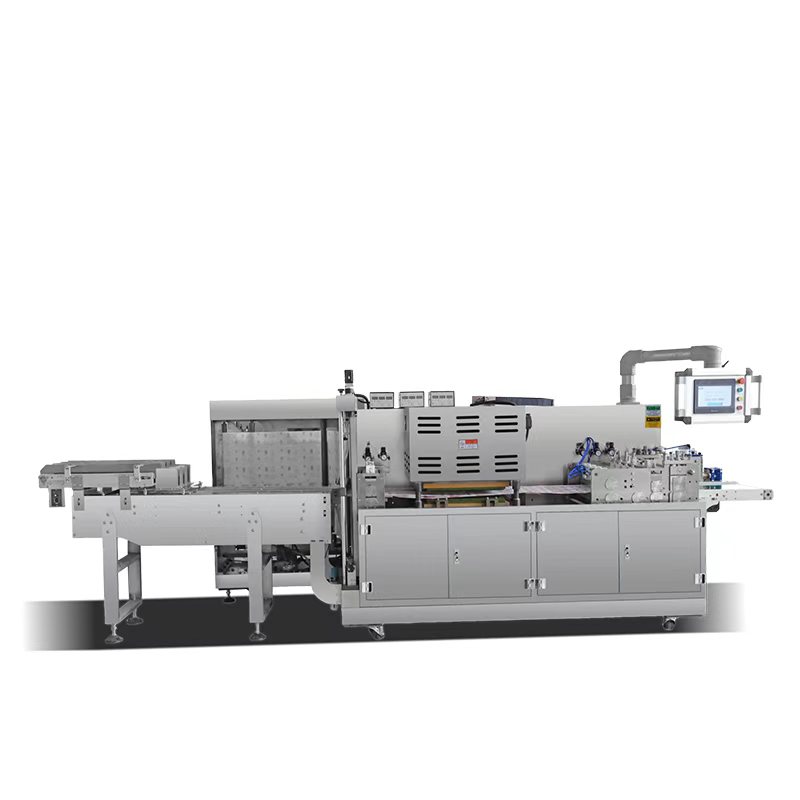

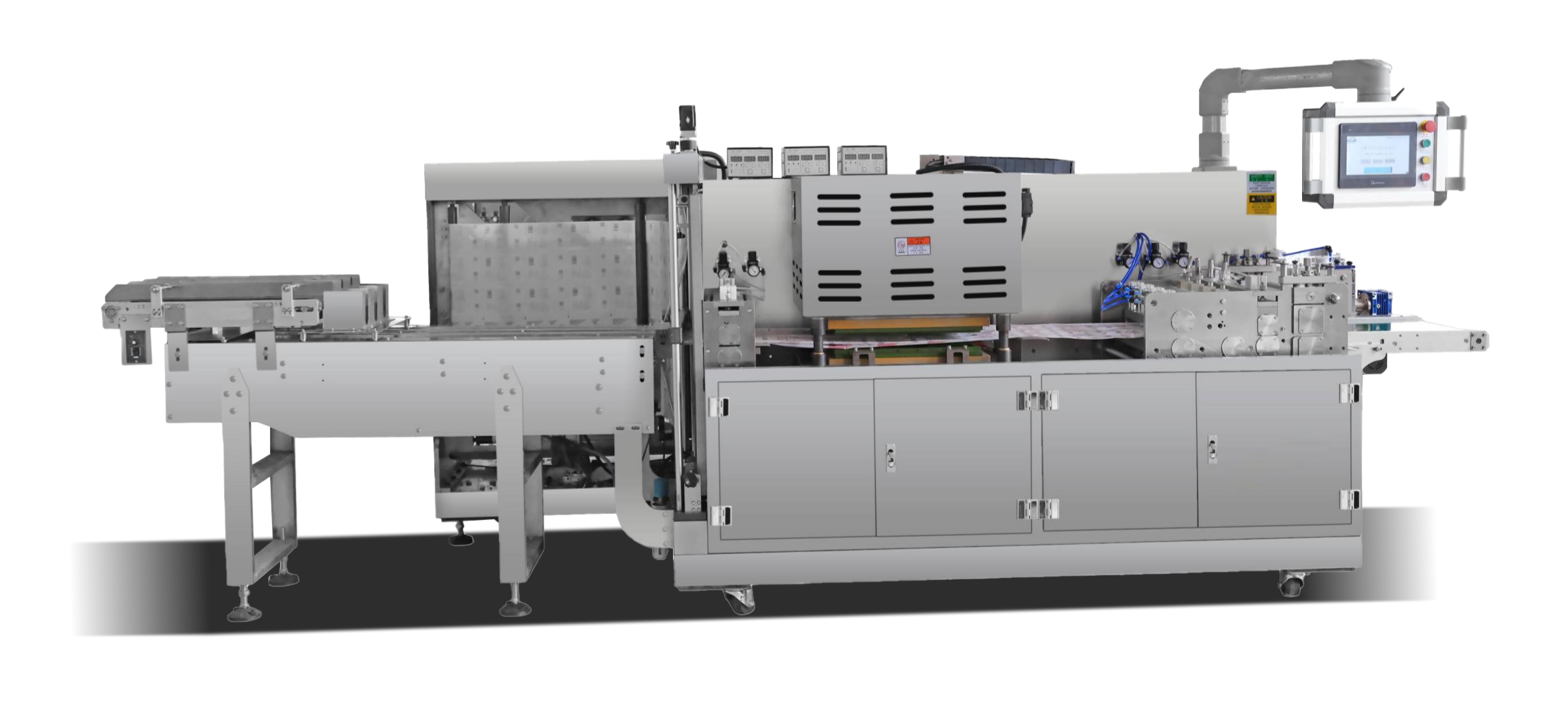

Reciprocating Four-sided Sealing Packaging Machine

1. The overall design features an open layout structure, with modular design that allows for easy visibility of workstations and convenient maintenance and adjustments. The design includes innovative and safe protective features for a secure operation environment.

2. It features temperature control monitoring for the heating plate, overload protection for the main motor, detection of material positions, control of material levels in the feeding storage bin, and automatic fault protection with shutdown.

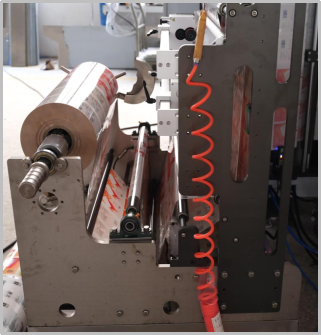

3. Enlarged roll film receiving platform; the largest film roll can have a diameter of 350, reducing downtime for the equipment and enhancing its overall utility.

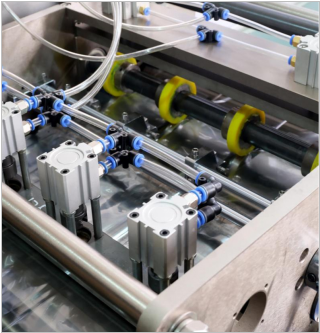

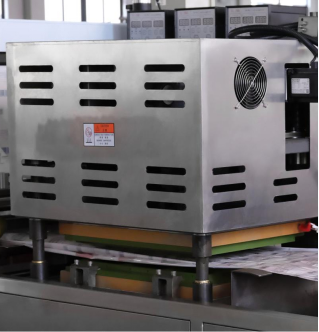

4. Mechanical heating seal: Utilizes six cylinders and mechanical components to create positive and gradual pressure, with mating upper and lower webbing plates for heating and sealing (i.e., both sides).

It can have dot-pattern webbing or line-pattern webbing (as per customer requirements).

Due to the equal stress, the bag panels become more flat, ensuring that the heat-sealing pressure of the packaging material is fully maintained, guaranteeing that the packaged products are airtight and sealed properly. This completely prevents any issues.

Overcome the shortcomings of the traditional roller-line thermal sealing structure, which results in inadequate sealing and air leakage.

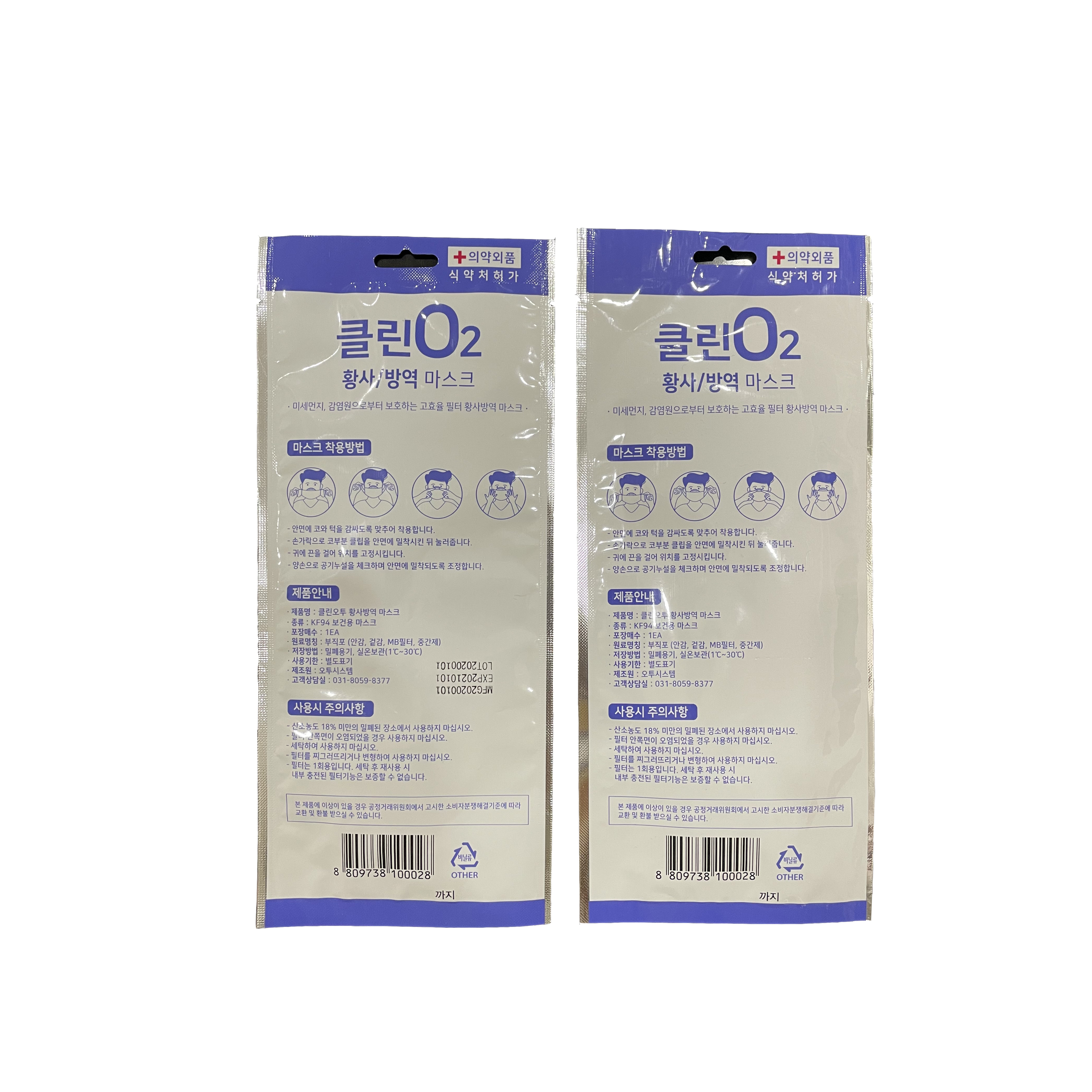

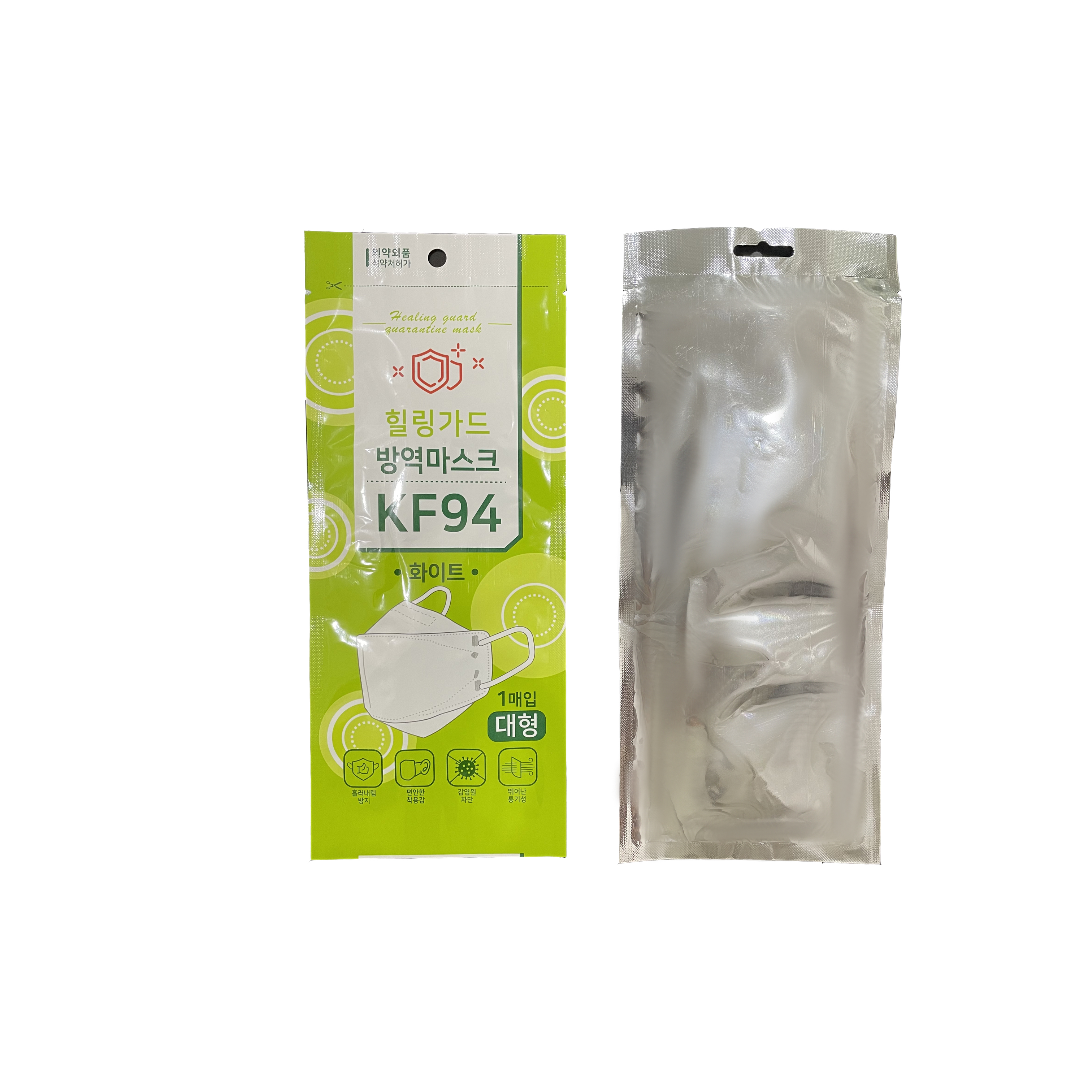

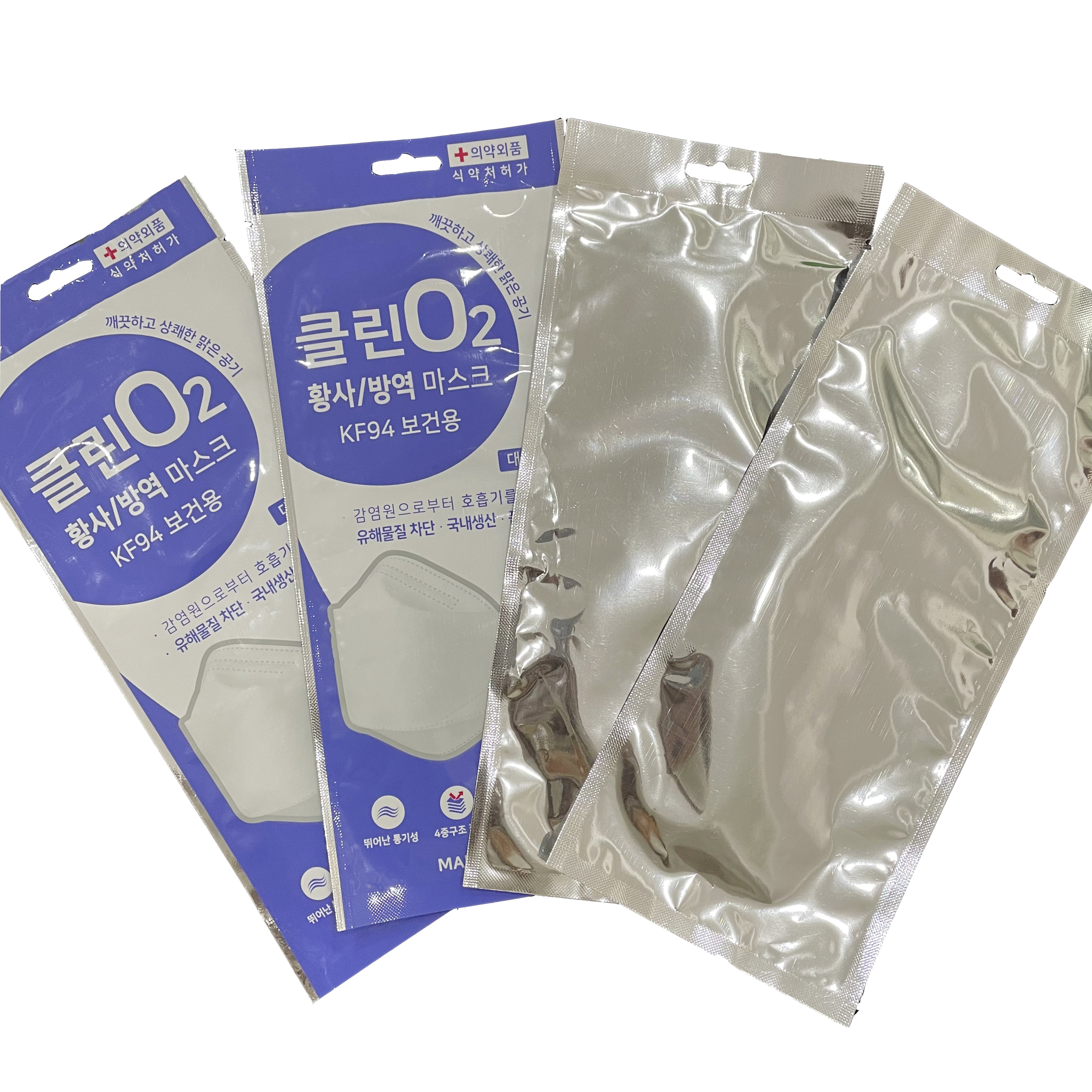

5. The tear-off seam and hanging holes are automatically punched, making your packaging products more visually appealing and elegant.

6. The design can be customized according to customer requirements, featuring single-channel, multi-channel, or three-channel configurations, with convenient adjustments in size and dimensions.

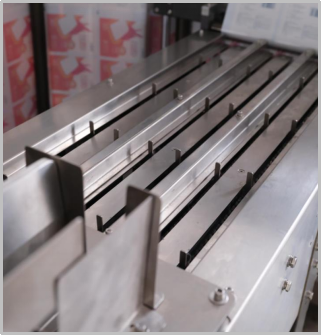

7. Various automated filling and material addition mechanisms, efficient and reliable. Can be adapted to multiple layout methods and the filling and material addition of irregular objects. (And can be customized according to the packaging items.)

Comes with a specialized feeding device.

8. All components in contact with the packaging material are meticulously crafted from high-quality stainless steel and non-toxic aluminum alloy materials. They feature advanced surface treatment processes.

The texture stands out.

9. Utilizes high-end imported PLC control, touchscreen operation, Chinese and English numeric displays, CNC speed adjustment, servo punching and cutting, servo material feeding and conveying, and servo traction.

The length of the towing device can be adjusted freely on the touchscreen within the range of the towing dimensions.

10. The finished product conveyor outputs items in an organized manner and is equipped with a waste collection device, making it easy to collect waste.

11. The entire machine features a modular connection design, allowing the main unit and the conveying section to be disassembled, making it easier to access elevators and workshops.

12. The combination of multiple patented technologies enhances the technological quality of the equipment.
