A misaligned bottle shrink wrap machine does not just slow down your daily production. It creates severe downstream bottlenecks on the floor. It also increases film waste and severely compromises package seal integrity. At the critical procurement stage, evaluating generalized spec sheets is simply not enough. Decision-makers must map machine capabilities directly to their specific bottling line throughput. You must align these technical details against your unique container shapes and material constraints. Relying on standard manufacturer claims often creates major compatibility issues later. Before you request quotes or commit to a specific vendor, you need a rigorous approach. Use this technical specification evaluation framework to properly validate your next machinery investment. We will explore exactly which metrics dictate real-world equipment performance. You will learn to match structural configurations to your facility layout seamlessly.
Throughput metrics must account for real-world variables: Always evaluate Bottles Per Minute (BPM) against your line’s surge capacity, not just baseline averages.
Configuration matters: Selecting between an L Type Shrink Wrap Machine and continuous motion sleeve wrappers dictates your maximum line speed and footprint.
Thermal control is critical: Precise tunnel airflow and temperature specs prevent film deformation and protect heat-sensitive liquid products.
Versatility adds ROI: Machines capable of handling individual bottles, multipacks, and Box heat shrink packaging offer higher long-term utility.
Evaluating a bottle shrink wrap machine starts with understanding actual production speeds. You cannot rely purely on theoretical maximums listed in brochures. Line dynamics constantly fluctuate during a standard operating shift. You must analyze throughput metrics against your worst-case production scenarios.
Always differentiate between a machine's sustained operational capability and its peak output. Sustained Bottles Per Minute (BPM) reflects what the equipment handles continuously. Peak BPM is merely a short burst capacity. You should look for a 15-20% capacity buffer in the specifications. This buffer helps the wrapper handle sudden line surges without jamming. When upstream liquid fillers clear temporary blockages, they often release a surge of containers. Your wrapping station must absorb this influx effortlessly.
Changeover times drastically affect your daily production volumes. You must carefully evaluate the specifications for tool-less changeover mechanisms. Specify acceptable minute-limits for switching between different bottle sizes. Moving from a 500ml PET bottle to a 1L glass container should not take hours. Equipment featuring digital readouts and quick-adjust hand cranks performs best here.
Finally, assess the infeed automation capabilities. Lane configurations dictate how bottles enter the wrapping zone. Check if the machine supports single-lane to multi-lane collation automatically. Some entry-level models require manual intervention to group bottles into packs. Fully automated collation systems use pneumatic dividers or oscillating guides. They arrange bottles into desired pack patterns without operator assistance.
Identify Baseline Speed: Calculate your average bottling line output per minute.
Add Surge Buffer: Multiply your baseline speed by 1.2 to find your required peak BPM.
Audit Changeovers: Count how many product switches you perform weekly.
Evaluate Infeed: Determine if your line requires powered lane dividers.
The physical structure of your packaging equipment dictates its functional limits. You must choose a sealing mechanism tailored to your specific product parameters. Different bottle clusters demand entirely different wrapping approaches.

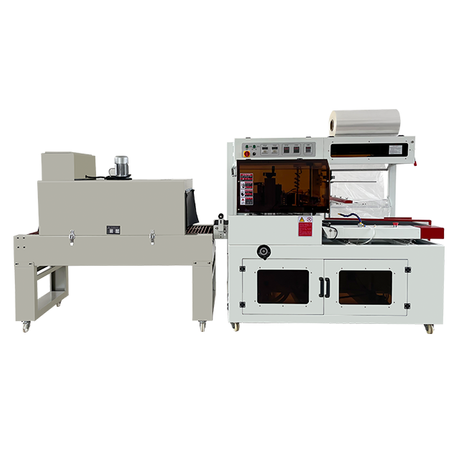

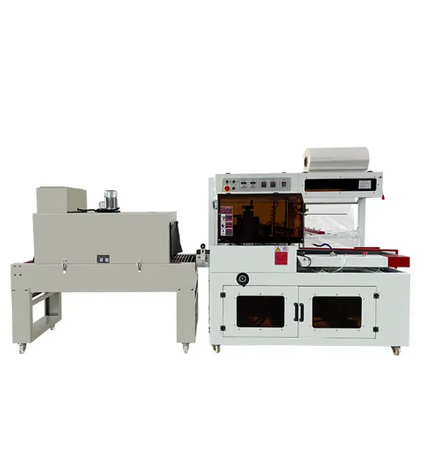

When reviewing L Type Shrink Wrap Machine specifications, focus on clearance limits. These L-bar sealers work exceptionally well for lower-to-medium speed bottling lines. They offer high versatility for varying product shapes. However, you must carefully check the seal bar dimensions against your tallest bottle. Insufficient vertical clearance causes frustrating film tears and mechanical jams. The sealing arm must clear the bottle neck comfortably before descending.
Sleeve wrappers, commonly known as bullseye wrappers, handle heavier loads. They are essential for heavy multipacks or high-speed beverage lines. You must verify the specifications regarding sealing jaw pressure and dwell time. High-speed sleeve wrappers rely on heavy-duty Polyethylene (PE) film. This thick film requires immense heat and pressure to seal correctly. If the jaw pressure is too low, the transit packages will split open during shipping.
Conveyor integration plays a pivotal role in machine stability. Check the equipment transfer point specifications thoroughly. Validate that the machine's infeed conveyor height is mechanically adjustable. The conveyor belt materials must reduce surface friction for unstable bottle types. Tall, narrow PET bottles tip over easily on aggressive grip belts. Look for smooth, modular plastic belting for optimal container stability.
Structural Configuration Comparison Chart | |||
Machine Configuration | Ideal Production Speed | Primary Film Used | Best Application |
|---|---|---|---|
L Type Sealer | Low to Medium (10-30 packs/min) | Polyolefin (POF) | Individual bottles, light display packs |
Sleeve Wrapper | High (30-80+ packs/min) | Polyethylene (PE) | Heavy water multipacks, transit trays |
Continuous Side Sealer | Very High (80+ packs/min) | POF / PE | Infinite length retail display packaging |
Heat application determines the aesthetic and structural quality of the final package. A poorly calibrated thermal tunnel destroys good film and damages liquid products. You must scrutinize the heating specifications before purchasing.
A high-quality shrink wrap machine must feature independent heating zones. Evaluate the PID (Proportional-Integral-Derivative) controller specifications carefully. PID controllers guarantee precise temperature maintenance across the entire tunnel length. Basic thermostats cause drastic temperature swings. These swings lead to inconsistent film shrinkage. Precise thermal control is especially critical when packaging heat-sensitive beverages.
Airflow distribution is equally important as raw heat generation. Look for equipment boasting 360-degree adjustable airflow specifications. Baffles must direct hot air accurately toward the bottom and sides of the bottles. Uneven air distribution causes unsightly "dog ears" on package corners. It also creates burn holes or uneven shrinkage around complex bottle necks.
Never overlook the cooling phase. Verify the inclusion of forced-air cooling fans at the tunnel discharge. Fast cooling sets the heated polymer film instantly. This rapid setting prevents wrapped bottles from sticking together on the outfeed conveyor. It also hardens the package before robotic palletizers handle the heavy multipacks.
Common Thermal Mistakes to Avoid:
Ignoring PID controller requirements for heat-sensitive liquids.
Operating tunnels with fixed, non-adjustable internal air baffles.
Skipping exit cooling fans, leading to fused plastic on conveyors.
Running the conveyor too fast for the specified tunnel length.
Packaging films possess distinct thermal and physical characteristics. Your machine must physically accommodate the specific polymers your packaging requires. Using the wrong film on a specialized machine causes rapid component wear.
Ensure the manufacturer spec sheet explicitly lists supported film types. It should mention compatibility with Polyolefin (POF) for retail display packaging. POF offers high clarity and a crisp finish for individual bottles. The specs should also list Polyethylene (PE) for heavy transit packaging. PE provides the tensile strength needed to carry a 24-pack of water bottles.
Always check the thickness thresholds measured in microns. Determine the minimum and maximum film gauge the machine can cleanly cut and seal. Using thick 60-micron PE on a machine optimized for thin 15-micron POF is disastrous. It will cause premature sealing blade wear and frequent incomplete cuts. Conversely, applying high heat to thin POF on a PE-rated machine vaporizes the film.
You must also evaluate the film waste ratios. Review the scrap rewind system specifications if you use L-bar or side-seal machines. A highly efficient scrap rewind wheel minimizes plastic offcuts. This reduces consumable usage over the machine's lifespan. It also prevents loose film tails from tangling in the conveyor drive shafts.
Modern production facilities demand highly versatile packaging solutions. Your equipment should handle various container formats without requiring entirely new modules. Versatility ensures your line adapts to changing retail demands.
Determine how the machine handles trays and unsupported multipacks. Can the machine collate unsupported bottles effectively? Some basic wrappers strictly require a corrugated pad or tray underneath the bottles. Advanced systems feature flight bars and side guides. These guides stabilize loose bottles as they move through the film curtain.
You should also evaluate clearance height and tunnel width for Box heat shrink packaging. A versatile machine transitions seamlessly from wrapping bottle multipacks to shrinking fully boxed inventory. Retailers frequently demand shrink-wrapped boxes for shelf displays. A wider tunnel aperture accommodates these larger cardboard boxes easily. Check the maximum product dimensions listed in the manual.
Sensor adaptability determines how well the machine sees your products. Check the photo-eye specifications thoroughly. Standard sensors often fail to detect dark, transparent, or highly reflective bottles. Transparent water bottles cause standard optical sensors to misfire continually. Dark boxes absorb sensor light, causing mistimed sealing jaw drops. You need multi-spectrum or ultrasonic sensors to trigger the cutting mechanisms accurately.
Installing a heavy industrial packaging machine requires thorough facility preparation. You must validate structural and utility specifications before the equipment arrives on your loading dock. Ignoring these realities causes severe installation delays.
Validate the physical footprint and spatial requirements first. You cannot just measure the machine's static dimensions. You must account for the required operational clearance. Maintenance teams need physical access to open electrical panels and swap wear parts. Operators need ample space to maneuver heavy film rolls during changeovers. A cramped layout leads to unsafe working conditions and slower maintenance routines.
Power and pneumatic requirements dictate your utility readiness. Check the machine's voltage, phase, and amp draw specifications carefully. Industrial wrappers typically require 220V/3-Phase or 480V power supplies. Next, verify the CFM (Cubic Feet per Minute) requirements for pneumatic sealing jaws. Ensure your facility's existing air compressor can handle this continuous load. Starving a pneumatic cylinder of air results in weak, incomplete film seals.
Finally, ensure the machine specifications explicitly state compliance with regional safety standards. Look for OSHA, CE, or UL-listed electrical panels. Heavy machinery must feature interlocked safety doors and Lexan guarding. These magnetic interlocks immediately cut mechanical power if an operator opens a guard door. Never compromise on safety specifications.
Sourcing the right bottle shrink wrap machine requires looking far past basic speed claims. You must deeply analyze thermal control systems, material compatibility, and mechanical configurations. Understanding the differences between L-bar sealers and sleeve wrappers ensures you match the machine to your production volume. Proper evaluation prevents downstream bottlenecks and eliminates material waste.
Your next step is to audit your current packaging bottlenecks closely. Compile a comprehensive list of your exact bottle dimensions and your required sustained BPM. Reach out to vendors with these exact specifications in hand. Demand a factory acceptance test (FAT) using your own liquid products and specific film rolls. You must witness the machine performing under real conditions before finalizing the purchase order.
A: POF (Polyolefin) is a thin, high-clarity film used for retail display packaging. It works best for individual bottles or high-end multipacks. PE (Polyethylene) is a thicker, highly durable film used for heavy transit packaging. It easily supports heavy loads like a 24-pack of water bottles. Machine sealing jaws must be properly spec'd for the correct film type to prevent blade damage.
A: This typically indicates a mismatch between the conveyor speed and the tunnel temperature. It can also result from poor airflow distribution inside the heating chamber. Checking the PID controller specifications and adjusting the internal baffle settings usually resolves this issue. Ensuring the cooling fans run at the exit also helps.
A: Generally, no. L-type machines are excellent for versatility and lower production volumes. For high-speed, continuous bottling lines producing over 30-40 packs per minute, they fall short. A continuous motion side sealer or a high-speed automatic sleeve wrapper is strictly required for those higher volumes.
A: Prioritize machines featuring highly accessible wear parts. Teflon tape and sealing blades should be easy to reach without special tools. Look for self-lubricating drive chains to reduce daily maintenance tasks. Additionally, select equipment using off-the-shelf PLC components rather than proprietary, closed-system electronics to ensure faster repairs.
